Texture Analysers

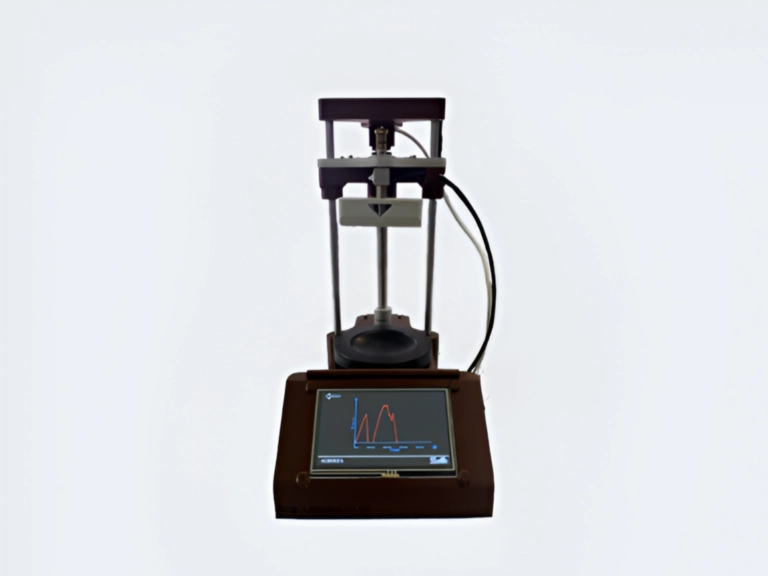

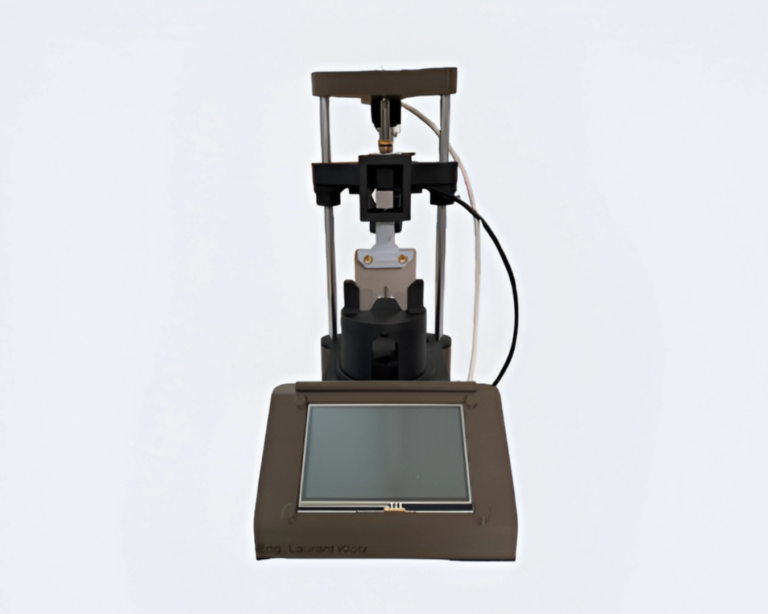

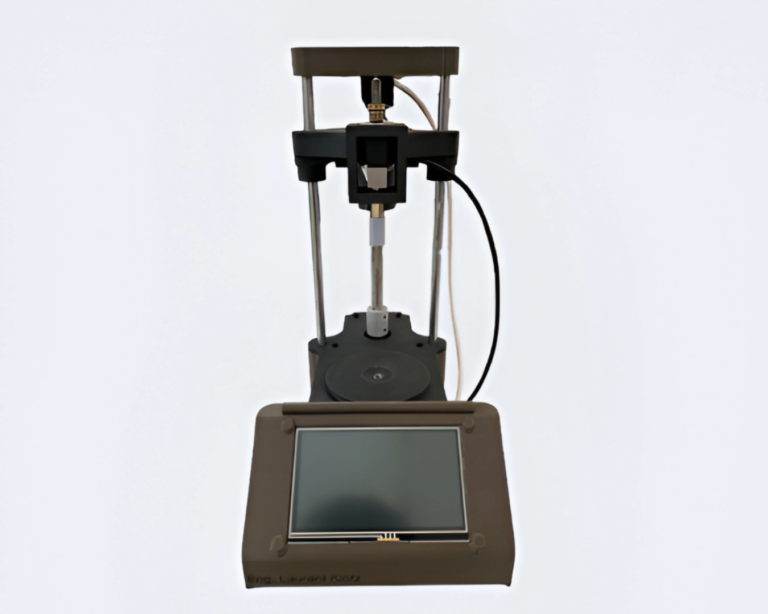

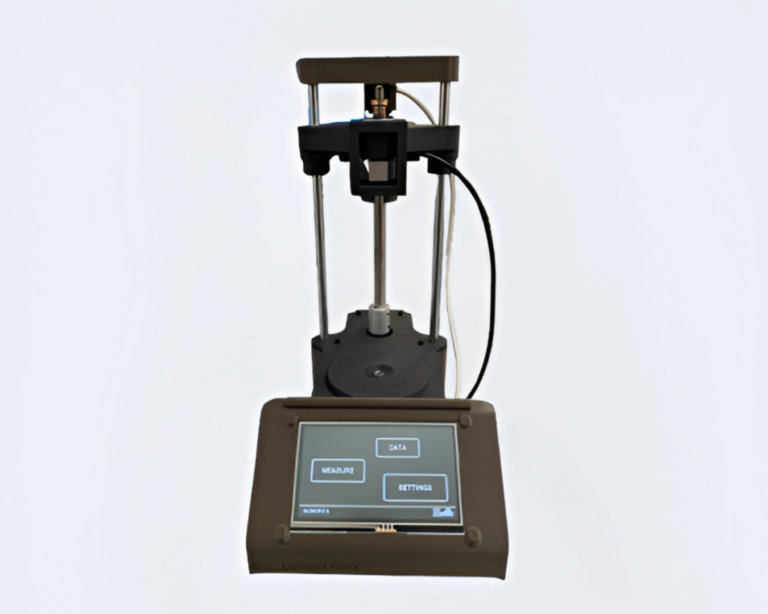

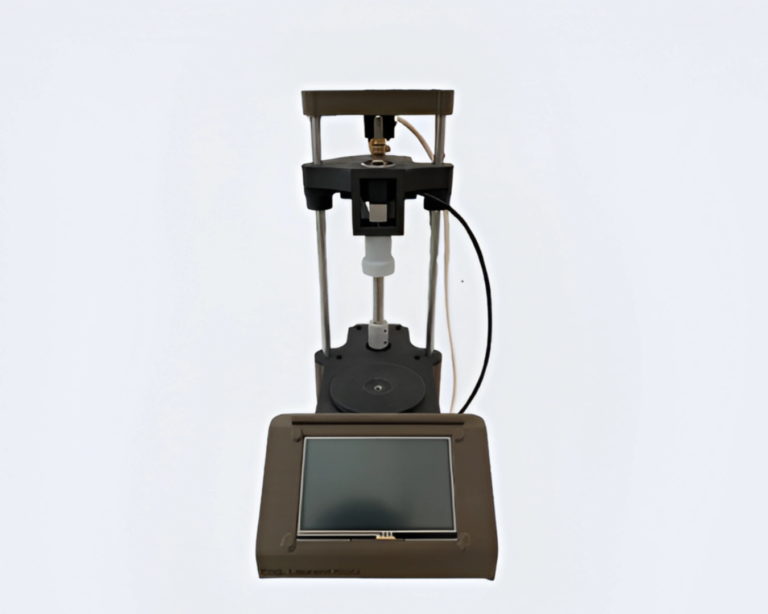

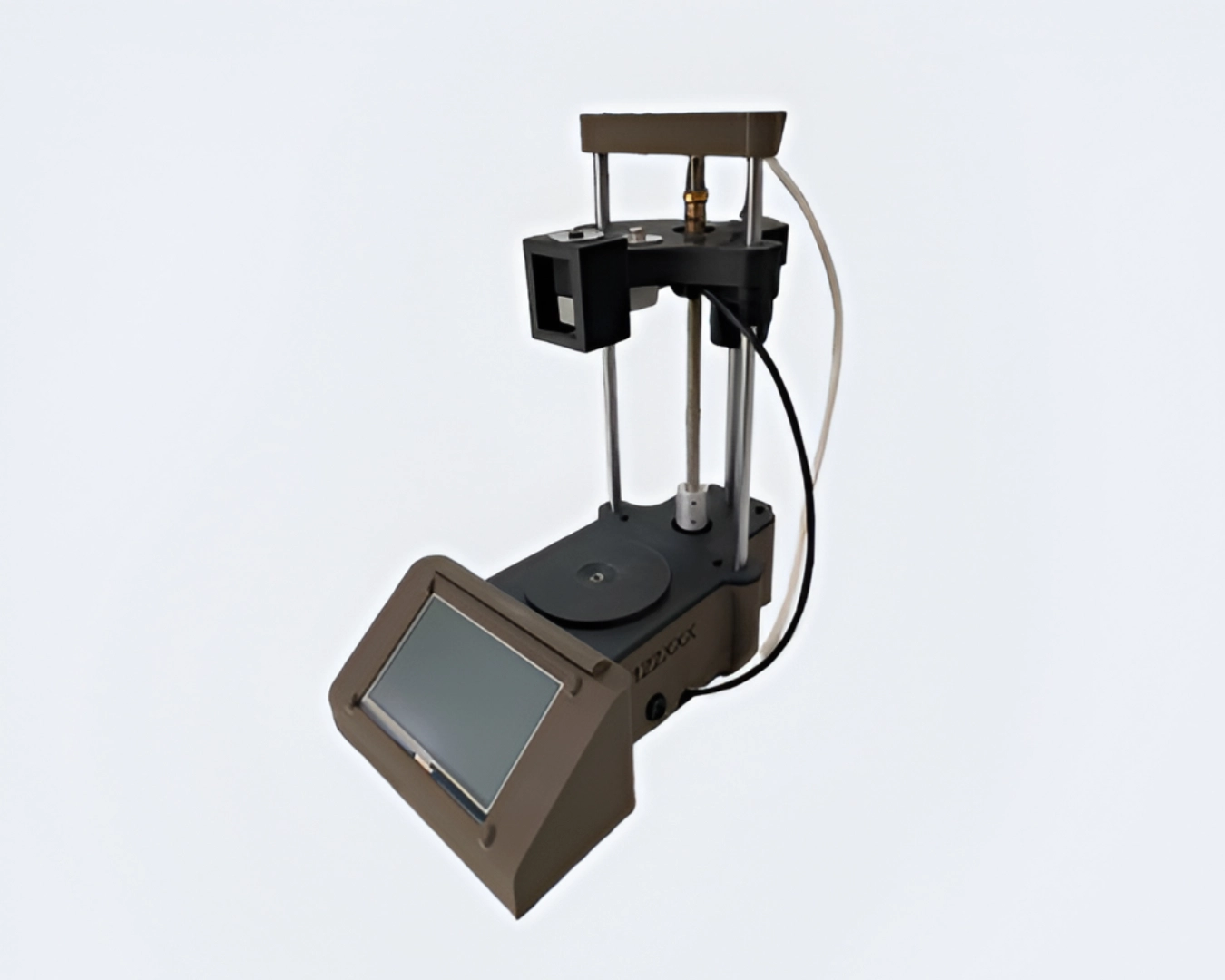

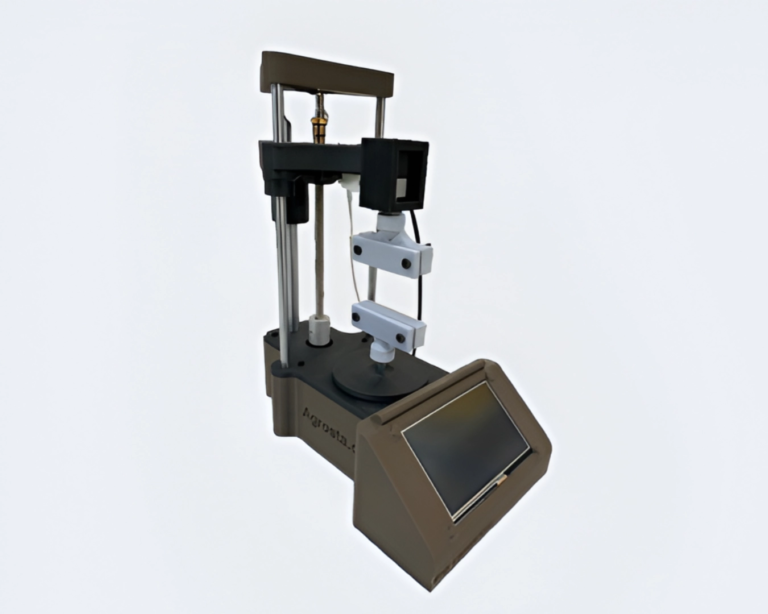

Texture Analyzer AGROSTA®BELLE

A precise, versatile texture analyzer for food, pharmaceutical, and other industries, with a large touchscreen, USB or Bluetooth connectivity, and multiple testing modes. Ideal for detailed texture profiling and continuous data collection.

The AGROSTA®Belle2 (2024 version) is a powerful texture analyzer, built for precision in food, pharmaceutical, and general material testing. With a durable design made from PLA plastic and micro carbon fiber, it’s both robust and lightweight.

Description

All in one Texture Analyzer

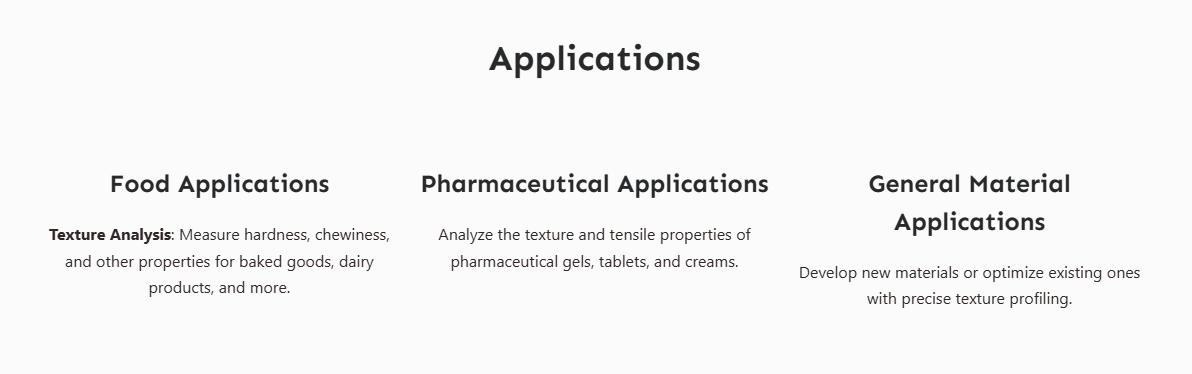

The AGROSTA®Belle2 (2024 version) is a powerful texture analyzer, built for precision in food, pharmaceutical, and general material testing. With a durable design made from PLA plastic and micro carbon fiber, it’s both robust and lightweight. Belle2 can handle any texture testing standard and is simple to operate, delivering accuracy and versatility across various applications. Equipped with a large 4.3” color touchscreen and dual-core microcontroller (one core dedicated to measurements, the other to movement and display), Belle2 is designed for continuous use in demanding environments.

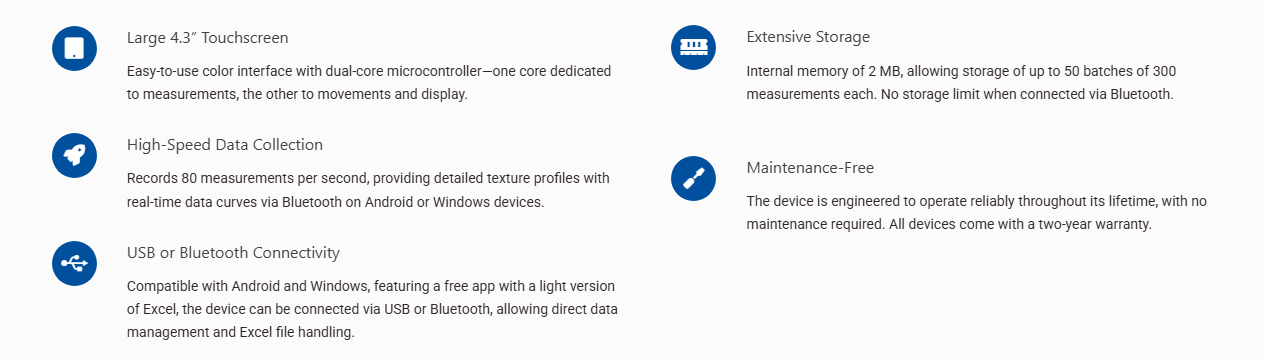

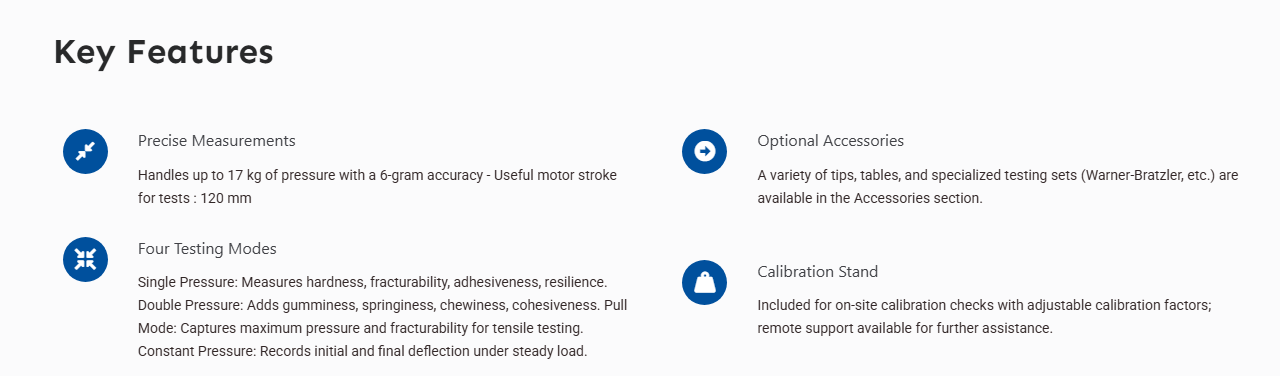

Key Features:

  • Four Testing Modes:

    • Single Pressure: Measures hardness, fracturability, adhesiveness, resilience.
    • Double Pressure: Adds measurements for gumminess, springiness, chewiness, cohesiveness.
    • Pull Mode: Measures maximum pressure and fracturability for tensile tests.

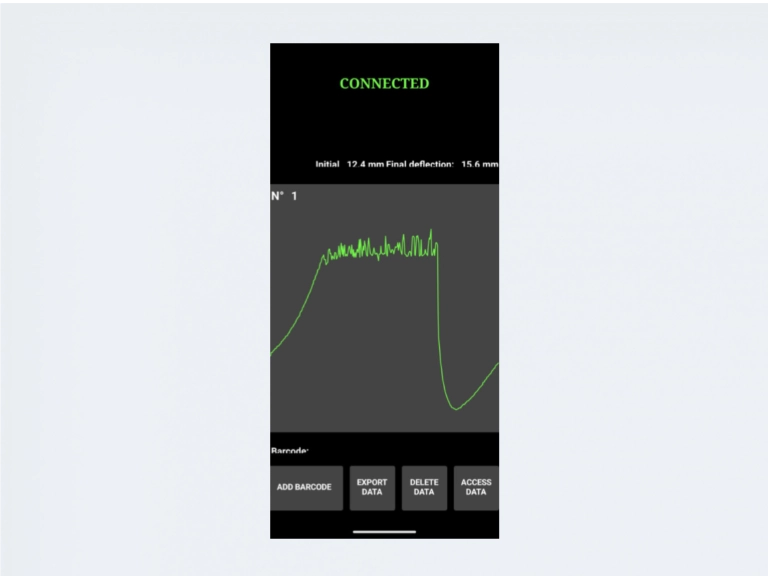

    • Constant Pressure: Records initial and final deflection for steady-load applications.
  • Precise Measurements: Capable of up to 17 kg pressure with 6-gram accuracy, using a high-quality load cell.

  • High-Speed Data Collection: Records 80 measurements per second, allowing detailed texture profiling. Displays real-time curves via USB or Bluetooth on Android or Windows devices.

  • Extensive Memory: Stores up to 50 batches with 300 measurements each in its 2 MB internal memory. No storage limitation when connected to computer.

  • Calibration Stand: Included for on-site calibration checks and adjustments, with remote support available from the manufacturer.

  • Flexible Connectivity: Connects to Android or Windows via USB or Bluetooth for continuous data management. The Windows app includes a light version of Excel, allowing data creation, modification, and analysis directly in the app.

Accessories: A wide range of optional accessories:

  • Specialized Testing Sets: Warner-Bratzler set for shear testing, and extrusion systems for various testing needs, Fruits & vegetables set
  • Additional Tips and Tables: Options for flat, hemispheric, and spheric tips, with sizes up to 50 mm, and tables for specific applications.

Pricing:

  • Base unit: €3900, including worldwide express shipping.
  • Optional Durofel module and additional accessories are available in the Accessories section.
Technical specifications

Penetrometers and Surface Deformation Testers

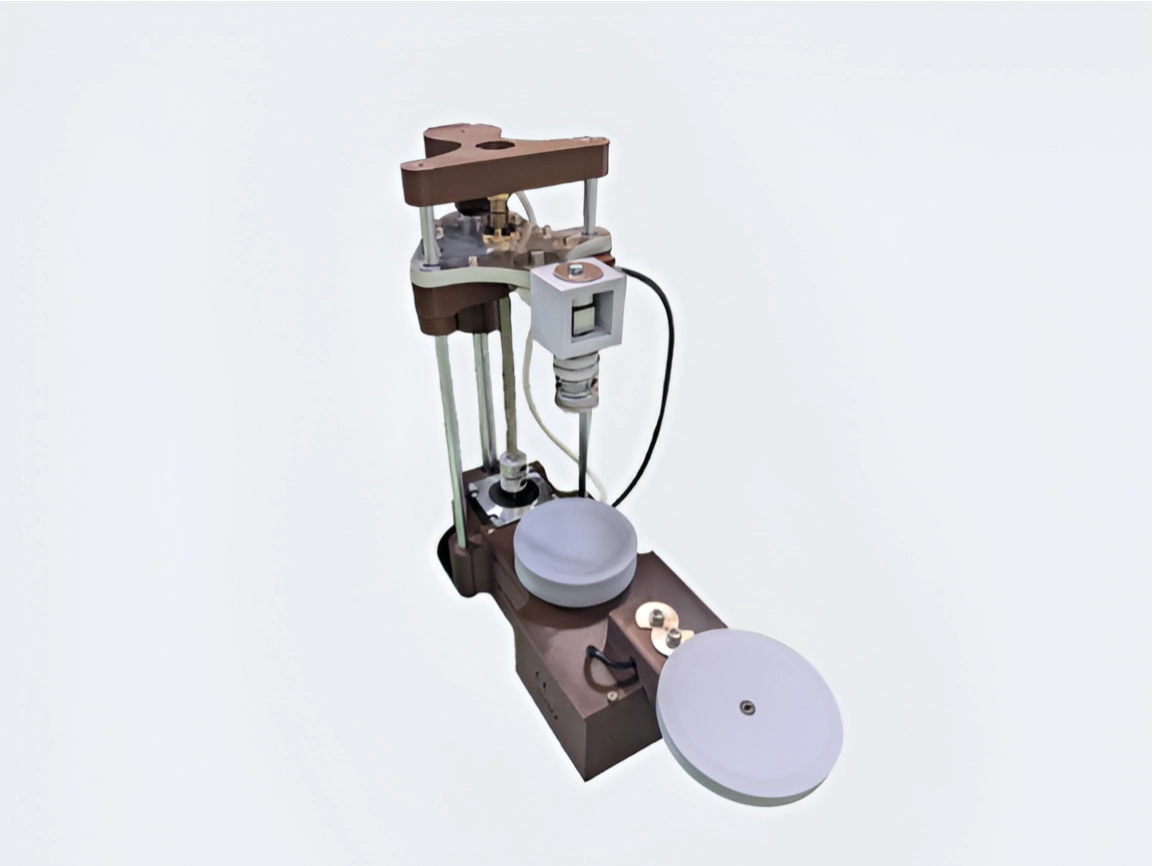

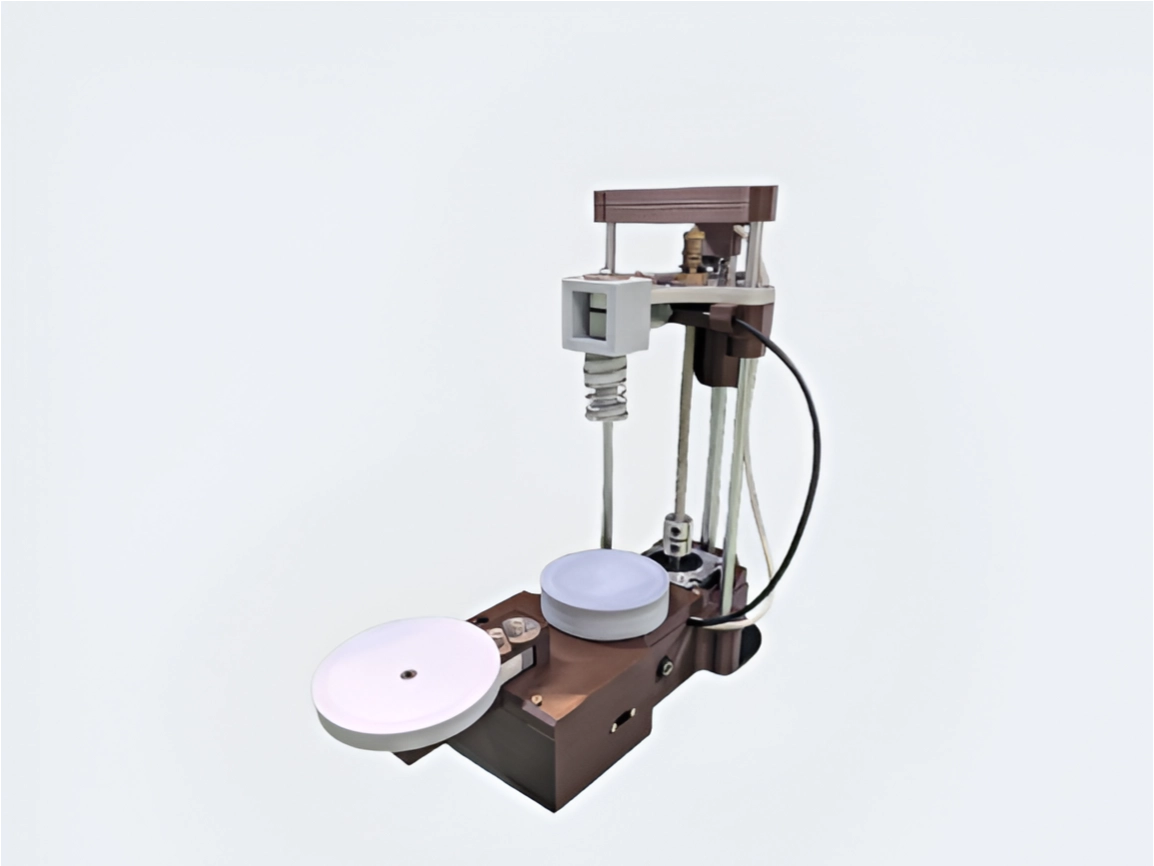

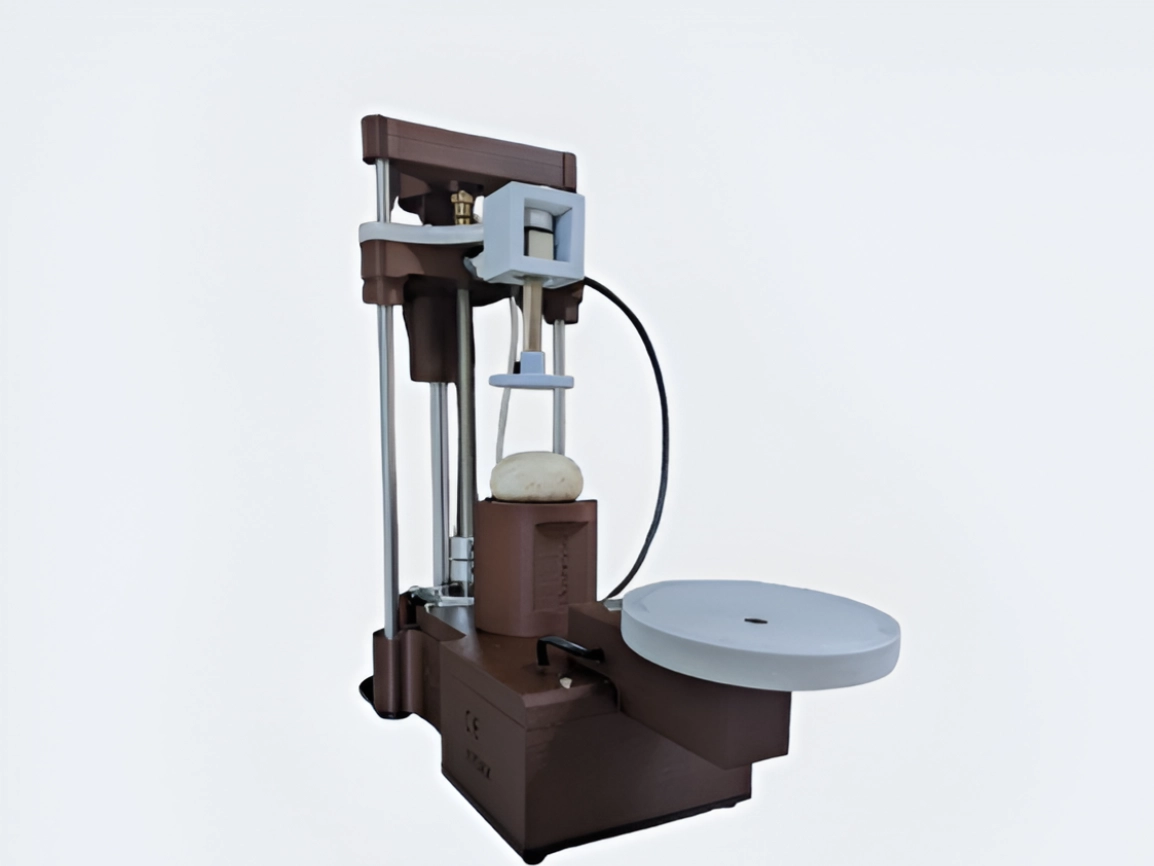

Fruits Texture Analyzer AGROSTA®FRUITLAB

texture analyzer for any fruit or vegetable, functioning as both a penetrometer and deflection measurement device. Automatically measures weight and size, with customizable parameters via Windows softwar, pharmaceutical, and other industries, with a large touchscreen, USB or Bluetooth connectivity, and multiple testing modes. Ideal for detailed texture profiling and continuous data collection.

Description

Fruits Texture Analyzer

The AGROSTA®FruitLab is a multi-functional analyzer designed for texture analysis, weight, and size measurement of a wide variety of fruits and vegetables, including apples, citrus fruits, avocados, bananas, carrots, and potatoes. Equipped with advanced Windows-compatible software, it supports both penetrometry and deflection measurements, making it an essential tool for labs focused on post-harvest quality control.

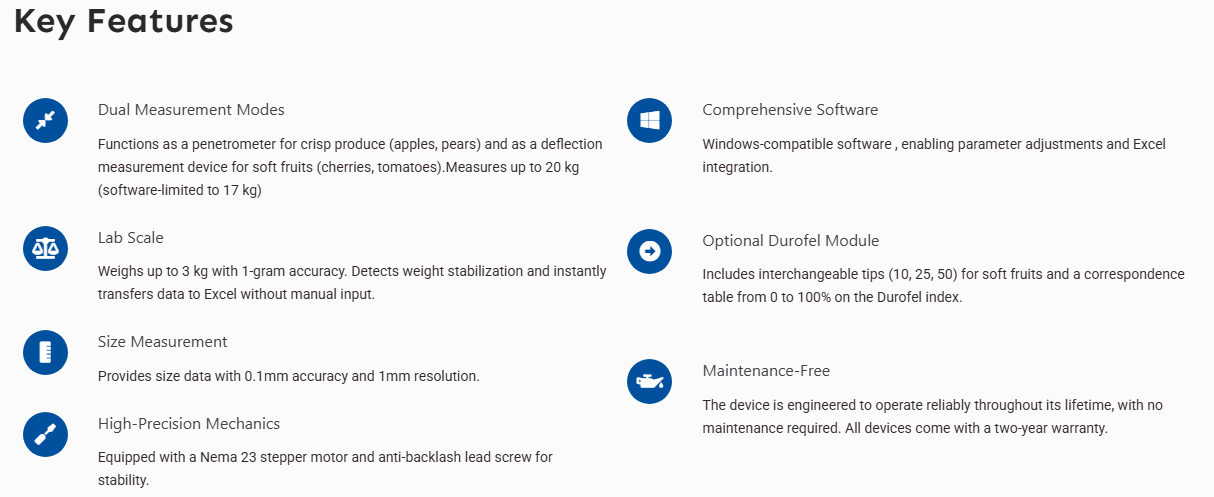

Key Features:

  • Texture Analysis:

    • Load Cell Capacity: 20 kg (limited to 17 kg by software) with 1-gram precision and resolution.
    • Customizable Measurement: Measures in grams or pounds, with adjustable speed and stroke settings.
    • High Precision Mechanics: Nema 23 stepper motor and anti-backlash lead screw for stable and accurate measurements.
    • Spring System: Maintains fruit stability on the table during testing, preventing samples from lifting with the tray.
  • Lab Scale:

    • Capacity: 3 kg with 1-gram accuracy.
    • Automatic Weight Detection: Instantly records stable weight values directly to Excel, with no need to press a button.
  • Size Measurement:

    • Accuracy: 0.1mm with a resolution of 1mm, providing detailed size data for each sample.

Included Accessories:

  • Measurement Tips: Comes with two standard tips (8mm² and 11mm²) for penetrometry and deflection measurements, with additional tip options based on specific requirements.

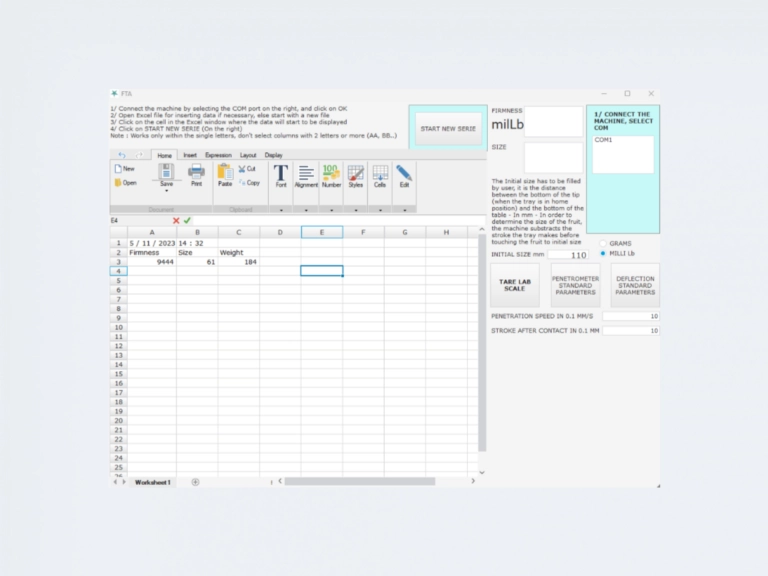

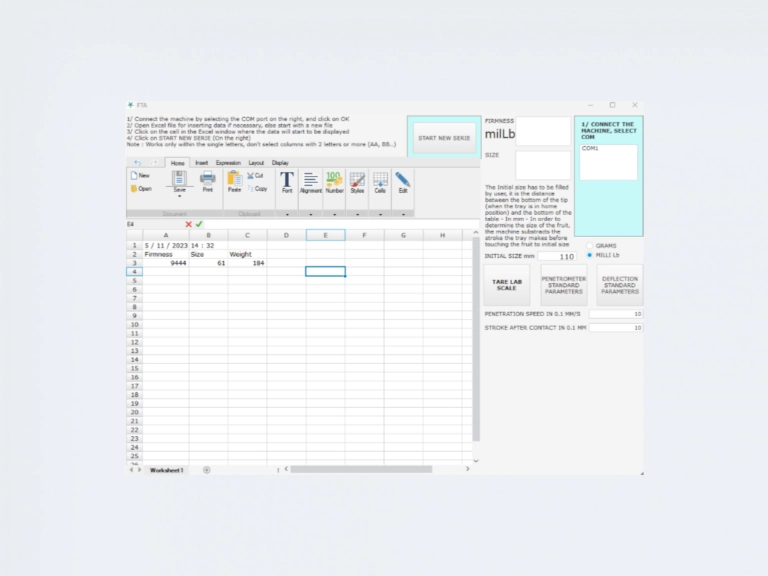

  • Complete Software for Windows: Pre-installed on a USB stick, the software includes a free license for full customization, enabling parameter adjustments (speed, stroke, unit) and data export to Excel.

Optional Durofel Module: An optional Durofel module is available for testing soft fruits and vegetables, featuring three interchangeable tips (10 for nectarine, 25 for cherry, 50 for strawberry) and a table linking pressure to the Durofel index (0 to 100%).

Technical specifications

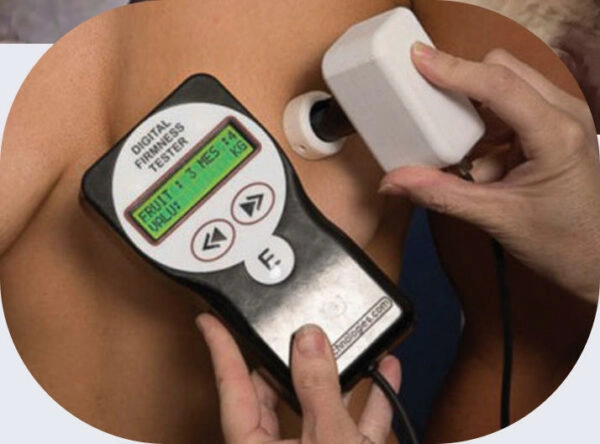

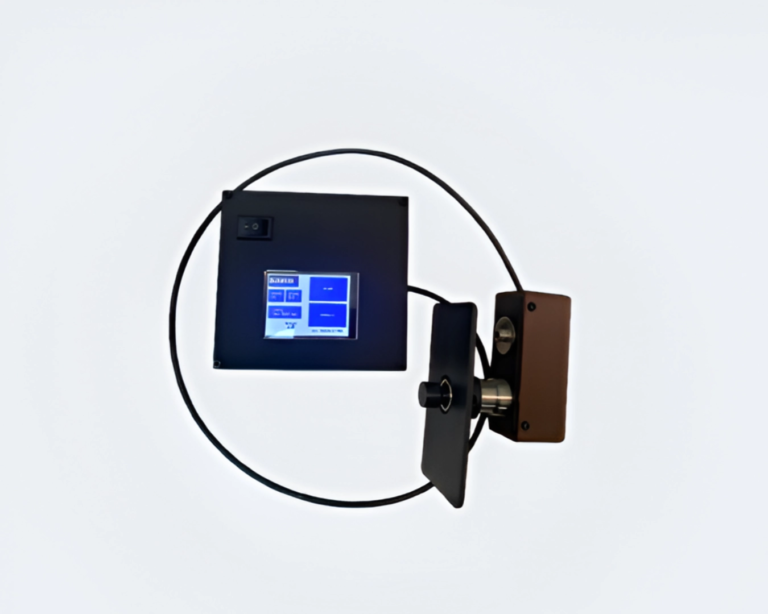

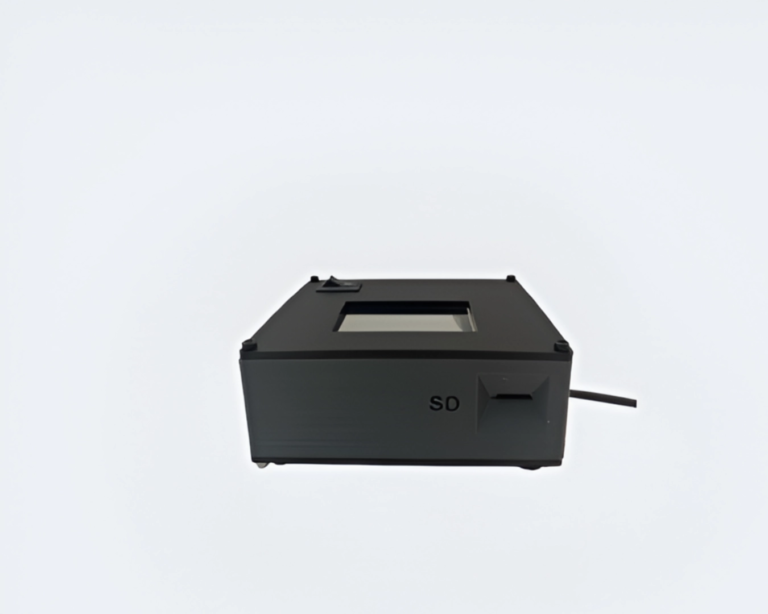

Noninvasive Firmness Tester AGROSTA®DFT14

A versatile firmness tester for noninvasive udder measurement in dairy cows, hardness testing of chicken breasts, and adaptable for cosmetic surgery applications. Equipped with a color touchscreen, microSD storage, Bluetooth, and a speech function.

Description
Soft tissues Firmness Tester

The Agrosta®DFT14 is a versatile firmness tester designed for noninvasive measurement applications, including udder firmness in dairy cows and hardness testing in chicken breasts. Widely used in both agricultural and medical research, the DFT14 has also been employed in scientific publications for soft-tissue firmness assessments in cosmetic breast surgery and breast augmentation procedures. Its design supports use as both a surface deformation tester and a penetrometer, making it suitable for measuring firmness in a wide range of materials, including cauliflower, lettuce, and other delicate produce.

Key Features:

  • Color Touchscreen: Intuitive interface for easy operation, batch naming, and sound adjustments.
  • Bluetooth Connectivity: Wireless connection to Android devices, with a free app for real-time data management.
  • MicroSD Data Storage: Stores data in Excel-compatible format, enabling detailed analysis.
  • Speech Function: Audible results in multiple languages for enhanced usability.
  • Ceramic Sensor Module: Ensures high accuracy, durability, and reliability in measurements.

The DFT14 has been validated as a dynamometer for udder firmness measurement in dairy cows (Bertulat et al., Freie Universität Berlin), and its use has been documented in cosmetic surgery for measuring breast tissue firmness and assessing capsular contraction post-surgery (Brown et al.). With applications ranging from agricultural quality control to medical research in breast augmentation and soft-tissue turgor measurement, the Agrosta®DFT14 provides the precision and versatility needed by professionals in diverse fields.

Technical specifications

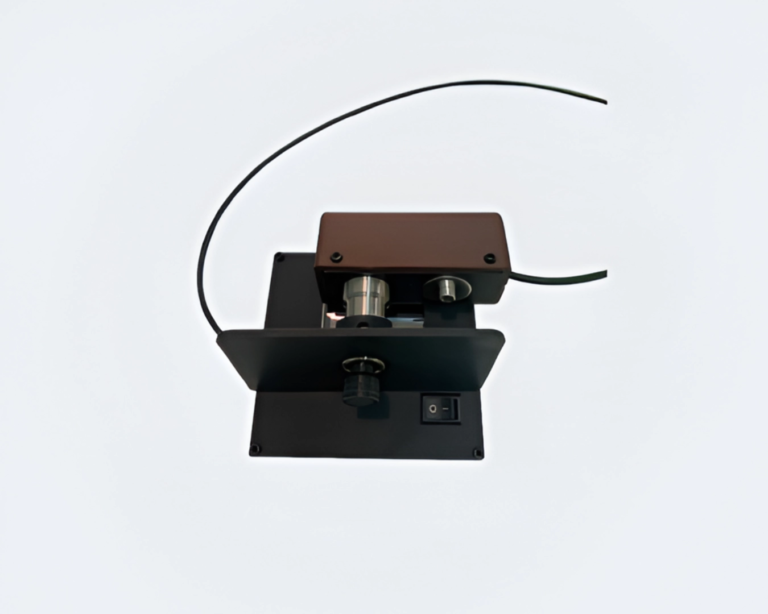

DUROFEL Firmness Tester

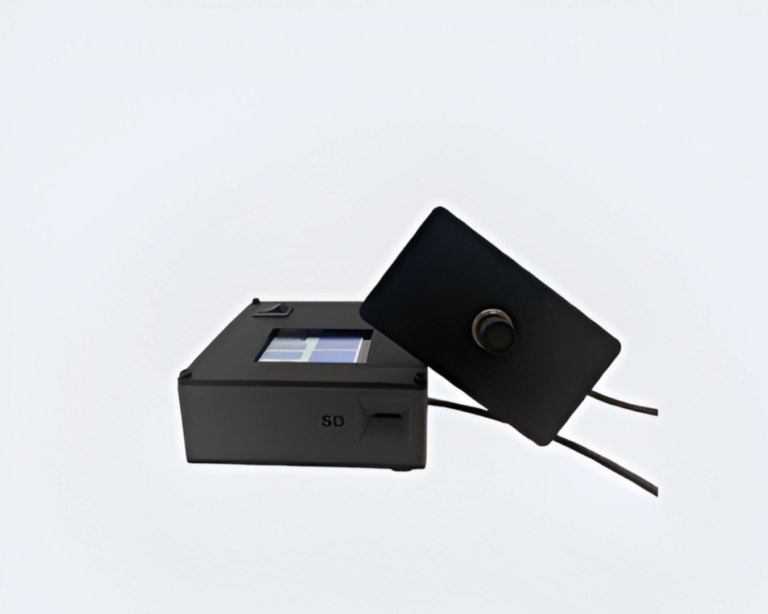

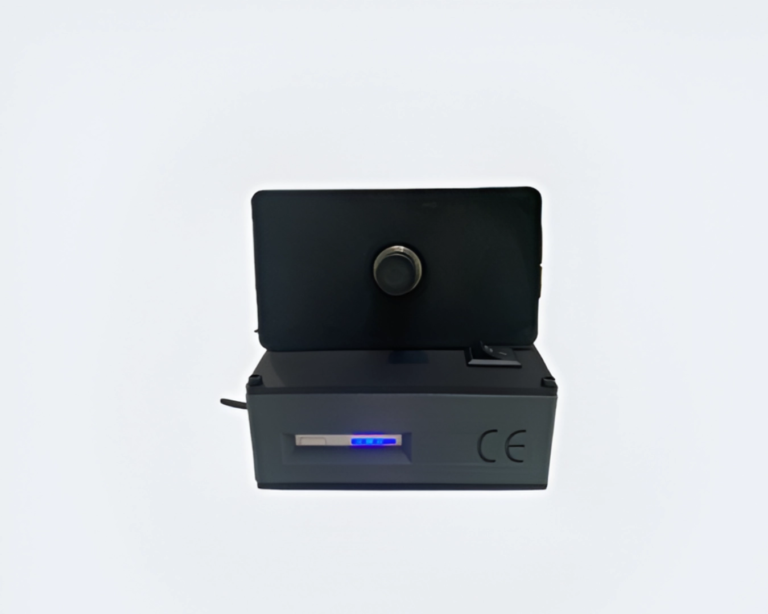

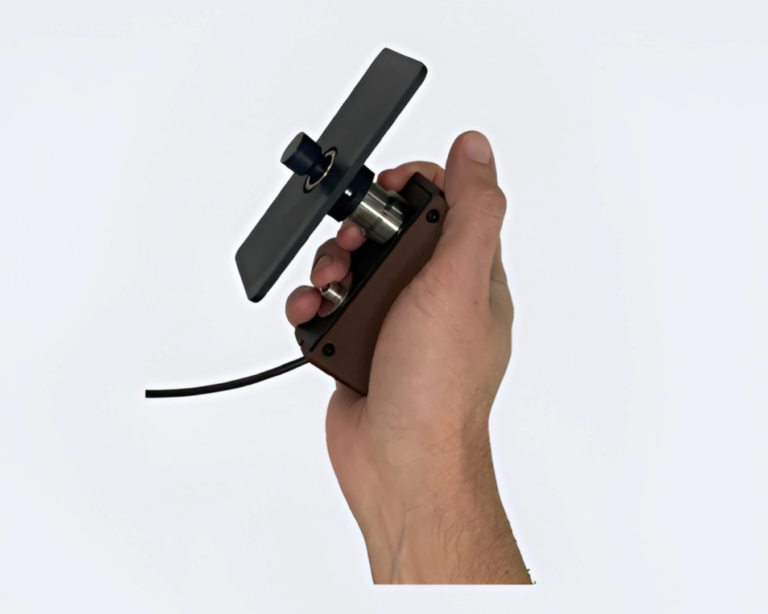

Durofel Fruit Firmness Tester AGROSTA®100

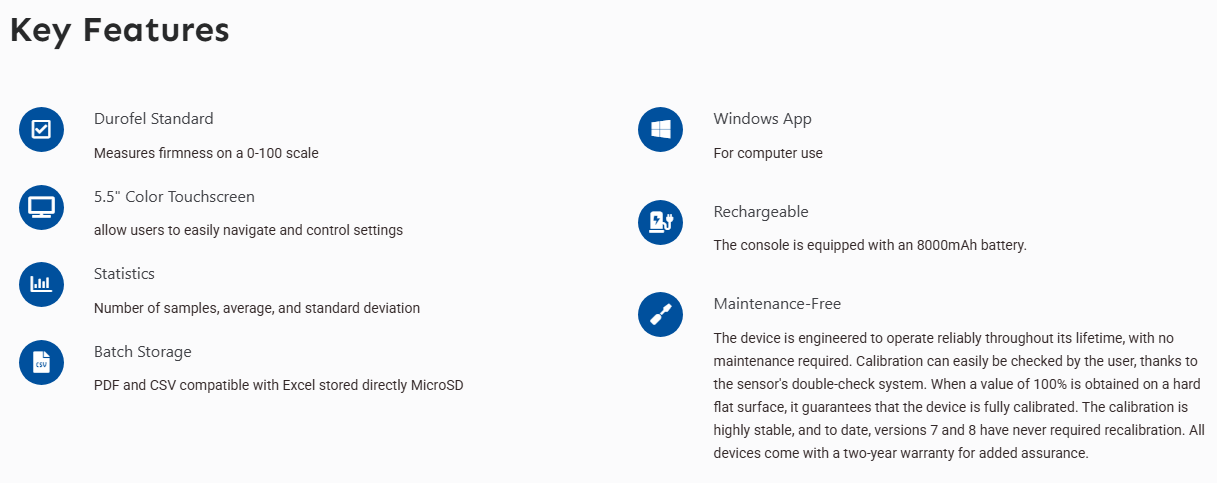

An advanced firmness tester for various soft fruits, using the precise Durofel scale. Featuring a 5.5″ HD touchscreen, highly durable and waterproof, easy batch managementcustomizable measurements, and convenient data storage on a microSD card. A versatile tool for reliable fruit quality testing, specifically designed for soft fruits and berries. Ensures precise measurements for fruits like blueberries, tomatoes, cherries, grapes, strawberries, plums, apricots, peaches, and olives.

Description

Field Fruit Firmness Tester

The Agrosta® 100 is an advanced Durofel firmness tester, continuously refined through over 10 upgrades since its creation in 1987, in collaboration with CTIFL. Designed for professional use, this iconic device provides highly accurate measurements of soft fruits such as tomatoes, blueberries, cherries, plums, and grapes, using the trusted Durofel scale.

Robust & Field-Ready Design

Built for demanding environments, the Agrosta® 100 is an ultra-resistant device, designed to withstand harsh conditions. Its shockproof and fully waterproof console ensures reliability in any setting, while a tempered glass screen protects against impacts.

Intuitive Touchscreen & Intelligent Analysis

The device features a 5.5-inch (14 cm) color touchscreen, offering a user-friendly interface for seamless navigation and quick adjustments. Users can perform single or multiple measurements (from 2 to 4 per fruit) with ease, and the device automatically calculates averages, displaying real-time analysis for fast decision-making.

Advanced Data Management & Connectivity
  • MicroSD card support for CSV batch storage
  • Secure 2-meter USB cable connection for stable data transfer
  • Effortless USB-C charging, with a power cable included
  • Seamless export of measurements as PDF or CSV
Enhanced Features for Greater Flexibility
  • Create, rename, and manage multiple batches
  • Access previously recorded data to add, review, or delete measurements
  • Integrated text-to-speech functionality, announcing results in the selected language (optional mute function)
Included & Optional Accessories

Included tip:

  • 25 (for cherries, tomatoes, blueberries)

Optional tips:

  • 10 (for grapes, apricots) – 135 €
  • 50 (for strawberries) – 135 €
Separate Purchase Options

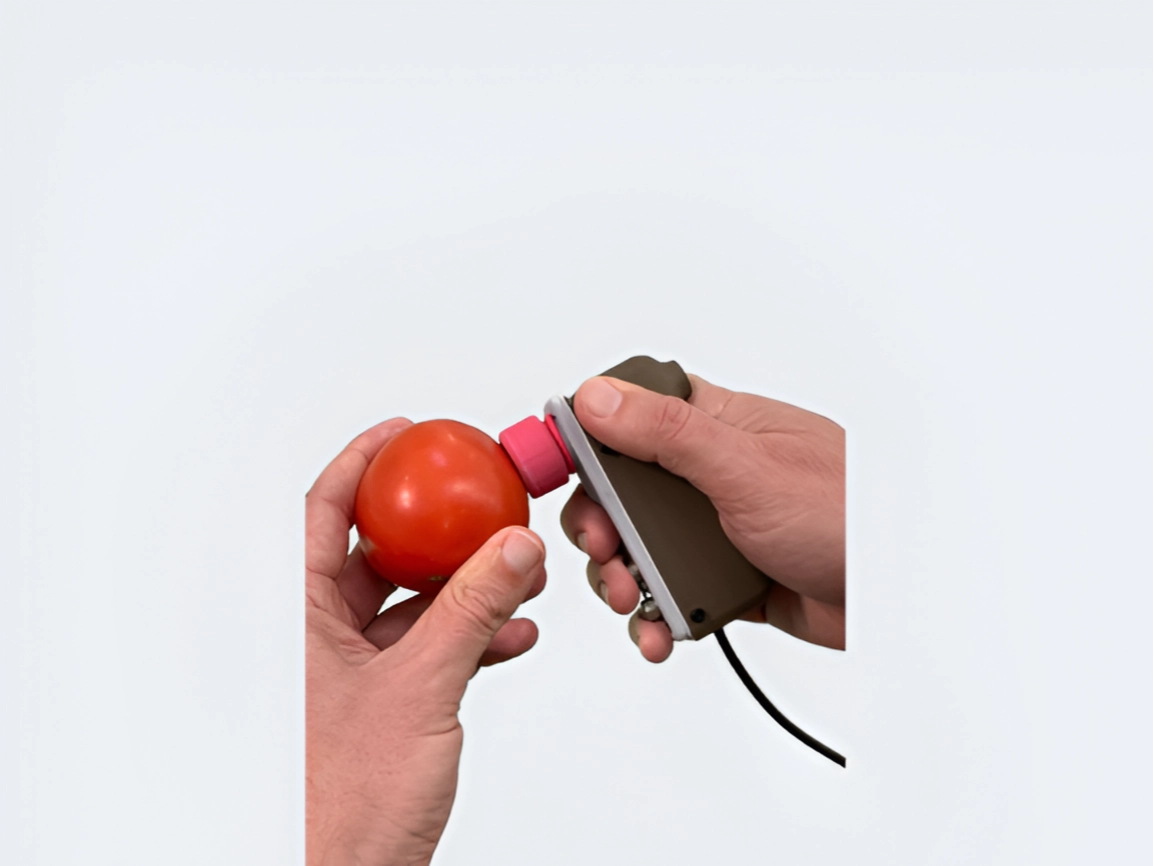

The firmness tester and the console can be purchased separately. The tester can be connected directly to a computer via USB, without requiring the console.

Technical specifications

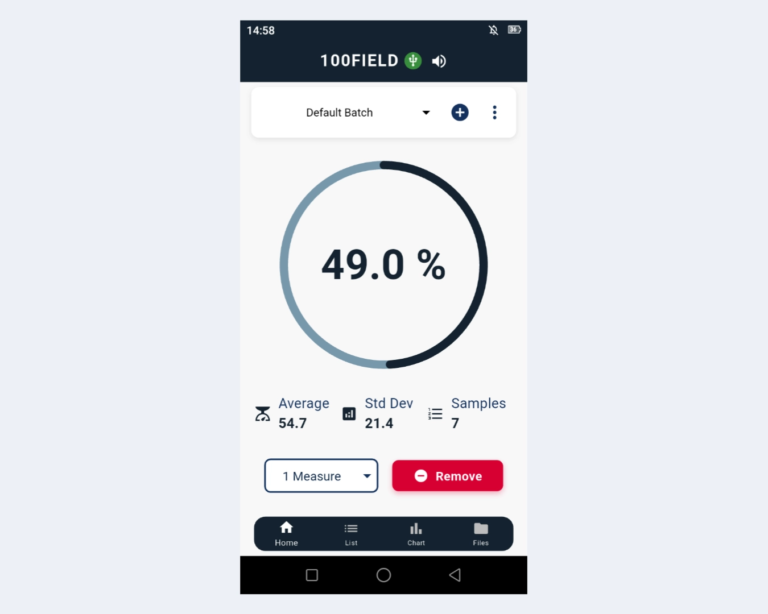

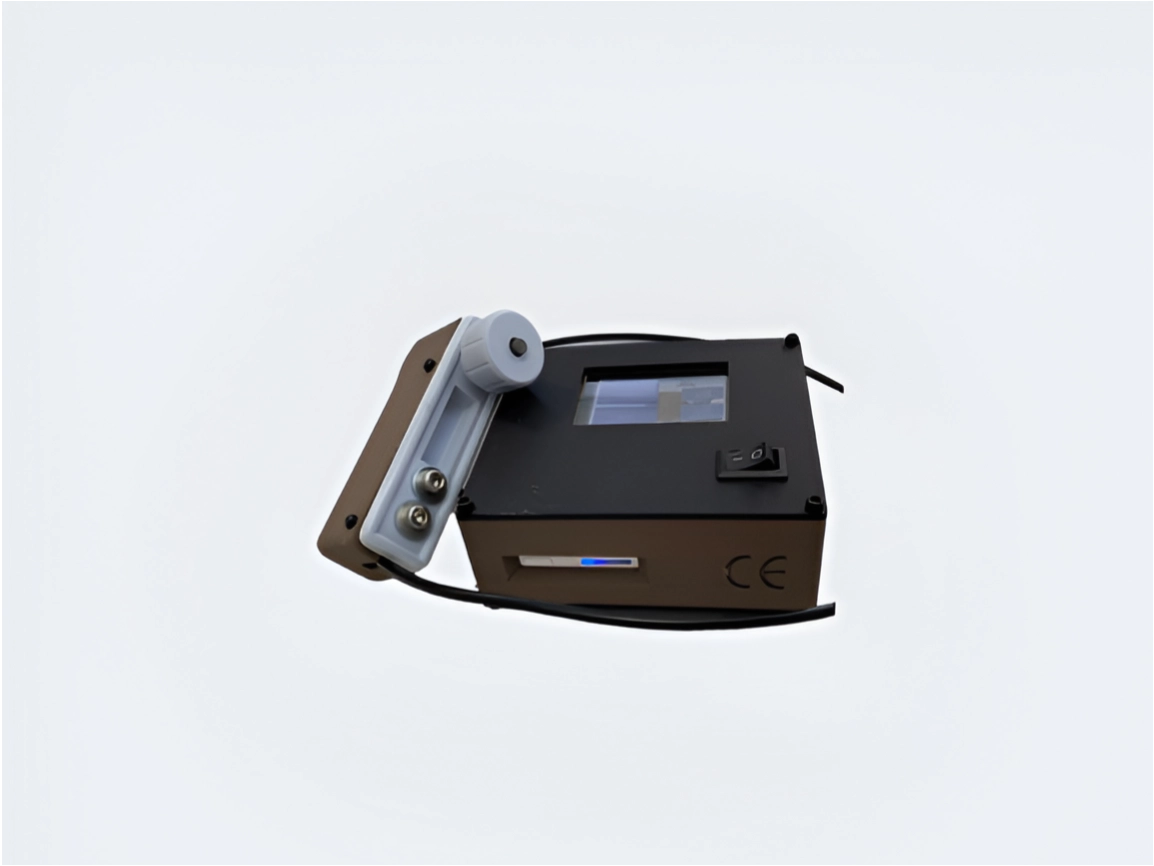

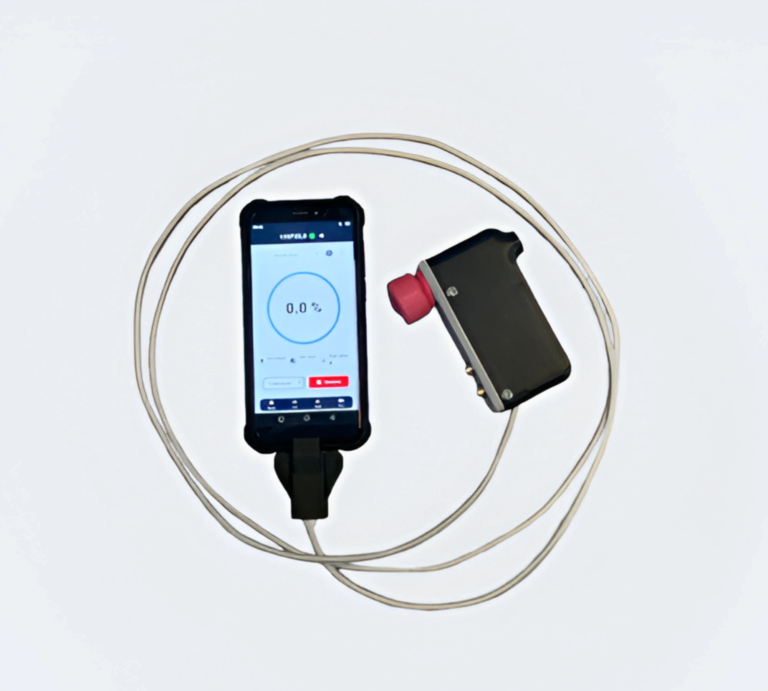

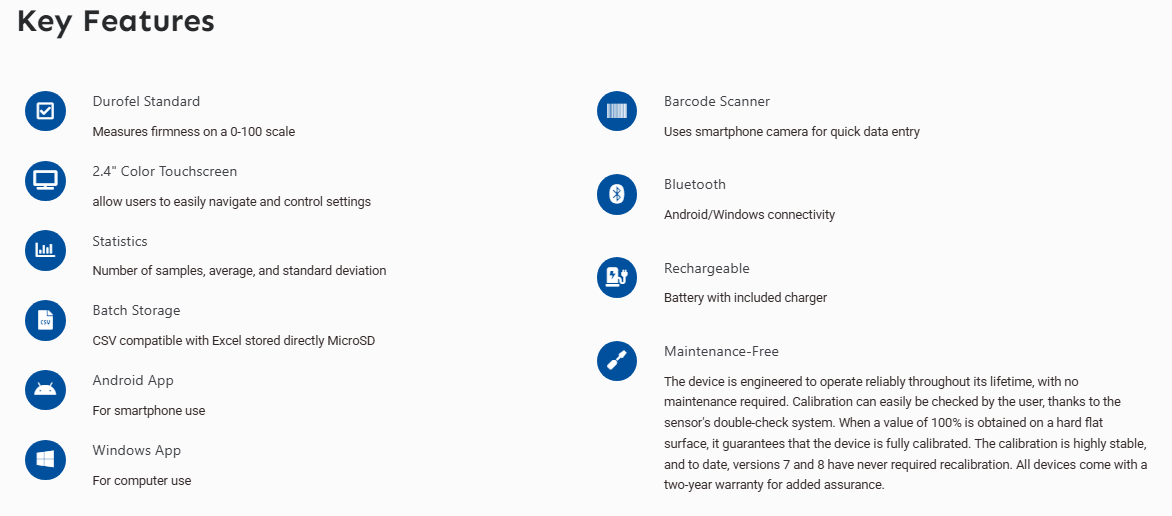

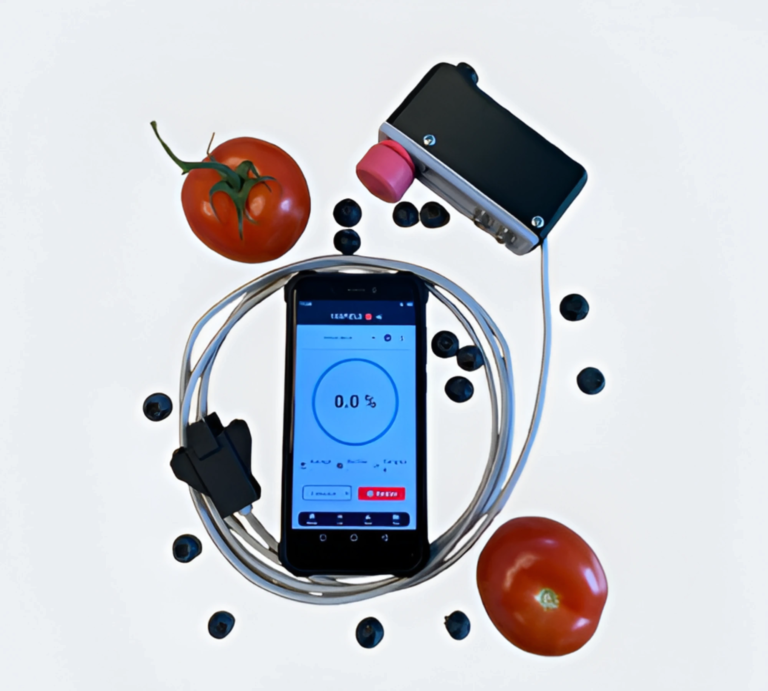

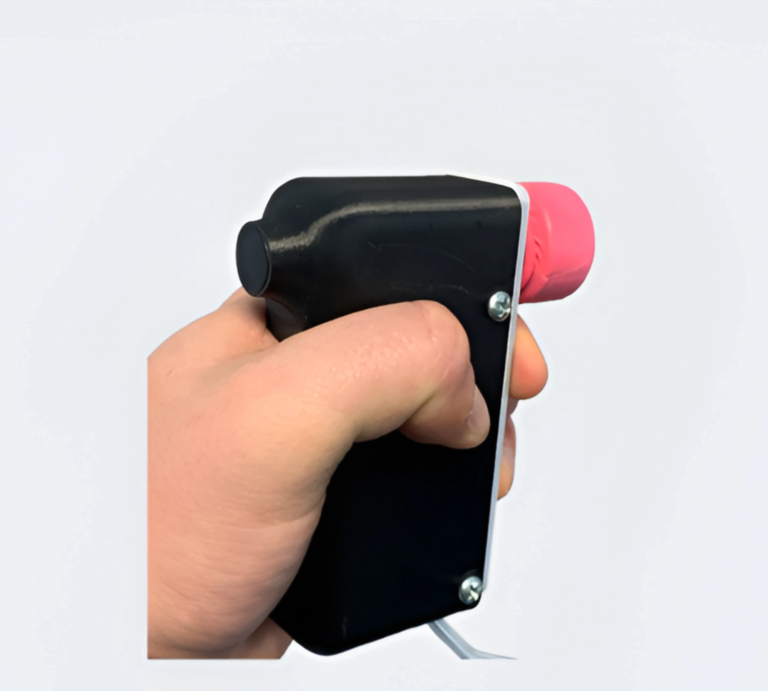

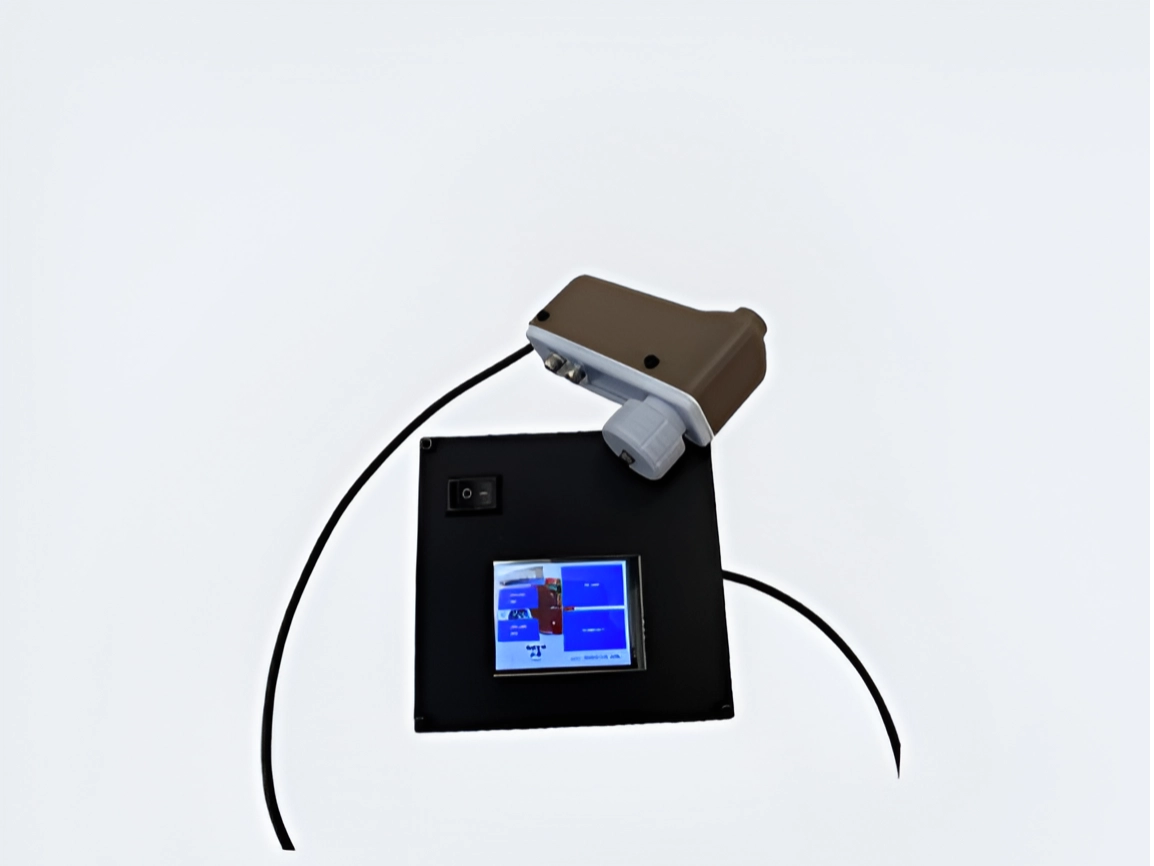

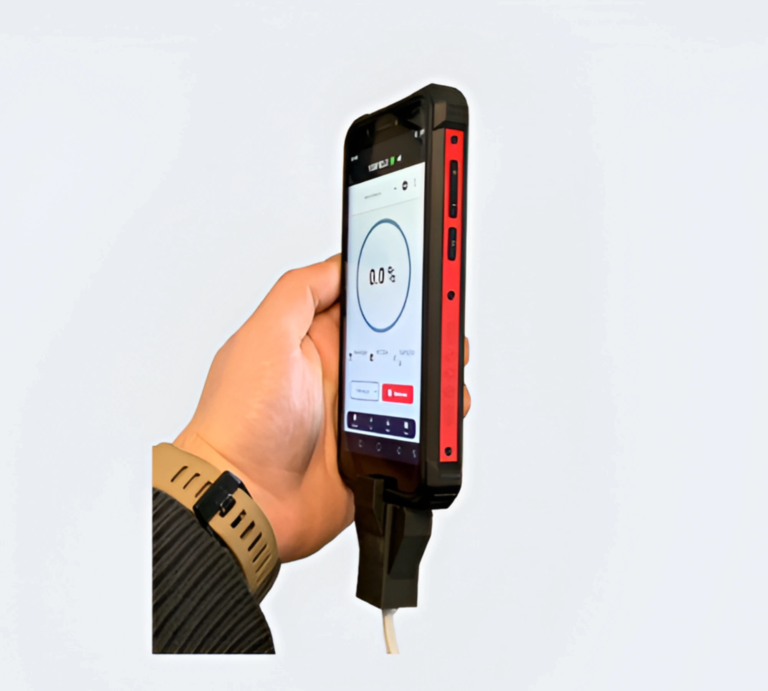

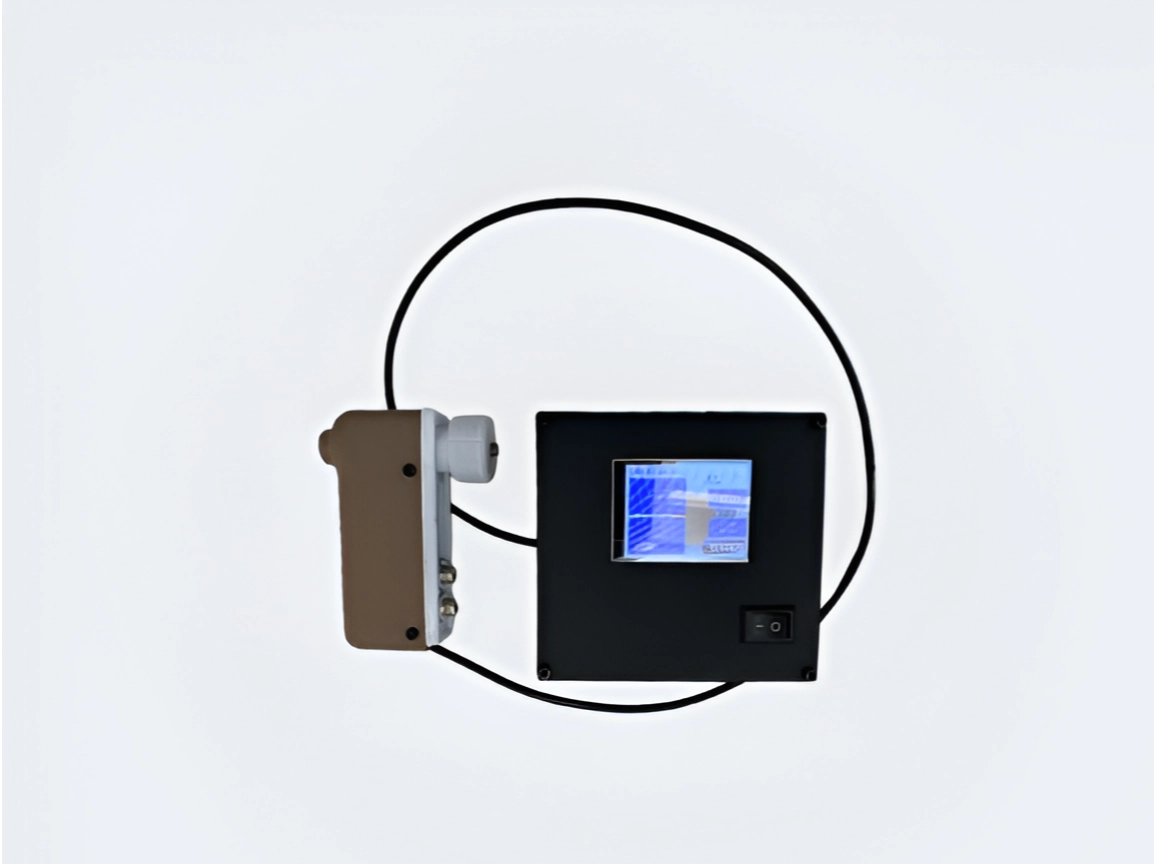

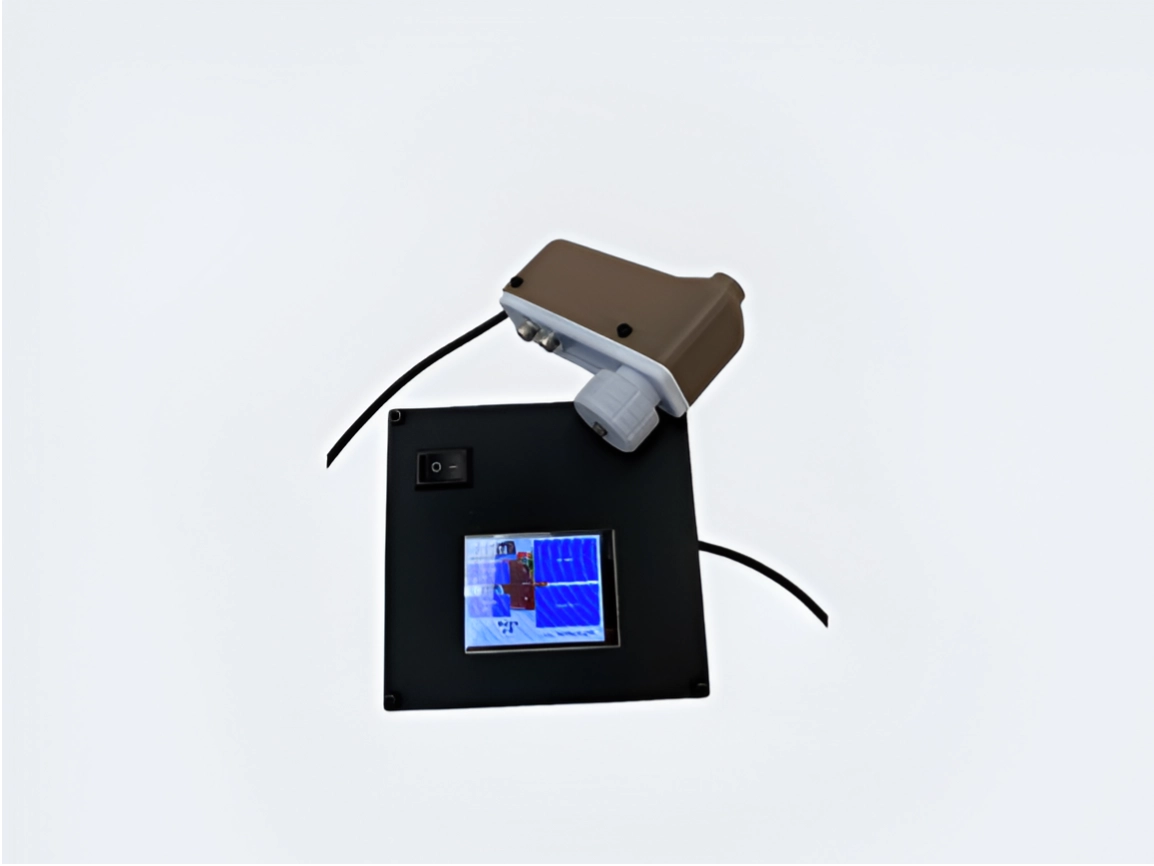

Soft Fruits Firmness Tester AGROSTA®100FIELD

An advanced firmness tester for various soft fruits, using the precise Durofel scale. Featuring a 2.4″ color touchscreen, customizable measurements, optional Bluetooth connectivity, and convenient data storage on a microSD card. A versatile tool for reliable fruit quality testing

Description

Field Fruit Firmness Tester

The Agrosta®100FIELD is an advanced Durofel firmness tester, continuously refined through over 9 upgrades since its creation in 1987 in collaboration with CTIFL. This iconic device measures the firmness of soft fruits such as tomatoesblueberriescherriesplums, and grapes, delivering highly accurate results using the reliable Durofel scale.

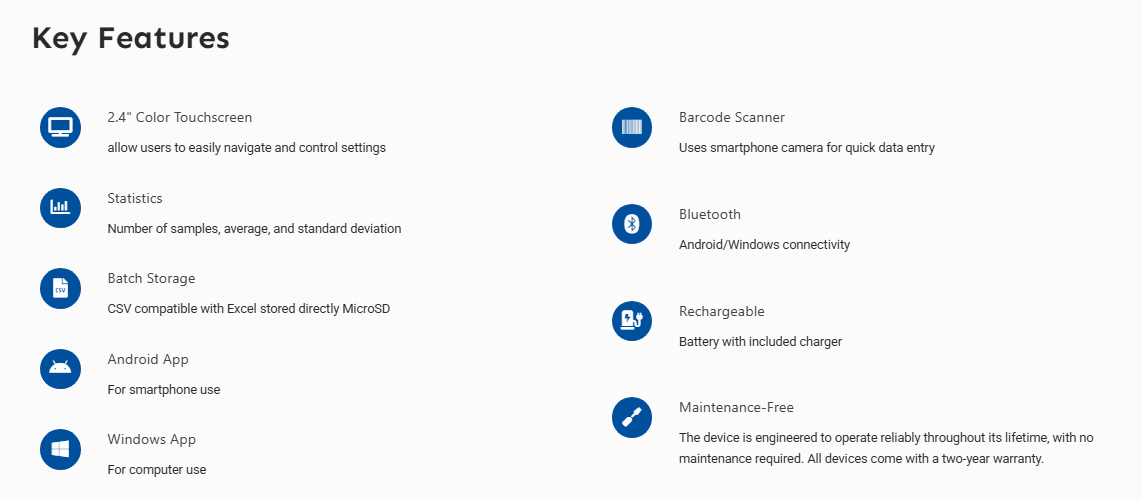

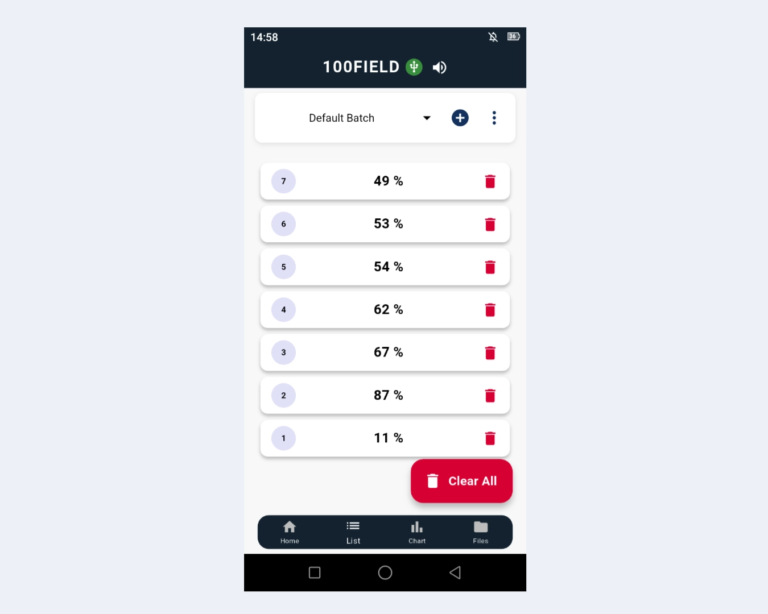

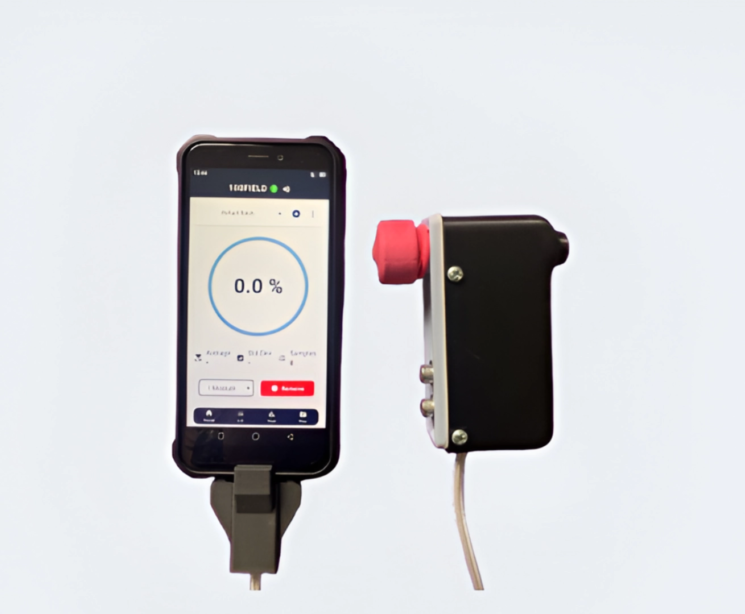

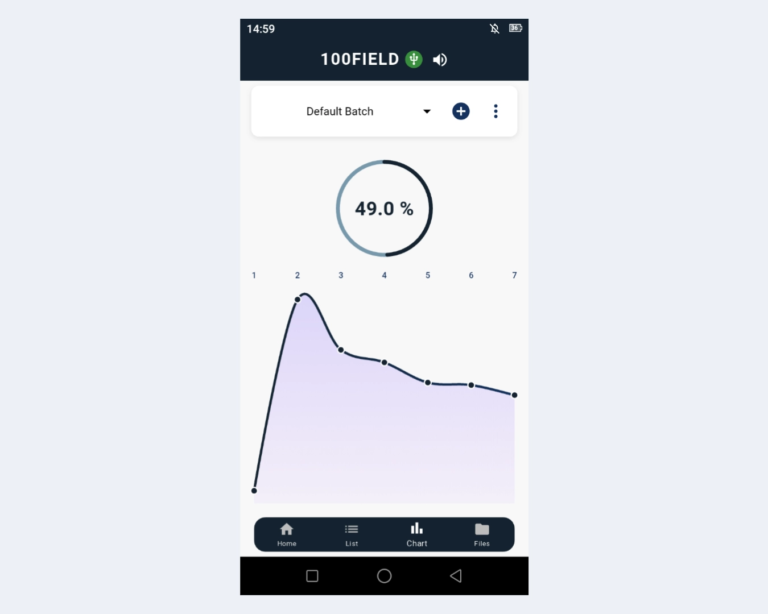

It features a bright 2.4-inch color touchscreen that simplifies navigation and settings adjustments. Users can perform single or multiple measurements (2 or 8 per fruit) with ease, and the device automatically calculates and displays averages for quick analysis. It includes a microSD card for local storage, enabling CSV batch storage. Optional Bluetooth pairing with Android devices unlocks advanced features like GPS recording and barcode scanning.

Included Tip: 25 (for cherry, tomato, blueberry).
Optional Tips:

Technical specifications
