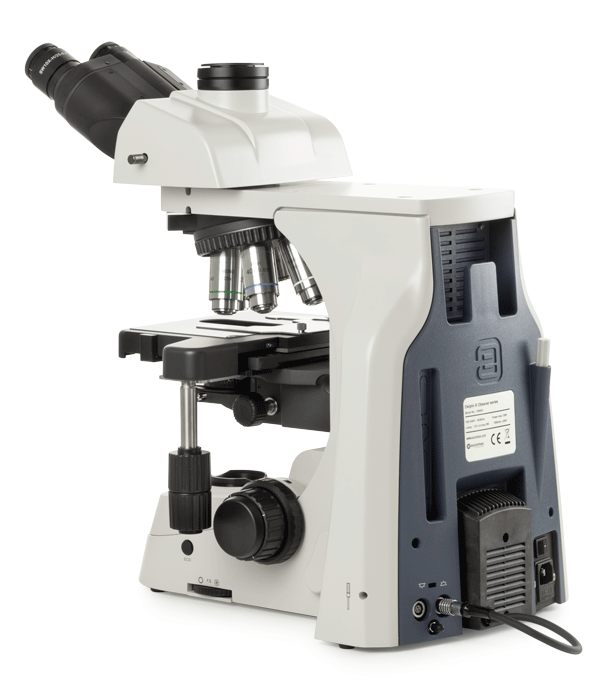

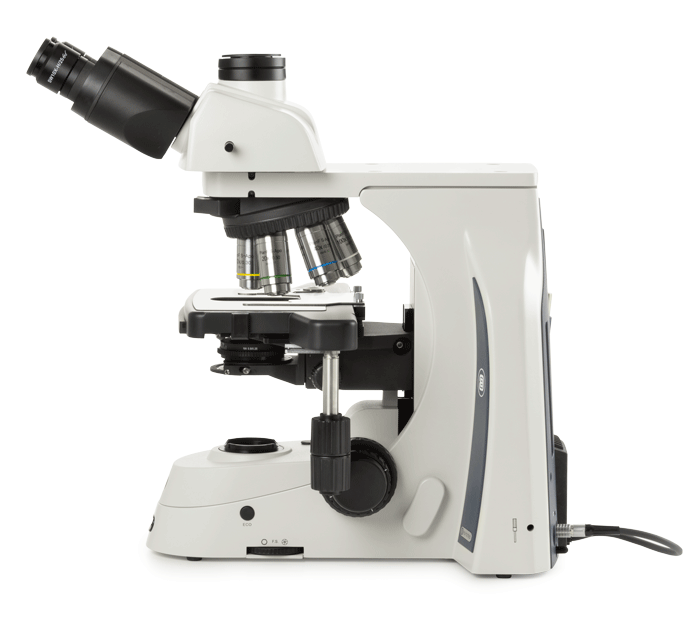

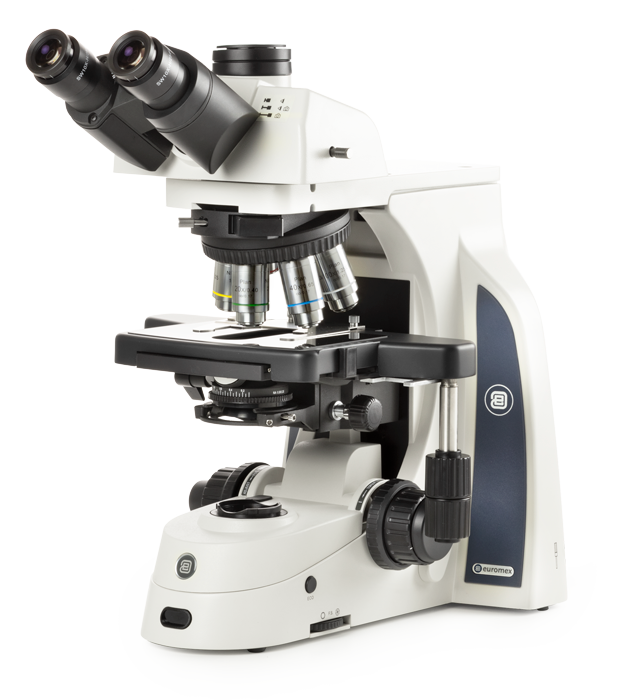

The outstanding optical performance of the Delphi-X Observer™ with 25 mm fields of view and high numerical aperture of the Plan 60 mm parafocal EIS objectives enables perfect observations and color rendering at high resolving power. This is the perfect microscope for anatomo-pathologists
Specification
EYEPIECES
STANDARD HEAD
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces

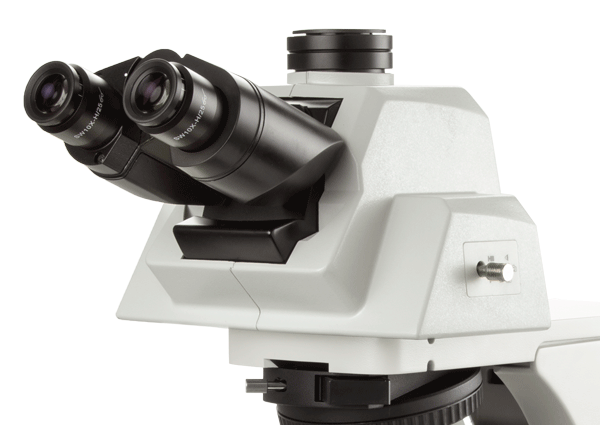

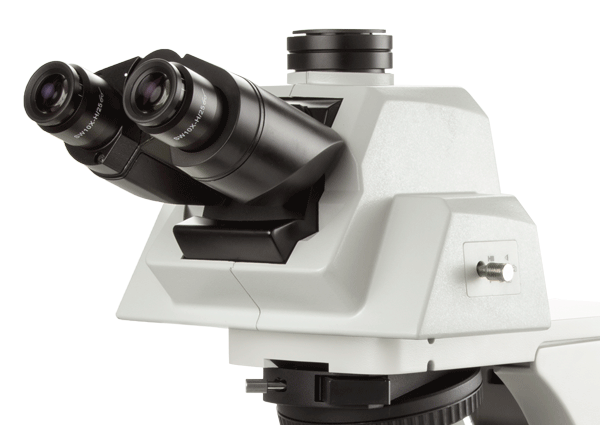

ERGONOMIC TILTING HEAD
Optional ergonomic 0 to 35° tilting trinocular head supplied with SWF 10x/25 mm eyepieces, interpupillary distance between 47-78 mm and photo tube with standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces
MULTIHEAD SYSTEM
The Delphi-X Observer can be extended with a unique multihead system for in total 2, 3, 5 or 10 heads allowing simultaneous observation of specimens. The central attachment is equipped with a trinocular head and with a joystick to move a green or red laser pointer across the entire field of views of all heads.
The multihead systems with two, three or five heads and 30° inclined tubes are supplied with Super wide field SWF 10x/25 mm eyepieces. The multihead systems with ten heads and 30° inclined tubes have the trinocular main head equipped with Super wide field SWF 10x/25 mm eyepieces and the other nine binocular other heads with Extended wide field EWF 10x/22 mm eyepieces. The Delphi-X Observer ™ multihead system with ten heads is supplied without the iCare sensor
Order references:
(Photo: Multihead system, DX.2156-PLi/10)
FACE-TO-FACE DUAL HEAD SYSTEM
The Delphi-X Observer™ can be supplied with one trinocular and one binocular head in a face-to-face configuration allowing simultaneous observation by two operators. The main trinocular head is equipped with Super wide field SWF 10x/25 mm eyepieces and the second head with EWF 10x/22 mm eyepieces. A joystick enables the operator to move a green or red laser pointer across the entire field of view of both heads
Order reference:

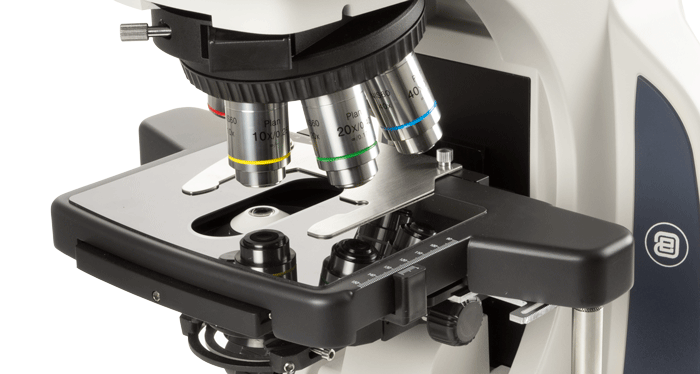

NOSEPIECE
Revolving sextuple reversed nosepiece on ball-bearings with M25 objectives mounting threads and with slot for optional DIC prism(s)

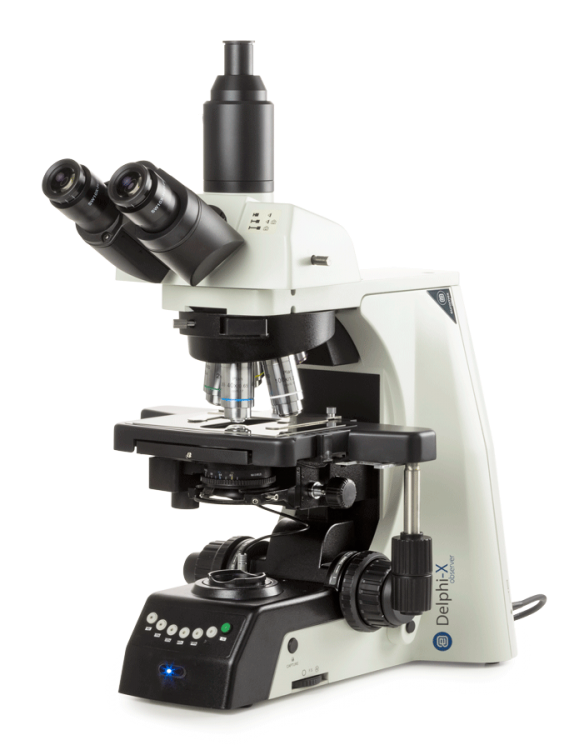

MOTORISED NOSEPIECE
The Delphi-X Observer™ can be supplied with a motorized revolving sextuple reversed nosepiece. A precise step-motor allows the user to switch from objective by a simple push on a button. Another button allows quick switching between two preselected objectives. Standard with this nosepiece comes a motorized condenser
ENHANCED INFINITY SYSTEM (EIS)
The enhanced infinity system (EIS) of the Delphi-X Observer™ consists of Super wide field SFWF 10×25 mm eyepieces, high numerical aperture 60 mm parafocal objectives and a 200 mm focal length tube lens. The 200 mm focal length tube lens reduces the angle of the light rays passing the optics and as a direct result improving significantly the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system.
For all these reasons the Delphi-X Observer™ offers superior optical performance for the most demanding applications
PLAN ACHROMATIC OBJECTIVES (clinical routine laboratories)
The Delphi-X Observer™ is standard supplied with Plan Achromatic 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion infinity corrected EIS objectives
(Optional: 2x/0.06 working distance 7.5 mm, S50x/0.95 (oil immersion) working distance 0.19 mm and S60x/0.80 working distance 0.30 mm)
PLAN SEMI-APOCHROMATIC OBJECTIVES (anatomo- and histopathology laboratories)
The Delphi-X Observer™ can also be supplied with Plan Semi-Apochromatic Fluarex 4x/0.13, 10x/0.30, 20x/0.50, S40x/0.75 and S100x/1.30 (oil immersion) infinity corrected EIS objectives
PLAN PHASE CONTRAST OBJECTIVES
Plan Phase EIS 10x/0.25, 20x/0.40, s40x/0.65 and s100x/1.25 (oil immersion) infinity corrected EIS objectives
* OptionalAll objectives are 60 mm parafocal and have a M25 mm mounting thread
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
All S40x, S50x, S60x and S100x objectives are spring loaded
STAGE
(Order reference: Add -L to product number).
(Optional: Sapphire glass available on request)
FOCUSING
CONDENSER (for brightfield)
In height adjustable N.A. 0.90/1.25 Abbe swing-out condenser with numerical aperture identification marks. Models with a motorized nosepiece are supplied with a motorized condensor that automatically flip-out the front lens of the condenser when the 4x objective is used
CONDENSER FOR DIFFERENTIAL INTERFERENCE CONTRAST (DIC) AND BRIGHTFIELD
An optional in height adjustable disc condenser for DIC and bright field can be equipped with several primary DIC prisms to be used with sliders with secondary DIC prisms to be placed in the nosepiece
CONDENSER (for phase contrast)
In height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10/20/40x and S100x-oil objectives. To be used with the phase contrast objectives
DIASCOPIC ILLUMINATIONS
Two Köhler illuminations are available forx the Delphi-X Observer microscope:
The diascopic halogen illumination comes with two push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kind of samples and with one Light Balancing Daylight filter. The diascopic NeoLED™ illumination comes with a frosted difuse filter
LIGHT INTENSITY MEMORY FUNCTION
LIM automatically saves preferred brightness while changing magnifications. It eliminates the need for adjusting lamp brightness when changing magnification. This allows maintaining preferred brightness at each magnification, thus improving user efficiency significantly and reducing eye strain. Standard on all models with a motorized nosepiece, for other models see ordering instructions below
For ordering Automatic light intensity memory function
Example: DX.1153-PLi = DX.1153-PLi/LIM model but with automatic light control
NeoLED™
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy.
The illumination of the microscope automatically switches off shortly after microscopists step away from their position

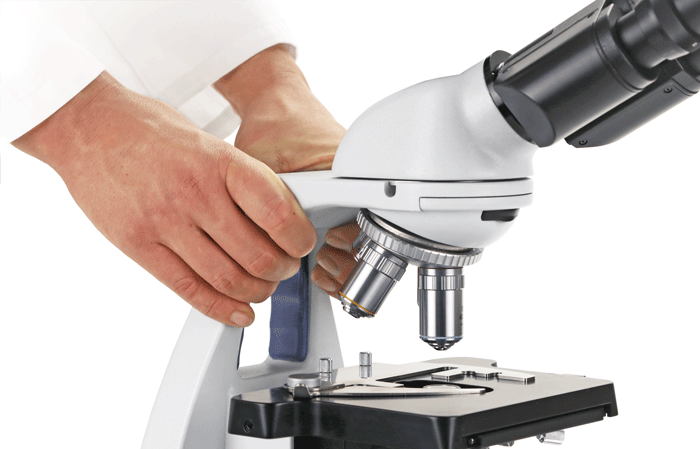

CARRYING GRIP
The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool & holder makes sure the right tool is always available
STORAGE
AE.9914-D
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil. LED versions come with a white and yellow filter and halogen models come with a blue filter. All packed in a polystyrene box
CONFIGURATIONS

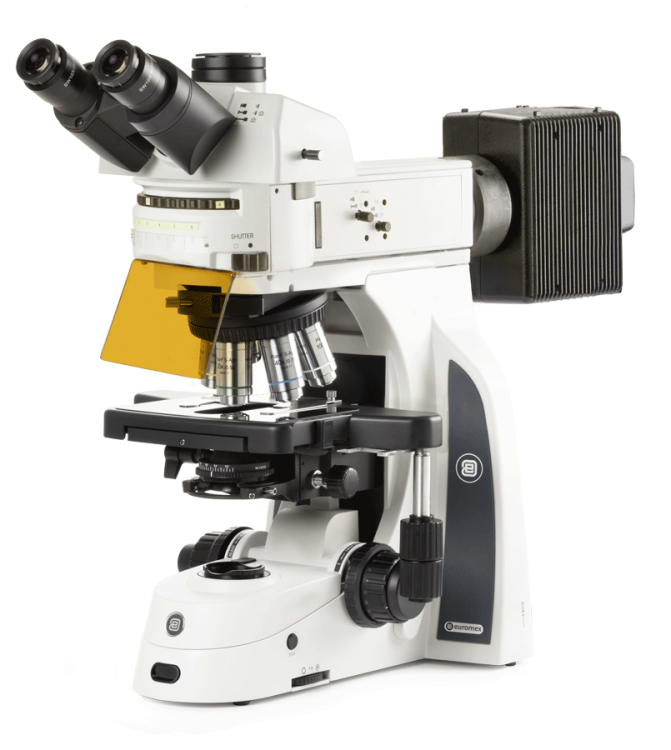

The Delphi-X Observer microscope is also available as fluorescence model

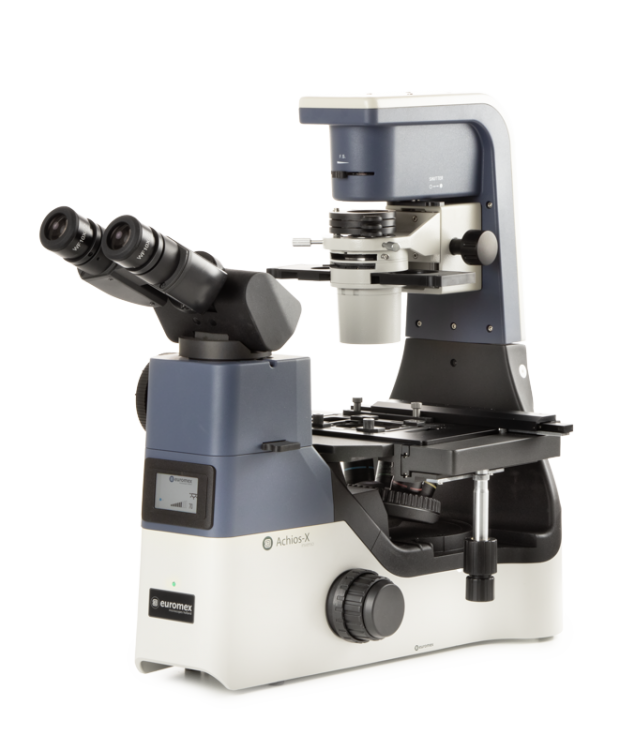

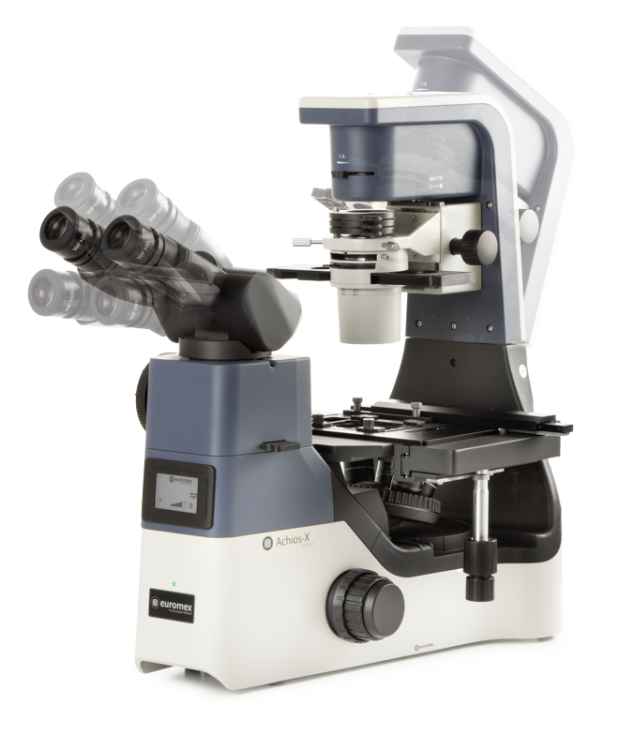

State-of-the-art microscopes for advanced Life Science applications
Experience optimal comfort and cutting-edge performance with the Achios-X Inverso, an ergonomic masterpiece featuring a state-of-the-art optical system
Tailored to meet the demands of advanced Life Science applications such as life cell imaging and tissue cultures. This microscope stands as an unparalleled choice
EYEPIECES
SWF 10x/22 mm wide field eyepieces with adjustable diopter. ø 30 mm tubes
HEAD
Binocular head with 45° inclined tubes or binocular ergo head with 5-35° tilting tubes. Interpupillary distance of 48 to 75 mm. Optional side photo port with 100-0/0-100 beamsplitter
NOSEPIECE
Revolving quintuple nosepiece on ball-bearings
OBJECTIVES – 60 MM PARFOCAL, M25 THREAD
Objectives with 1.2mm coverslip correction
Fluarex™ objectives are made of low-absorption glass. Fluarex™ is a trademark of Euromex microscopen bv. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
CONDENSERS
For AI.1xxx and AI.3xxx models
For AI.4xxx models
WD = Working distance
CONDENSER FOR HOFFMAN CONTRAST
All models can be equipped with a Hoffman condenser and slider with Hoffman slits for 10/20/40objectives. Needs Hoffman objectives
SLIDER FOR 3D RELIEF CONTRAST
All models can be equipped with a 3D relief contrast slider. Works for standard condenser and Plan or Plan Semi-Apo IOS 10/20/40x objectives
FOCUS ADJUSTMENT
ILLUMINATION
SMART LIGHT CONTROL
This intelligent function:
NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length
Four main benefits:
PACKAGE CONTENT

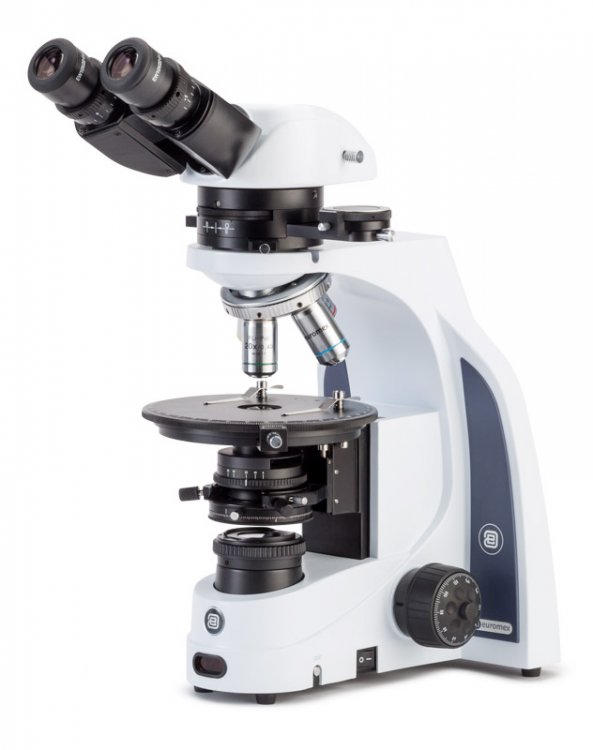

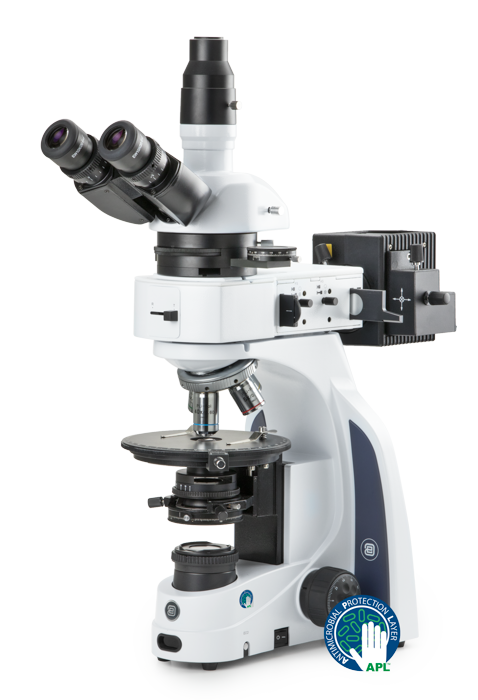

Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes
The iScope microscope are supplied with specific attachments that turn the iScope into a state-of-the art material science microscope suitable for various applications. There are three types of materials science microscopes; Metallurgical and polarization microscopes and microscopes specially for asbestos indentification
EYEPIECES
Polarization models are supplied with EWF 10x/22 mm or EWF 10x/20 mm (Ø 30 mm tubus) eyepieces, one eyepiece with crosshairs and one eyepiece with crosshairs and micrometer. Specific models for identifying asbestos have an HWF 12.5x/15 mm (Ø 30 mm tubus) eyepiece and an HWF 12.5x/15 mm eyepiece with Walton-Beckett scale
HEAD
NOSEPIECE
Revolving quadruple reversed nosepiece on ball bearings
OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
360° Rotating Ø 160 mm graduated stage with two object clamps
An optional 30 x 40 mm X-Y mechanical stage is available
CONDENSER
Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360° – swing out – rotatable polarizer
FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives.
The coarse adjustment is equipped with friction control
TRANSMITTED ILLUMINATION
REFLECTED ILLUMINATION
(PLPOLRi models only)
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy
The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage
CONFIGURATIONS
The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types
PACKAGE CONTENT
Supplied with power cord, tension control tool, dust cover, spare fuse and user manual. All packed in polystyrene boxes

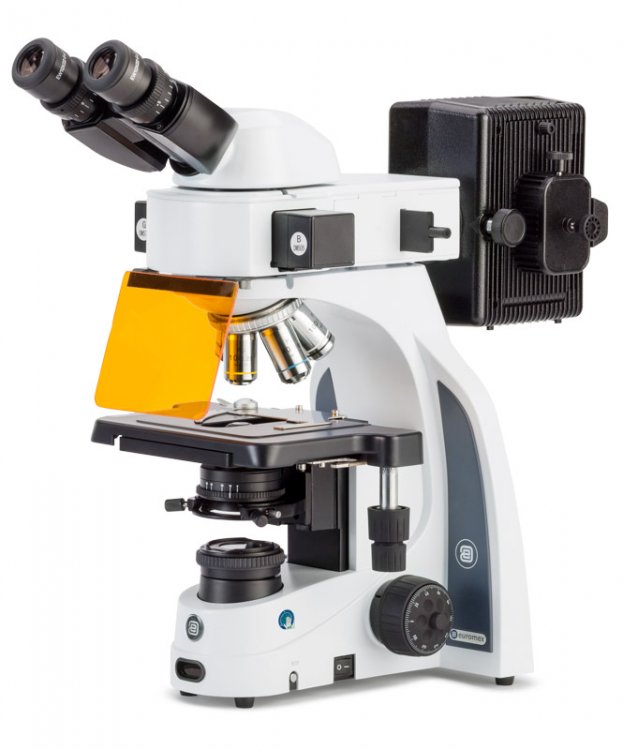

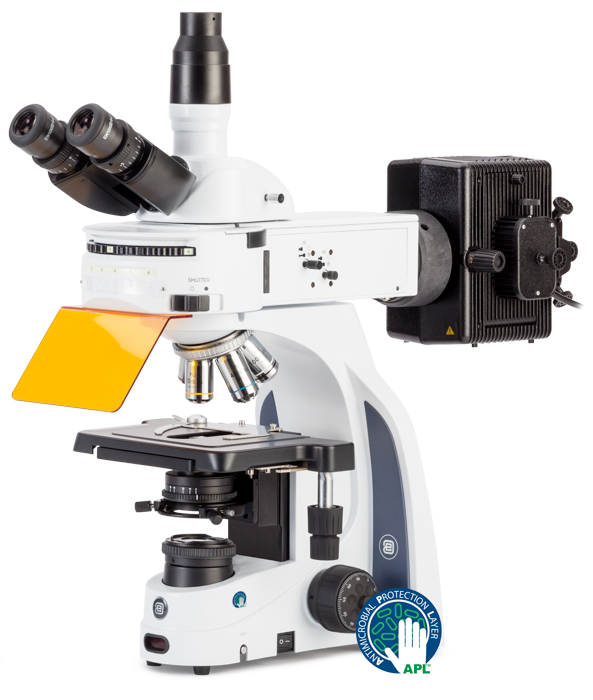

State-of-the-art microscopes for advanced Life Science fluorescence applications. The outstanding optical performance of the Delphi-X Observer™ makes it ideal for Life Science fluorescence applications where a high performance optical system is required. The 22 mm fields of view of the Super wide field eyepieces and the high numerical aperture of the Plan Fluarex 60 mm parafocal EIS objectives enable perfect observations and color rendering at high resolving power
EYEPIECES
Polarization models are supplied with EWF 10x/22 mm or EWF 10x/20 mm (Ø 30 mm tubus) eyepieces, one eyepiece with crosshairs and one eyepiece with crosshairs and micrometer. Specific models for identifying asbestos have an HWF 12.5x/15 mm (Ø 30 mm tubus) eyepiece and an HWF 12.5x/15 mm eyepiece with Walton-Beckett scale
HEAD
NOSEPIECE
Revolving quadruple reversed nosepiece on ball bearings
OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
360° Rotating Ø 160 mm graduated stage with two object clamps
An optional 30 x 40 mm X-Y mechanical stage is available
CONDENSER
Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360° – swing out – rotatable polarizer
FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives.
The coarse adjustment is equipped with friction control
TRANSMITTED ILLUMINATION
REFLECTED ILLUMINATION
(PLPOLRi models only)
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy
The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage
CONFIGURATIONS
The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types
PACKAGE CONTENT
Supplied with power cord, tension control tool, dust cover, spare fuse and user manual. All packed in polystyrene boxes

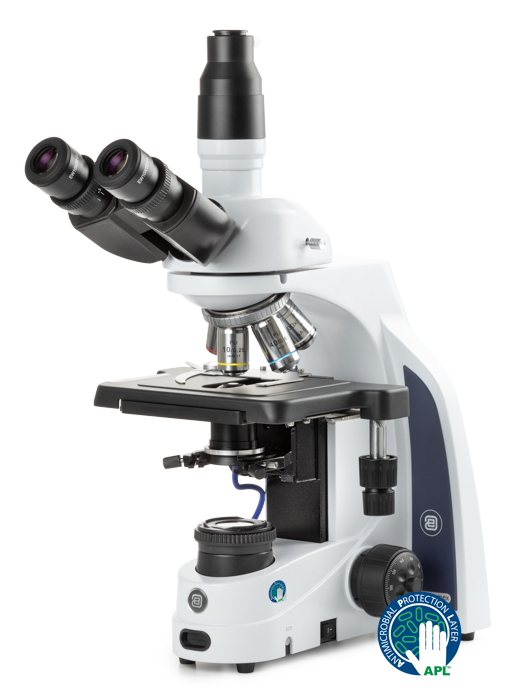

The iScope® darkfield is available in two configurations suitable for Life and Biomedicial Sciences, high schools, universities where a cardioid mirror based darkfield is required
EYEPIECES
SWF 10x/22 mm wide field eyepieces with adjustable diopter. ø 30 mm tubes
HEAD
Binocular head with 45° inclined tubes or binocular ergo head with 5-35° tilting tubes. Interpupillary distance of 48 to 75 mm. Optional side photo port with 100-0/0-100 beamsplitter
NOSEPIECE
Revolving quintuple nosepiece on ball-bearings

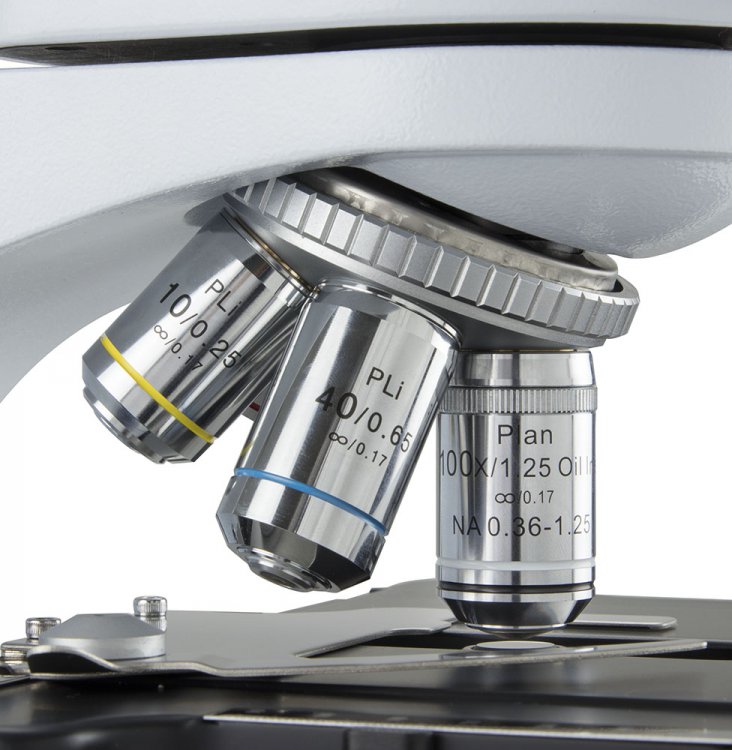

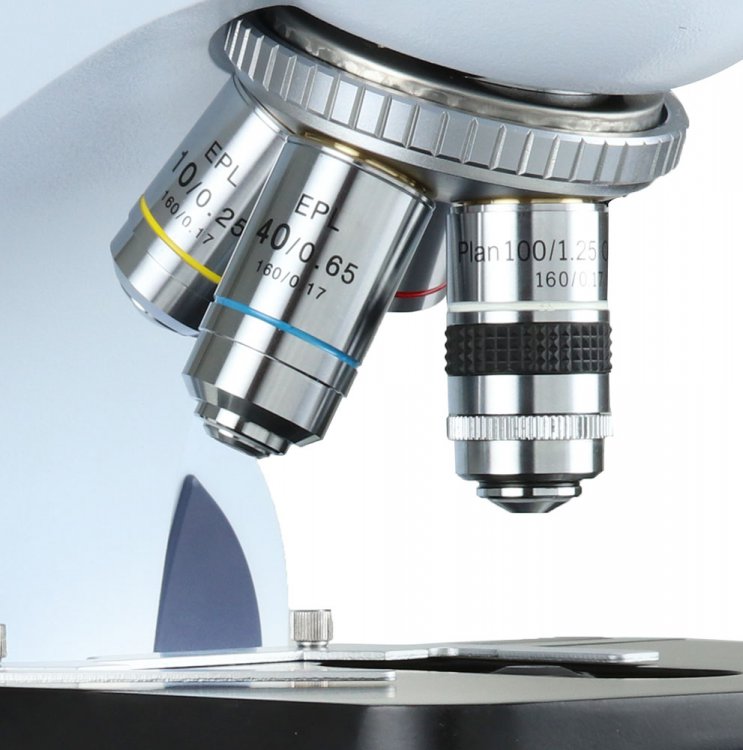

OBJECTIVES – 60 MM PARFOCAL, M25 THREAD
Objectives with 1.2mm coverslip correction EYEPIECES
HEAD
Optional.
** S100x oil objective with built-in iris diaphragm.
*** Super contrast plan PLi S100x oil infinity corrected objective with built-in iris diaphragm
All optics are anti-fungus treated and anti-reflection coarted for maximum thoughput
ERGONOMIC TILTING HEAD (for IOS models only)

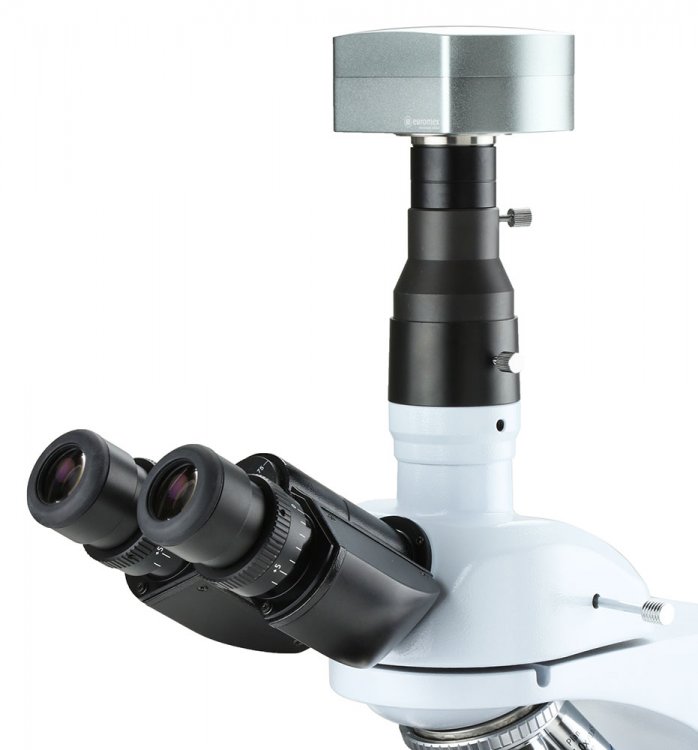

(To order an iScope® with tilting head use reference IS.1158‑PLi/DF or IS.1158‑PLi/DFi.
To order an iScope® with tilting head and photo attachment use reference IS.1159‑PLi/DF or IS.1159‑PLi/DFi)
NOSEPIECE
Revolving quintuple reversed nosepiece for maximum five objectives
STAGES
The iScope® can be equipped with two types of stages (designed for 2 slides):

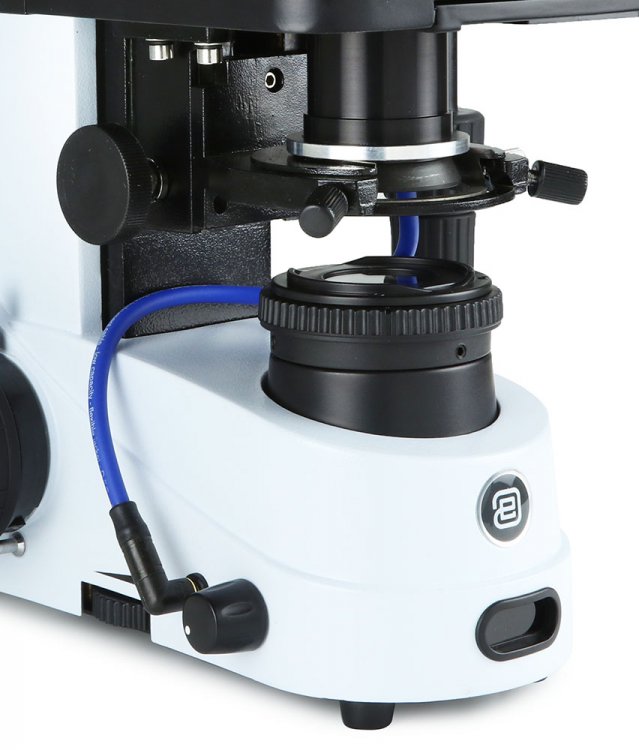

CONDENSER FOR DARKFIELD (STANDARD)
A state-of-the-art condenser equipped with reflective cardioid mirrors and a built-in high powered 3 W LED light source. Together with a S100x objective with built-in iris diaphragm this enabels a 1000x magnification darkfield solution. The power supply of the 3 W LED light source is built in the microscope. The darkfield condenser can easily be exchanged for a brightfield condenser which is also included
CONDENSER FOR BRIGHTFIELD (SUPPLIED)
PHASE CONTRAST CONDENSER WITH SLIDER (OPTIONAL)
There is a choice of two optional NA. 1.25 phase contrast condenser sets with phase contrast sliders and plan phase contrast objectives. The first version comes with plan phase 10x and S40x objectives with matching slider, the second version comes with plan phase 20x and S100x oil immersion objectives. Available for iScope® 160 mm and IOS infinity versions
All sets are supplied with a centering telescope and a green opaque filter
(Photo: IS.9162 – Phase contrast set)
FOCUSING
To upgrade an existing iScope® to darkfield a cardioid condenser with integrated high powered 5 W LED illumination and external power supply (IS.9150) is available. One also has to purchase a 86.521, Plan PL S100x objective with built-in iris diaphragm or a IS.7200-I super contrast plan PLi S100x infinity corrected objective
ILLUMINATION FOR DARKFIELD
High powered 3 W LED, built-in the cardioid mirror condensor
ILLUMINATION FOR BRIGHTFIELD
As a standard supplied with:
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
PACKAGE CONTENT
Supplied a height adjustable Abbe N.A. 1.25 condenser for brightfield, power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective. All packed in polystyrene boxes
Fluarex™ objectives are made of low-absorption glass. Fluarex™ is a trademark of Euromex microscopen bv. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
CONDENSERS
For AI.1xxx and AI.3xxx models
For AI.4xxx models
WD = Working distance
CONDENSER FOR HOFFMAN CONTRAST
All models can be equipped with a Hoffman condenser and slider with Hoffman slits for 10/20/40objectives. Needs Hoffman objectives
SLIDER FOR 3D RELIEF CONTRAST
All models can be equipped with a 3D relief contrast slider. Works for standard condenser and Plan or Plan Semi-Apo IOS 10/20/40x objectives
FOCUS ADJUSTMENT
ILLUMINATION
SMART LIGHT CONTROL
This intelligent function:
NEOLED
The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length
Four main benefits:
PACKAGE CONTENT

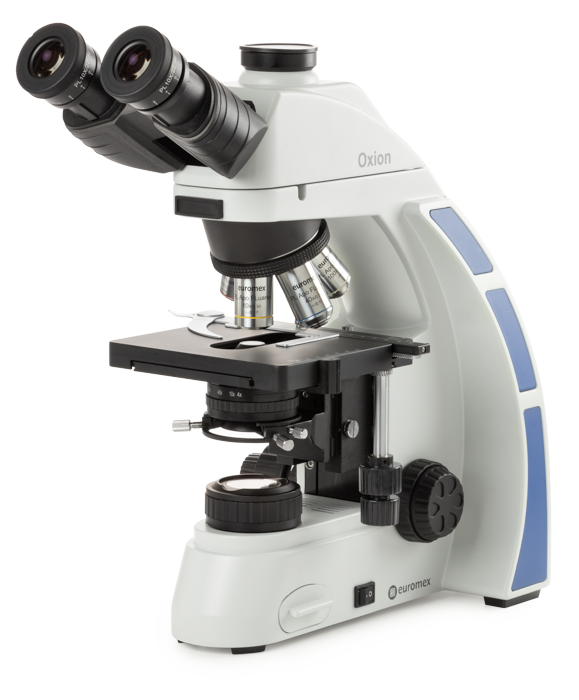

The Oxion series has been designed with all kind of Life Sciences applications and great durability in mind. This resulted in a modern, robust and high level microscope for everyday use, equipped with excellent optical and mechanical components. Specific attention to production methods resulted also in an excellent price/performance ratio
The microscopes of the Oxion series are dedicated to professionals in Life Sciences applications, laboratories of universities or research centers, but also for routine medical applications and veterinary medicine. Besides the brightfield contrast method, configurations with darkfield contrast or simple polarization can be used
Thanks to the high resolution optics and state-of-the-art components, these microscopes can be widely used from routine to fundamental research applications
EYEPIECES
• HWF 10X/22 mm eyepieces with ± 5° diopter adjustements on both eyepieces
• All eyepieces can be secured with an Allen screw
HEAD
• Binocular and trinocular Siedentopf type heads with 30° inclined tubes
• Interpupillary distance from 50 to 75 mm
• A unique rotating system allows an ergonomical positioning of both tubes in an upper (431 mm) and in a lower position (397 mm)
• An ergonomic tilting head is also available. (OX.5700-ADD)
NOSEPIECE
Reversed nosepiece for a maximum of five objectives on ball bearings
OBJECTIVES – IOS INFINITY CORRECTED SYSTEM
• Semi plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.40 and S60x/0.85 objectives
• Plan phase contrast S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan semi apochromatic Fluarex 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.50 objectives
As an option available: plan 20x/0.40 infinity corrected IOS objective and plan S60x/0.85 infinity corrected IOS objective
All S40x, S60x and S100x oil immersion objectives are spring loaded.
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated
STAGE
Equipped with double slide holder
CONDENSER FOR BRIGHTFIELD
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
• A darkfield stop in slider can be inserted in the condensor for for darkfield contrast up to 400x magnification (optional)
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control
ILLUMINATION FOR BRIGHTFIELD
STORAGE AND TRANSPORTATION
from left to right: OX.3011 – AE.9916
PACKAGE CONTENT
• Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with a S100x objective
• All packed in a polystyrene box

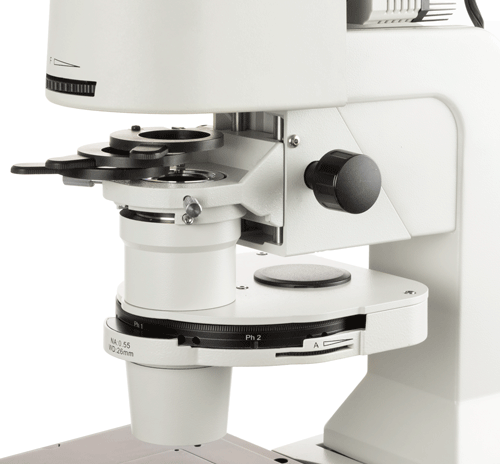

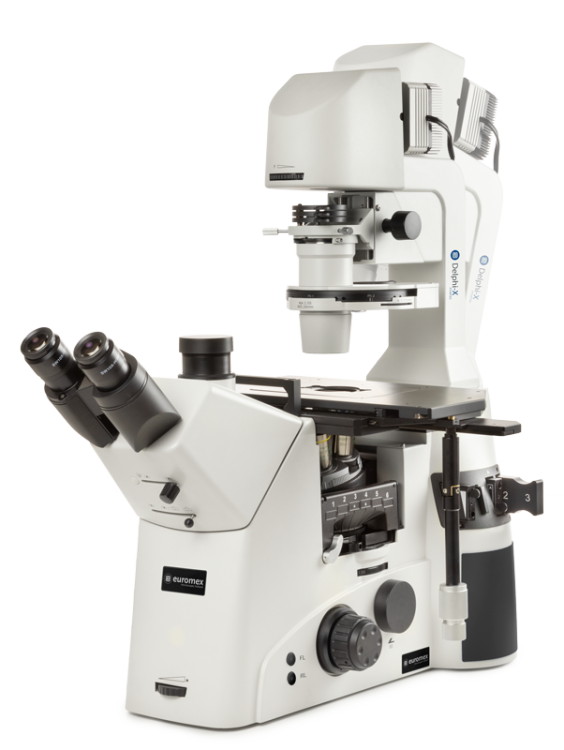

Delphi-X Inverso™ is an inverted microscope for the professional with demanding applications of living cell cultures and stained samples. It is available in two configurations:
Super contrast semi-apochromatic objectives with collar adjustment ring assure perfect observation of cells or tissues in 1.2 mm thick Petri dishes or flasks
EYEPIECES
Pair of DIN HWF plan 10x/25 mm or 10x/22 mm eyepieces with diopter adjustment (optional)
HEAD
Trinocular 45° inclined tubes. Interpupillary distance of 47 to 78 mm. Trinocular head with 100-0, 80/20 and 0/100 positions
NOSEPIECE
Revolving sextuple nosepiece on ball-bearings. The nosepiece can be equipped with DIC prisms for the 10x, 20x and 40x objectives
OBJECTIVES
Fluarex™ objectives are made of low-absorption glass
Fluarex™ is a trademark of Euromex microscopen bv
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
Stage 340 x 230 mm, equipped with a coaxial mechanical 130 x 85 mm X-Y stage. Supplied with:
Metal insert for Teraski plates (83.3 x 58.0 mm)
CONDENSER
Rotating N.A. 0.55 condenser with 6 positions, iris diaphragm and filter holders. Working distance is 26 mm. Supplied with phase contrast annuli for 10x/20x, 40x and 60x objectives, brightfield position and slots for optional DIC prisms. Three filter holders allow the insertion of Ø 38 mm filters in the optical path. The arm with condenser can be tilted backwards for convenient access to the stage. This allows easy placement of large objects like flasks and Petri dishes
MAGNIFICATION CHANGER
A magnification changer with a 1.5x lens allows intermediary magnifications of 1.5 times the standard objective magnifications. For example switching from 20x to 30x or from 60x to 90x magnification can be done without the need to change objectives
FLUORESCENCE FILTER SET WHEEL
The Delphi-X Inverso is supplied with a 6-position fluorescence filter set wheel. See photo below. (More information on fluorescence on the Delphi-X Inverso fluorescence webpage)
FOCUS ADJUSTMENT
Coaxial 10 mm coarse and fine adjustments, 1 μm precision and with friction adjustment
ILLUMINATION
Transmitted 5 W LED or 100 W halogen Intensity adjustable with internal 100-240 V power supply. Fuse holder 5 A / 250 V. Delphi-X Inverso can be extended with fluorescence equipment
PACKAGE CONTENT
Supplied with metal insert for Ø 38 mm cell culture dish and a metal insert for Ø 54 mm cell culture dish with 76 x 26 mm slides, metal insert for Multiwell plates, metal insert for Teraski plates, blue and green interference Ø 38 mm filters, power cord, dust cover, green filter and alignment telescope and user manual
ICSI SET
(Intracytoplasmic sperm injection)
Set includes two 3D hydraulic joysticks, two pipette setup mechanisms, one connection bar with moving handle, two air injectors with tubing and pen type micromanipulation, pipette holder, two metal plates for injectors, one set of Allen wrenches, one ruler for mechanic home position adjustment. Unit is packed in a solid carry case
HEATING STAGES AE.8010 AND AE.8015
Heating glass stage for Euromex microscope stage with 110 mm circular hole. The glass plate fits the circular opening of the X-Y stage and enables a flat glass object-plate with constant temperature. The stage has an aluminum frame for superior resistance and flatness. Glass thickness 0.5 mm. Plate diameter 110 mm
Controller AE.8010
Controller AE.8015
(photo: AE.8015 with heating stage)
This is the economic and compact single-channel Temperature Controller version of the AE.8010. This model combines performance and simplicity at a economic price
For biological and medical applications fluorescence microscopes are used to observe certain parts of living cells and tissues with help of fluorophores. One or more fluophores are added to the parts of the specimen to be observed. When the fluorophores are exposed to so-called exicitation light, the excitation energy is absorbed by the fluorophore that start emitting so-called emission light that can be observed by the microscope. One can distinguish tumor cells from other cells, follow biological processes or prove the presence or absence of antibodies, etc
The excellent optics and mechanical components make the iScope a state-of-the art microscope that is suitable for fluorescence applications in Life Science and Biotechnical fields
The iScope fluorescence microscopy can be supplied with:
• 6-position rotating attachment with 100 W mercury vapor light source
• 3-position slider attachment with 100 W mercury vapor light source
EYEPIECES
Extended EWF 10x/22 mm eyepieces, Ø 30 mm tubes. Eyepieces can be secured to the tubes. The trinocular head of the Plan infinity corrected models (PLi and PLFi) has a light path selector (100:0 / 50:50) and ± 5 diopter adjustments on both tubes.
The trinocular head of the E-Plan infinity corrected models (EPLi) has a fixed built-in light path beamsplitter (50:50) and ± 5 diopter adjustment on the left tube
HEAD
To order an iScope® with tilting head use reference IS.3158-xxx (Epli/Pli/PLFi)
To order an iScope® with tilting trino head use reference IS.3159-xxx (EPLi/Pli/PLFi)
NOSEPIECE
Revolving quintuple reversed nosepiece on ball bearings
OBJECTIVES
The EPLi and PLi objectives are suitable for Blue and Green standard filter sets and other filter sets in the visible spectrum.
The plan Fluarex PLFi ™ objectives are suitable for the entire spectrum including Ultra Violet and Violet
* optional
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm mechanical stage. The iScope® rackless stage has no protruding parts, enabling more smooth movements and is safer
CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield with magnification indication.
Also accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/ S100x oil immersion IOS objectives for economical phase contrast. A slider with a simple dark stop for darkfield up to 400x magnification is also available for this condensor
CONDENSER FOR ZERNIKE PHASE CONTRAST
An optional height adjustable Zernike NA. 1.25 phase contrast disc condenser with darkfield stop position for darkfield contrast observation up to 400x magnification and plan phase 10/20/S40x and S100x oil immersion PLPHi IOS objectives
FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control
ILLUMINATION
3 W adjustable Köhler NeoLED diascopic illumination with internal 100-240 V power supply
The innovative NeoLED design offers larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
The Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also available for other models as an option
ILLUMINATION FOR FLUORESCENCE
The 6-position rotating and 3-position slider fluorescence attachments are supplied with:
The iScope® fluorescence microscopes equipped with a 100 W mercury vapor light source can be supplied with more specific, optimized and application related fluorescence filters sets (see next pages)
LED ILLUMINATION FOR FLUORESCENCE
Two LED sources for fluorescence are available for 4 or 9 excitation wavelengths.
See our products LE.6400 and LE.6900
STANDARD GENERAL PURPOSE FLUORESCENCE FILTER SETS
IS.9745 – Blue excitation filter set
EX: 460-490 nm bandpass DM: 500 nm EM: 520 nm longpass
IS.9746 – Green excitation filter set
EX: 510-550 nm bandpass DM: 570 nm EM: 580 nm longpass
IS.9748 – UV excitation filter set
EX: 330-385 nm bandpass DM: 400 nm EM: 420 nm longpass
IS.9747 – Violet excitation filter set
EX 400-410 nm bandpass DM 455 nm EM 455 nm longpass
ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
iScope allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
CONFIGURATIONS
The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective. Models with 100 W mercury vapor light source have a UV protection shield. All packed in polystyrene boxes

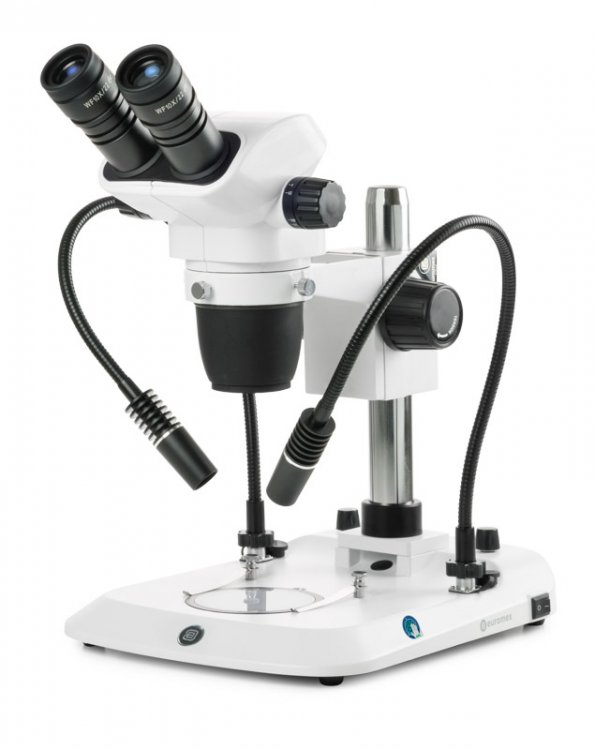

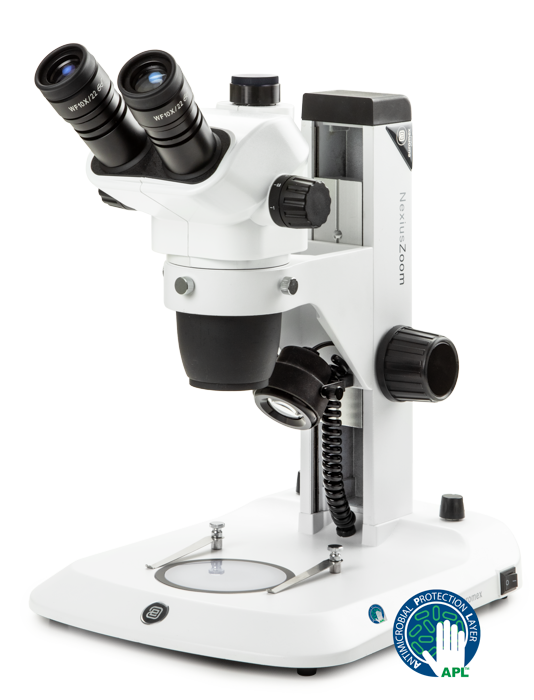

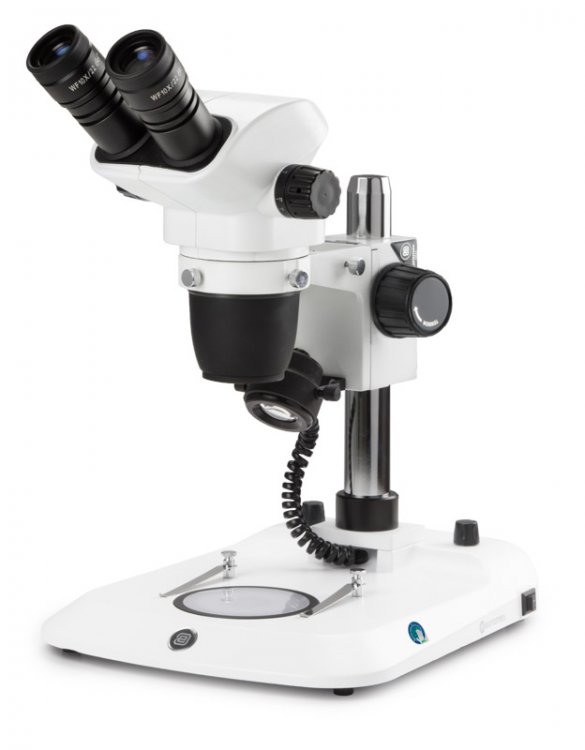

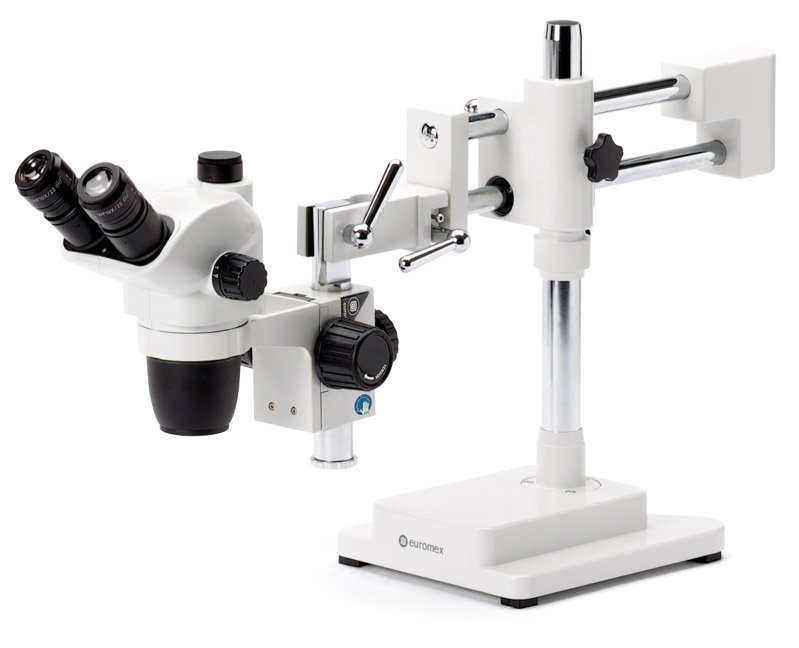

The NexiusZoom and NexiusZoom EVO stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples
These stereo microscopes are supplied with a large choice of stands, with or without LED illumination. Ideal for a wide variety of educational and laboratories applications. With additional lenses and objectives magnifications from 3.3 up to 220x can be achieved
Check out the product video
EYEPIECES
HEAD
Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments
Interpupillary distance adjustable between 54 mm and 75 mm. Trinocular head is supplied with a fixed light path beamsplitter (50:50).
The NexiusZoom EVO models are now equipped with click-stops
OBJECTIVES
Auxiliary lenses 0.3x, 0.5x, 0.75x, 1.5x and 2.0x are available for the standard NexiusZoom and for the NexiusZoom EVO
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Zoom | Aux. lens 0.3x | Aux. lens 0.4x | Aux. lens 0.5x | Aux. lens 0.75x | Objective 1x | Aux. lens 1.5x | Aux. lens 2x | |||||||
Total | F.o.v. | Total | F.o.v. | Total | F.o.v. | Total | F.o.v. | Total | F.o.v. | Total | F.o.v. | Total | F.o.v. | |
0.67 | 2 | 109.5 | 2.7 | 82.1 | 3.35 | 65.7 | 5.0 | 43.8 | 6.7 | 32.8 | 10.1 | 21.9 | 13.4 | 16.4 |
0.7 | 2.1 | 104.8 | 2.8 | 78.6 | 3.5 | 62.9 | 5.3 | 41.9 | 7.0 | 31.4 | 10.5 | 21.0 | 14.0 | 15.7 |
0.8 | 2.4 | 91.7 | 3.2 | 68.8 | 4.0 | 55.0 | 6.0 | 36.7 | 8.0 | 27.5 | 12.0 | 18.3 | 16.0 | 13.8 |
1.0 | 3 | 73.3 | 4 | 55.0 | 5.0 | 44.0 | 7.5 | 29.3 | 10.0 | 22.0 | 15.0 | 14.7 | 20.0 | 11.0 |
1.5 | 4.5 | 48.9 | 6 | 36.7 | 7.5 | 29.3 | 11.3 | 19.6 | 15.0 | 14.7 | 22.5 | 9.8 | 30.0 | 7.3 |
2.0 | 6 | 36.7 | 8 | 27.5 | 10.0 | 22.0 | 15.0 | 14.7 | 20.0 | 11.0 | 30.0 | 7.3 | 40.0 | 5.5 |
3.0 | 9 | 24.4 | 12 | 18.3 | 15.0 | 14.7 | 22.5 | 9.8 | 30.0 | 7.3 | 45.0 | 4.9 | 60.0 | 3.7 |
4.0 | 12 | 18.3 | 16 | 13.8 | 20.0 | 11.0 | 30.0 | 7.3 | 40.0 | 5.5 | 60.0 | 3.7 | 80.0 | 2.8 |
4.5 | 13.5 | 16.3 | 18 | 12.2 | 22.5 | 9.8 | 33.8 | 6.5 | 45.0 | 4.9 | 67.5 | 3.3 | 90.0 | 2.4 |
POLARIZATION
The NexiusZoom can be supplied with an optional 360° rotatable round stage with built-in polarization filter and/or an optional rotatable analyzer filter in mount to be screwed under the objective
MAGNIFICATIONS
Working distance and field of view with standard HWF 10x / 22 High Wide Field eyepieces of the standard NexiusZoom
Aux. = Auxiliary
Total mag. = Total magnification
F.o.v. = Field of view
Working distance and field of view with standard HWF 10x / 23 High Wide Field eyepieces of the NexiusZoom Evo
Zoom | Auxiliary lens | Auxiliary lens | Auxiliary lens | Auxiliary lens | Objective 1x | Auxiliary lens | Auxiliary lens | |||||||
Total | FoV | Total | FoV | Total | FoV | Total | FoV | Total | FoV | Total | FoV | Total | FoV | |
0.65 | 1.95 | 117.9 | 2.6 | 88.5 | 3.25 | 70.8 | 4.9 | 47.2 | 6.5 | 35.4 | 9.8 | 23.6 | 13.0 | 17.7 |
1.0 | 3.0 | 76.7 | 4.0 | 57.5 | 5.0 | 46.0 | 7.5 | 30.7 | 10.0 | 23.0 | 15.0 | 15.3 | 20.0 | 11.5 |
1.5 | 4.5 | 51.1 | 6.0 | 38.3 | 7.5 | 30.7 | 11.3 | 20.4 | 15.0 | 15.3 | 22.5 | 10.2 | 30.0 | 7.7 |
2.0 | 6.0 | 38.3 | 8.0 | 28.8 | 10.0 | 23.0 | 15.0 | 15.3 | 20.0 | 11.5 | 30.0 | 7.7 | 40.0 | 5.8 |
2.5 | 7.5 | 30.7 | 10.0 | 23.0 | 12.5 | 18.4 | 18.8 | 12.3 | 25.0 | 9.2 | 37.5 | 6.1 | 50.0 | 4.6 |
3.0 | 9.0 | 25.6 | 12.0 | 19.2 | 15.0 | 15.3 | 22.5 | 10.2 | 30.0 | 7.7 | 45.0 | 5.1 | 60.0 | 3.8 |
3.5 | 10.5 | 21.9 | 14.0 | 16.4 | 17.5 | 13.1 | 26.3 | 8.8 | 35.0 | 6.6 | 52.5 | 4.4 | 70.0 | 3.3 |
4.0 | 12.0 | 19.2 | 16.0 | 14.4 | 20.0 | 11.5 | 30.0 | 7.7 | 40.0 | 5.8 | 60.0 | 3.8 | 80.0 | 2..9 |
4.5 | 13.5 | 17.0 | 18.0 | 12.8 | 22.5 | 10.2 | 33.8 | 6.8 | 45.0 | 5.1 | 67.5 | 3.4 | 90.0 | 2.6 |
5.0 | 15.0 | 15.3 | 20.0 | 11.5 | 25.0 | 9.2 | 37.5 | 6.1 | 50.0 | 4.6 | 75.0 | 3.1 | 100.0 | 2.3 |
5.5 | 16.5 | 13.9 | 22.0 | 10.5 | 27.5 | 8.4 | 41.3 | 5.6 | 55.0 | 4.2 | 82.5 | 2.8 | 110.0 | 2.1 |
COMPATIBILITY TABLE AUXILIARY LENSES
MODELS | 0.3x | 0.4x | 0.5x | 0.75x | 1.5x | 2x |
NZ.9000/9005 |
|
| • | • | • | • |
NexiusZoom-P, -M, -PG |
|
| • | • | • | • |
NexiusZoom-P-ESD |
|
| • | • | • | • |
NexiusZoom-S |
|
|
| • | • |
|
NexiusZoom-S-ESD |
|
|
| • | • |
|
NexiusZoom-A, -AP | • | • | • | • | • | • |
NexiusZoom-U, -B, -BC | • | • | • | • | • | • |
NexiusZoom-U-ESD, -B-ESD | • | • | • | • | • | • |
STANDS
All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating

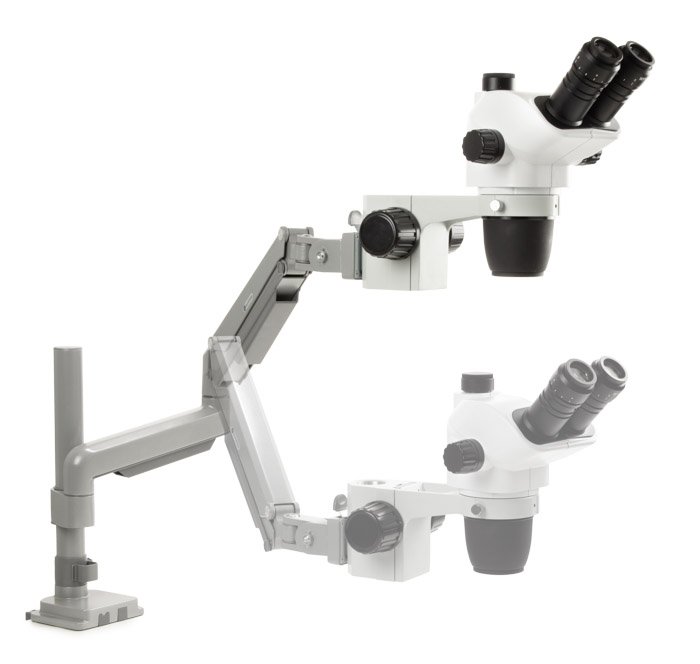

NZ.9005, NZ.9000 and NZ.9047
STAGE
NEW: 180 x 155mm X-Y mechanical stage with 76 x 55mm translation stage and transparent glass plate for NexiusZoom, fixed on stage of microscope. Only available with new microscopes (due to fixing), so it has to be ordered with the purchase of a microscope
(See picture to the left: NZ.9505)
ILLUMINATION
The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately
STORAGE
AE.9916
PACKAGE CONTENT
Supplied with power cord, a pair of eyecups, dust cover, a spare fuse and user manual. All packed in a polystyrene box
PRODUCT VIDEO
Check out the product video below and learn more about this microscope

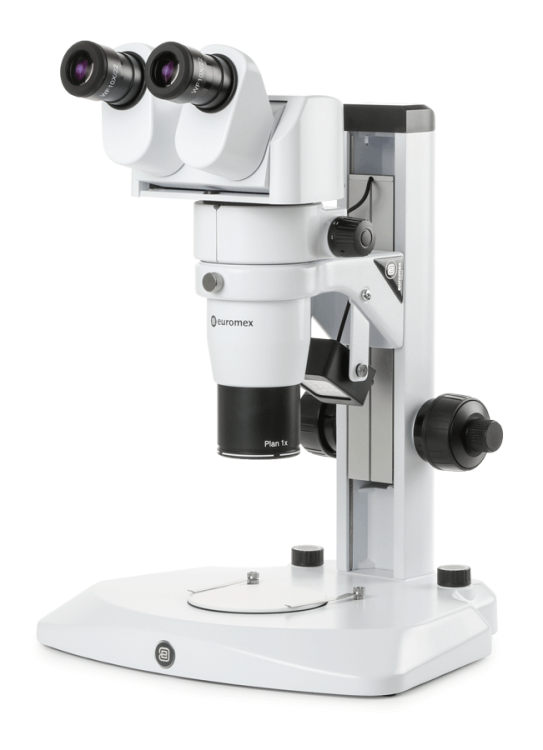

The modular stereo microscopes of the DZ series combine ergonomics with very high resolution optics. Either standard versions or customized models are available thanks to the large choice of central zoom units, eyepieces, stands and accessories
Six standard configurations are available for magnifications from 8 to 80 times. One can customize configurations for magnifications from 4x up to160 times around the central zoom bodies DZ.1000, DZ.0800 or DZ.0630

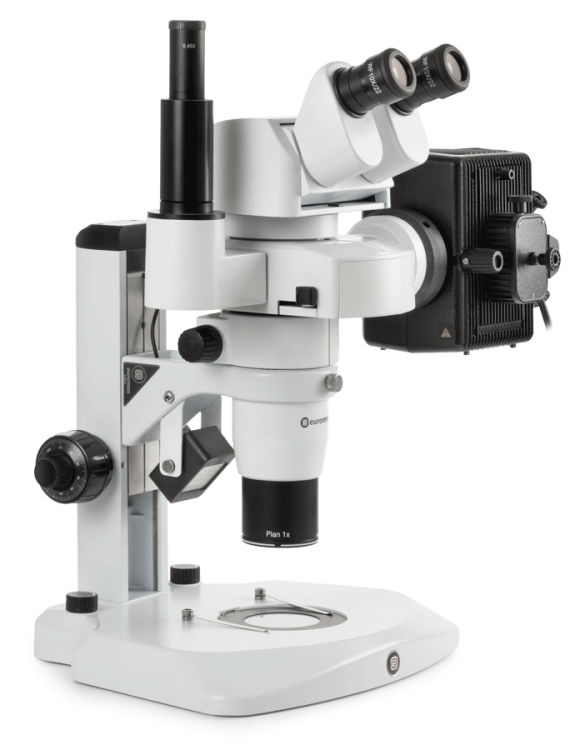

A fluorescence illumination unit enables scientific research like for studies of vertebrate development and gene function, teratology, genetics and environmental sciences
The modern DZ stereomicroscopes are modular configured around a central zoom body. The first with a 1:6,3 zoom ratio, a second with a 1:8 zoom ratio and a third with a 1:10 zoom ratio. The DZ modular microsope – with his Extra Wide Field eyepieces, Plan Apochromatic 0.5x, 1x and 2x common objectives, the ergonomical stereo head with 0-35° inclined tubes or a fix stereohead with 20° inclined tubes, stand with incident and transmitted LED illuminations – belongs together with the Euromex D series, to the top stereomicroscopes of Euromex
EYEPIECES
Pair of EWF 10x/22 mm eyepieces

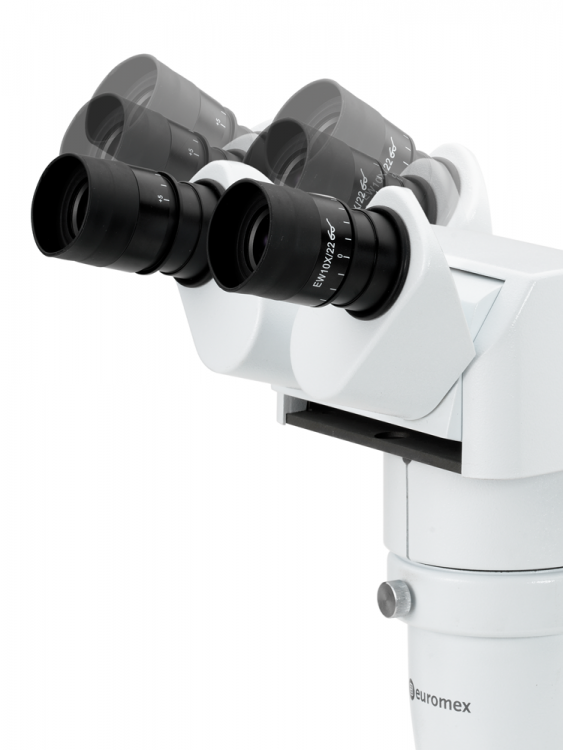

HEAD
• Ergonomic binocular 0-35° tilting head
• Binocular 20° tilted head
• Diopter ± 5 adjustment on both eyepieces
• Interpupillary distance from 55 to 75 mm
• Photo ports for one or two cameras
CENTRAL ZOOM UNITS
Three central zoom units are available:
• 1:6.3 for total magnifications from 8 to 50x
• 1:8 for total magnifications from 8 to 64x
• 1:10 for total magnifications from 8 to 80x
COMMON MAIN OBJECTIVE
• Standard configurations are supplied with a 1x plan apochromatic Common Main Objective, working distance 78 mm.
• Other plan apochromatic Common Main Objectives 0.5x (working distance 126 mm) and 2x (working distance 33 mm) are also available.
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated
STAND
• Large ergonomic stand with ø 100 mm object plate and two object clamps
• Coaxial coarse and fine adjustment
• A universal stand and articulated arm stands without illumination are also available for configurations built according to customer’s specifications

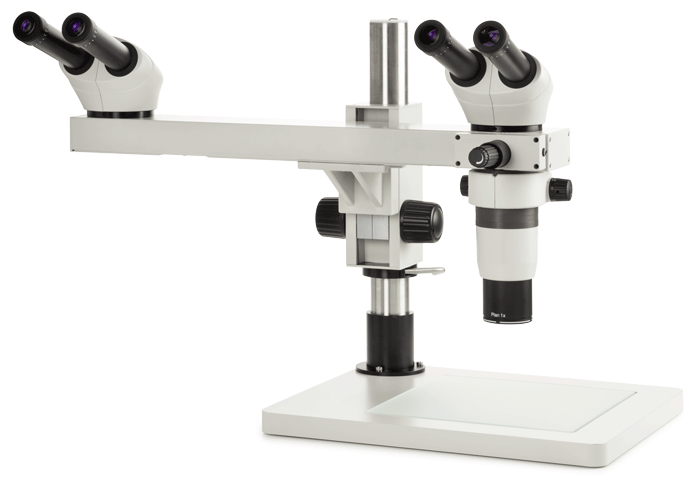

• The multihead systems come with a 420 x 350 mm stage – without illumination – and with a 254 x 254 mm glass plate
ILLUMINATION of standard DZ.5040 STAND
• Transmitted and incident 3 W LED illuminations with a built-in 100-240 V power supply
• Both illuminators can be used simultaneously and the light intensities can be adjusted separately
PACKAGE CONTENT
• Supplied with power cord, dust cover, a spare fuse and user manual.
• All packed in a polystyrene box
STANDARD CONFIGURATIONS
• All 9 standard configurations are equipped with EWF10x/22mm eyepieces, 1x plan apochromatic Common Main Objective
• All 9 standard configurations are equipped with DZ.5040 rack & pinion stand with incident and transmitted LED illumination
MAGNIFICATIONS AND FIELD OF VIEWS FOR STANDARD CONFIGURATIONS
BUILD YOUR OWN MICROSCOPE
A customized DZ series stereo microscope can be configured to customer’s specifications by choosing one of the three central zoom units DZ.0630, DZ.0800 or DZ.1000 and adding the necessary components for the application. Pair of eyepieces, an ergonomic 5 to 35° tilting head or fix 20° inclined head, a 0.5x, 1x or 2x Common Main Objective (CMO), a large ergonomic LED stand, a boom or an articulated arm stand. Other accessories such as a photo/camera unit or dual iris diaphragm can complete the configuration. Multihead versions are available for simultaneous viewing

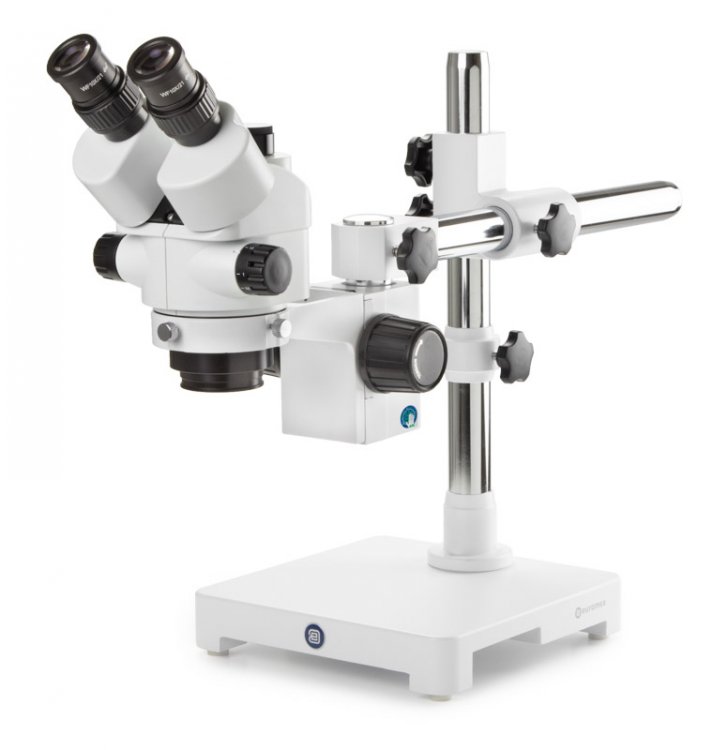

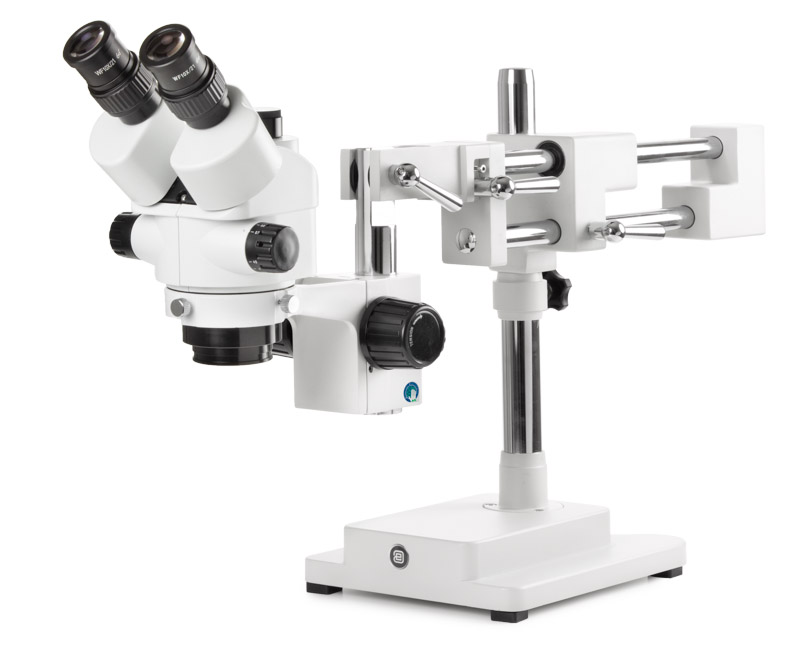

Euromex BlueLine offers a high-quality range of stereo microscope models, which are specifically meant for laboratory and higher education use

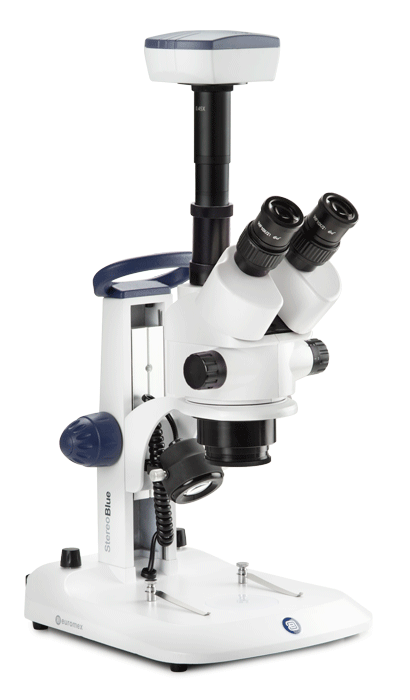

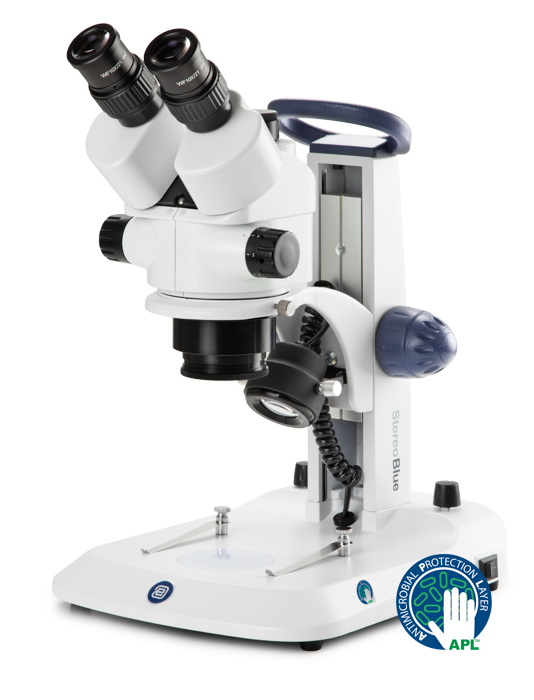

StereoBlue microscopes are especially developed for laboratory applications, education and greatly appreciated by biologists, entomologists, geologists, mechanical and electronic engineers and other professionals like jewelers and dental technicians. These microscopes are available with dual pair of objectives or zoom objective for magnifications from 3.5x to 135x and incident and transmitted LED illuminations
EYEPIECES
Pair of WF10x/21 mm eyepieces supplied with eyecups
HEAD
EYEPIECES – 10x/21 mm |
| ||||
Magnification | Working | Minimum | Maximum | Maximum | Minimum |
0.5 | 170.0 | 3.5 | 22.5 | 59.9 | 9.3 |
0.75 | 114.0 | 5.3 | 33.8 | 40.0 | 6.2 |
Standard | 100.0 | 7.0 | 45.0 | 30.0 | 4.6 |
1.5 | 48.0 | 10.5 | 67.5 | 19.9 | 3.1 |
EYEPIECES – 15x/15 mm | |||||
Magnification | Working | Minimum | Maximum | Maximum | Minimum |
0.5 | 170.0 | 5.3 | 33.8 | 42.9 | 6.7 |
0.75 | 114.0 | 7.9 | 50.6 | 28.6 | 4.4 |
Standard | 100.0 | 10.5 | 67.5 | 21.4 | 3.3 |
1.5 | 48.0 | 15.8 | 101.3 | 14.3 | 2.2 |
EYEPIECES – 20x/10 mm | |||||
Magnification additional lens | Working | Minimum | Maximum | Maximum | Minimum |
0.5 | 170.0 | 7.0 | 45.0 | 28.6 | 4.4 |
0.75 | 114.0 | 10.5 | 67.5 | 19.0 | 3.0 |
Standard | 100.0 | 14.0 | 90.0 | 14.3 | 2.2 |
1.5 | 48.0 | 21.0 | 135.0 | 9.5 | 1.5 |
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
DUAL MAGNIFICATION MODELS
ZOOM MODELS
Zoom range | Magnification | Field of view | Working distance |
0.7x to 4.5x | 7x to 45x | 29.9 mm to 4.6 mm | 100 mm |
0.5x to 5.5x (EVO) | 5x to 55x | 38 mm to 3.9 mm | 100 mm |
MAGNIFICATIONS
Working distance and field of view specifications
STANDS
ILLUMINATION
STORAGE AND TRANSPORTATION
from left to right: AE.9919 – AE.9916
ANTI -THEFT SLOT
At the back of the microscope a Kensington Security slot is placed, which can be used to secure the instrument from theft (not on the -U and B models)
PACKAGE CONTENT
Supplied with power cord, dust cover, eyecups, a spare fuse, Ø 60 mm transparent and black/ white stage plates and user manual. All packed in a polystyrene box
The spare fuse, Ø 60 mm transparent and black/ white stage plates are not applicable for -U and -B models

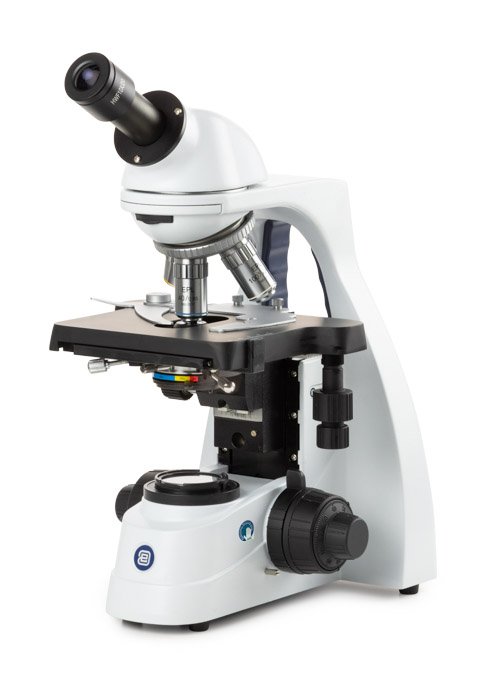

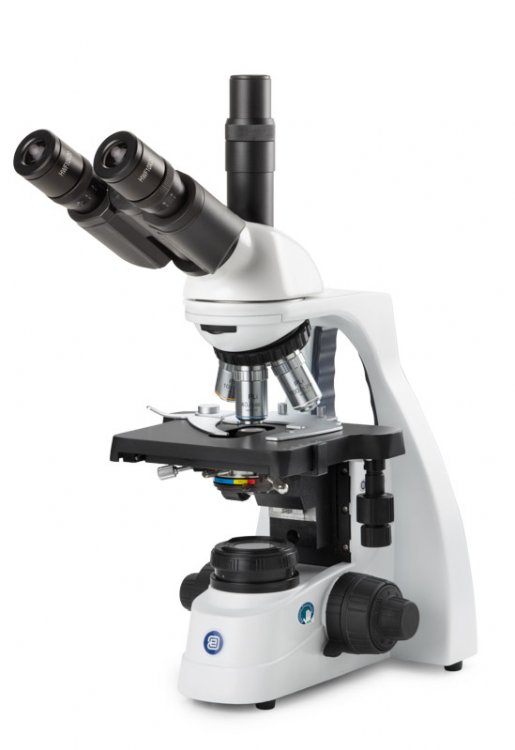

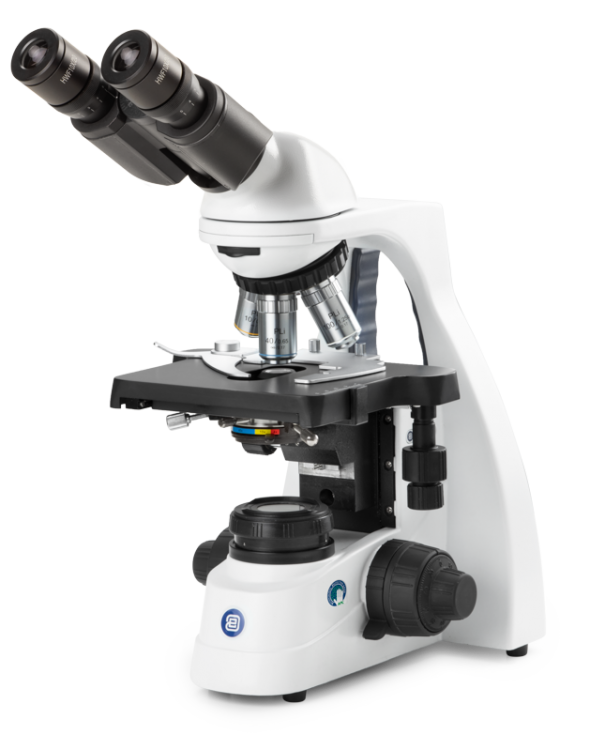

The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Apart from excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20 mm eyepieces and objectives for bright field, phase contrast and dark field
The design of the bScope is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. Phase contrast and cardioïd mirror dark field models are available. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage
EYEPIECE(S)
High wide field HWF 10x/20 mm secured eyepiece(s) with 20 mm field of view. The eyepiece of monocular models is supplied with pointer
HEAD
NOSEPIECE
Revolving and reversed ball-beared quadruple or quintuple nosepiece
OBJECTIVES – 45 MM PARFOCAL
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
STAGE
CONDENSER FOR BRIGHTFIELD
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color coded. Optionally available swing-out Abbe condenser (BS.9105)
ZERNIKE CONDENSER FOR PHASE CONTRAST
The in height adjustable Zernike NA. 1.25 phase contrast disc condenser comes with phase annuli for 10/20/S40x and S100x phase contrast objectives, an iris diaphragm, a swing-out filter holder and also a BF position for brightfield contrast. Phase contrast objectives in PLPHi phase contrast versions. Supplied with alignment telescope and green filter
CONDENSER WITH SLIDER(S) FOR PHASE CONTRAST
The in height adjustable NA. 1.25 simple phase contrast condenser has a free slot for either a slider for 10/S40x phase contrast objectives OR a slider for 20/S100x phase contrast objectives. The condenser has an iris diaphragm and filter holder. The condenser also includes a BF position for brightfield contrast. Phase contrast objectives in PLPHi versions. Supplied with alignment telescope and green filter
CONDENSER FOR DARKFIELD
A state-of-the-art condenser equipped with reflective cardioid mirrors, with an integrated high powered 3 W LED light source. Together with a S100x objective with built-in iris diaphragm this forms a 1000x magnification darkfield solution. The power supply of the 5 W LED light source is built in the microscope. The darkfield condenser can easily be exchanged for a brightfield condenser which is also included
DARKFIELD EQUIPMENT
The BS.1153-EPL/DF is equipped with a darkfield oil immersion cardioïd mirror condenser with a integrated 3 W LED illumination and a plan PL S100x oil immersion objective with built-in iris
POLARISATION
The bScope has an integrated slot above the nosepiece for an optional polarization filter
ILLUMINATION
The microscopes of the bScope are equipped with a 3 W NeoLED adjustable illumination system for increased light output and a 100-240 Vac integrated power supply. On request, rechargeable batteries are also available
NEOLED™ ILLUMINATION
The 3 W adjustable Köhler NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use.The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
KÖHLER ILLUMINATION
A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
The Köhler illumination is optional for non-IOS models
BSCOPE® DIGITAL
CAMERA
The digital bScope microscopes are equipped with a 5.0 MP 1/2.5 inch CMOS USB-2.0 camera, 24 bits color depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). Dynamic range is 76 db and signal/noise ratio 41 db. Supplied with ImageFocus Alpha software, USB-2.0 cable and a micrometer 1mm/100 calibration slide
SOFTWARE
The capture and analysis ImageFocus Alpha software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Measurements and annotations can be done on live or captured images. Compatible with Windows 10 and higher, both 32 and 64 bits configurations. A Mac OS version is also available. Free updates can be downloaded from our website
Further specifications are identical to the analog bScope® models

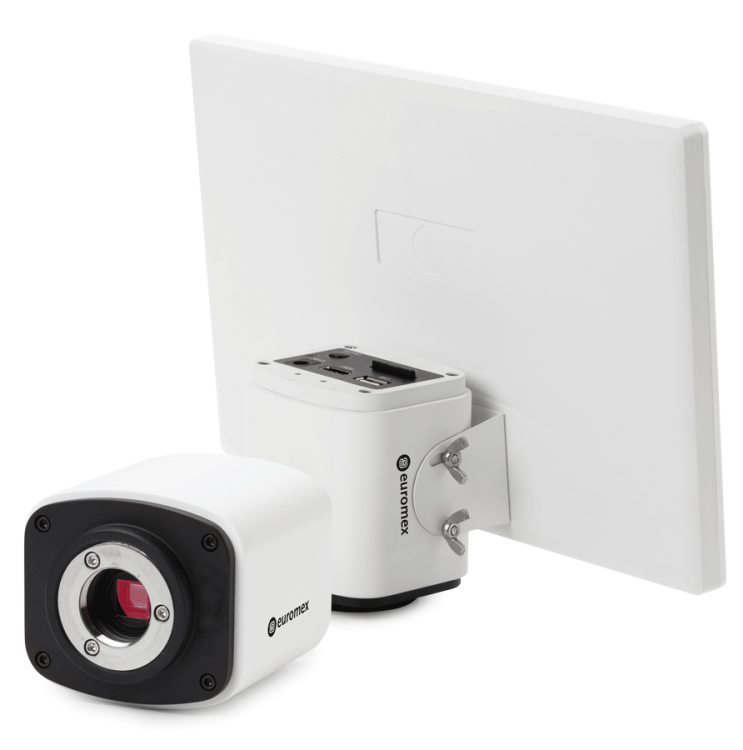

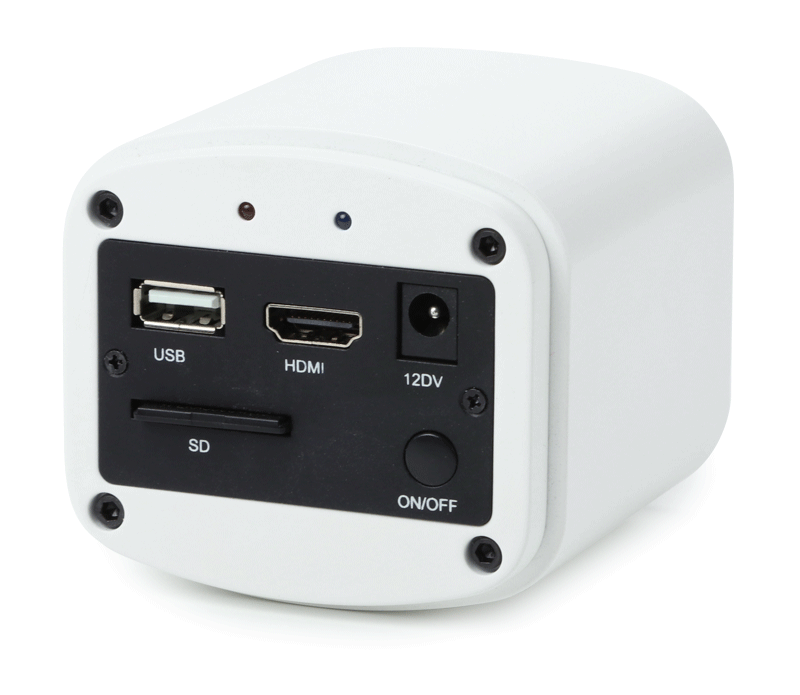

The Euromex HD-Ultra camera offer the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality camera can be used for biological, metallurgical or stereo microscopes
High definition HD1080p CMOS color camera
with HDMI and USB-2 interface
The real time images generated with this standalone camera provide excellent color rendering at high frame rates, up to 60 frames per second
The HD-Ultra high definition camera can be used in two modes, in a stand-alone with its embedded mouse-driven software or in a computer controlled mode
Suitable for all Euromex microscopes and most Zeiss, Leica, Olympus and Nikon models.
See our adapters on our website or the attached datasheet on this page
The real time images generated with these camera provide excellent color rendering with frame speeds up to 60 fps
COMPUTER CONTROLLED VERSUS STAND-ALONE
There are two ways to use the HD-Ultra (ref.VC.3036 / VC.3036-HDS) camera, computer controlled or as a standalone system
STAND-ALONE
No need to open or start a computer or any computer knowledge to use these camera’s. Most camera settings are done automatically and therefore these cameras are very user friendly. This results in faster, more flexible and compact working conditions
Simply connect the camera to a high definition HD screen, TV-HD or HD-beamer with a HDMI input and the system is ready to go. The mouse-driven built-in software of the camera enables capturing 3264 x 1836 pixels JPG images or recording 1080p videos on the integrated SD memory card. The captured images or recorded video’s can be very easily reviewed or replayed on the HD screen. The HD-Ultra even offers a full range of measuring functions on life and captured images
The embedded software of the camera features functions like Digital Zoom in/out, Horizontal Flip, Vertical Flip, Auto-Exposure and Manual Exposure Time (0-10 sec), Gain, RGB, White balance, Gamma, Sharpness, Saturation and Contrast and Grids. D
Different measurements functions can be done on live or on captured images! These functions include line and free curve, polygon and rectangle, angle, circle through three points and circle with radius measurements. Results can be exported as CSV or txt files
These key properties make the cameras ideal for Life-, Materials Sciences applications, for industry, education and live demonstrations
COMPUTER CONTROLLED
Users who want more camera controls and more functions, can also connect the camera to a computer and take benefit of the power of the Euromex ImageFocus Plus software. It runs on Windows 10 and higher, both 32 and 64 bits. The software can be installed in one of the 6 different languages (English, French, German, Dutch, Spanish and Russian. Euromex supplies free updates on www.euromex.com
Besides extended camera settings, the software can save images in JPG, TIFF or BMP formats or recording videos in .avi format on the hard disk of the computer. The software offers different measurements functions on life and captured images and also full control over the camera parameters. Specific functions for fluorescence like histogram adjustments and combining captured fluorescence images are also available with the ImageFocus Plus software
PACKAGING
The HD-Ultra 1080p camera (ref. VC.3036) is supplied with USB-2 (A-A type) cable, C-mount adapter with 0.37x objective*, a 16 GB SD card, USB-2 mouse, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10μm/division) calibration slide and external 12V 2A power supply. Works with ImageFocus Plus software. For Windows 10/11

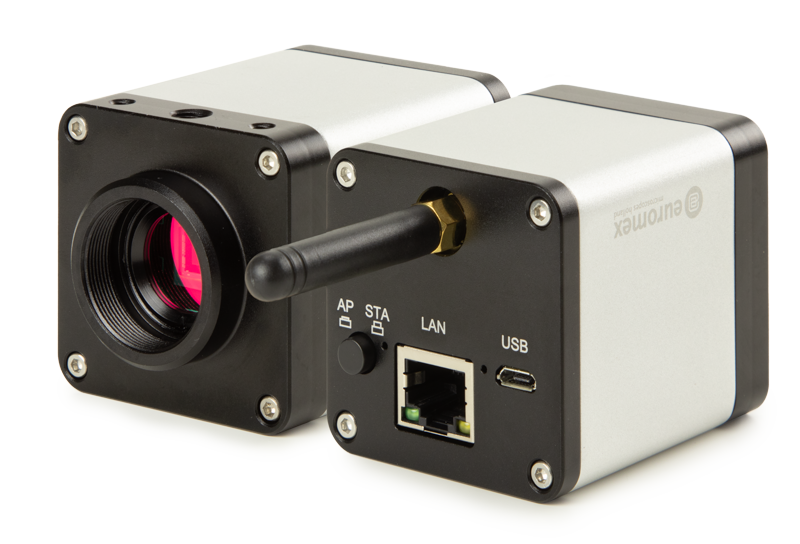

The CMEX-5 WiFi-4 camera is equipped with a 4 MP Sony CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems
CMEX-5 WiFi-4 4.0 MP digital WiFi + USB + LAN camera
with 1/1.8 inch Sony CMOS sensor

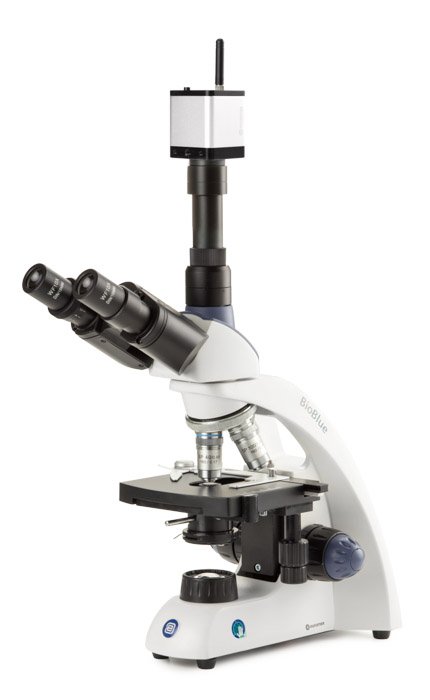

Adding a WiFi camera to your microscope is ideal for wireless sharing/viewing microscope images. Ideal for demonstrations or places were remote viewing is needed
Apps for Android for this camera are supplied on cd or can be downloaded from this page under Downloads (free of charge) of from the Apple Store (free of charge). ImageFocus Alpha software can be used for Windows based devices and WiFi connected PC and is supplied on CD. The camera is powered by the included USB charger or a computers USB port. Standard C-mount mounting with 0.5x C-mount objective included
TECHNICAL SPECIFICATIONS CMEX-5 WiFi-4 (DC.5000-WiFi-4)
Sensor
CMOS 1/1.8 inch
Pixels
2688 x 1512 pixels, 4.0 Mpix
Scan mode
Electronic rolling shutter
Pixel size
2.9 μm x 2.9 μm
Filter
RGB color filter and IR-cut off filter (380-650 nm)
Mount
C-mount
Max fps
Up to 30 frames per second*
ADC
12 bits
Sensitivity
921mV with 1/30 sec
Exposure
Automatic or manual, from 0.021- 1000 ms
White balance
Automatic/manual
Dynamic range
48 db
S/N max
44 db
Data interface LAN
30fps*@2688*1512 H264 encoded video and Jpeg image capture
Data interface USB
MJPEG/H264 real-time images, 30fps*@2688*1512
*Frame rates were determined at optimal conditions
Operation
-10 – 50° C, 30-80 % humidity
Storage temperature
-20 to 60° Celsius
Power supply
Micro USB DC 5V/1A adapter
Supplied with
0.5x objective with C-mount (DC.1355), 30 and 30, 5 mm to 23.2 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), USB charger and USB-2 cable, CDROM with ImageFocus Alpha software, Android .apk app. A Mac OS version is also supplied (with a few differences in features). A carton box
Compatibility
Windows 10 and higher (32 and 64 bit configurations), Android Pad and Phones, Mac PC, iPad or iPhone
Requirements
PC with Intel Core2 2.8 GHz or higher or equivalent. Minimum 4Gb RAM memory PC with WiFi enabled. Android 5.1 and above is supported, Android 10.0 and above is recommended
Product number
DC.5000-WiFi-4

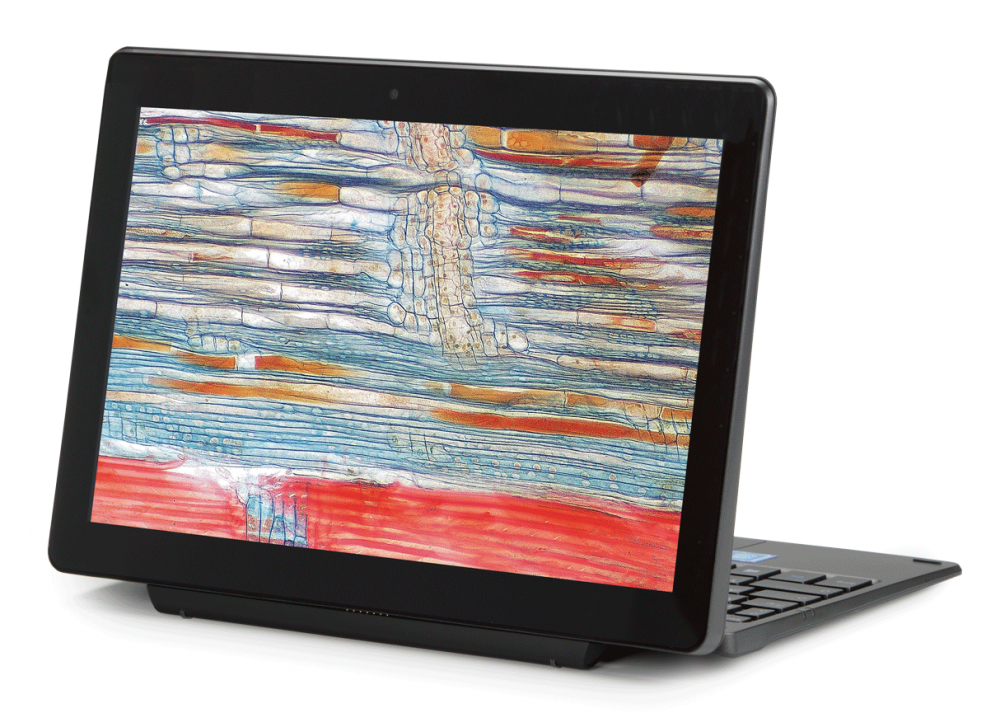

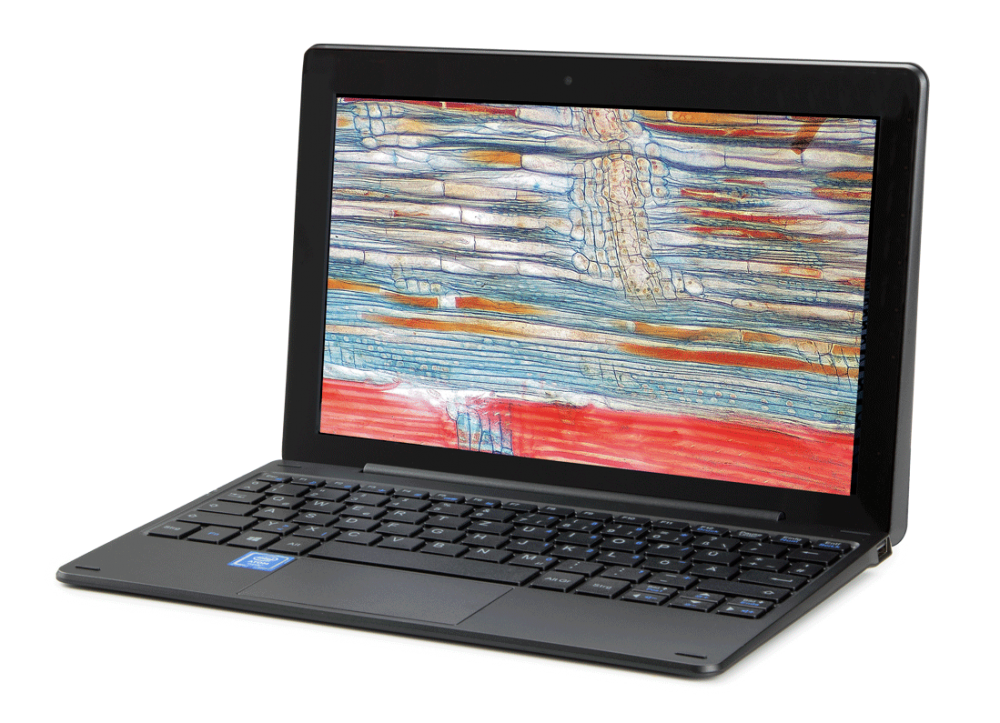

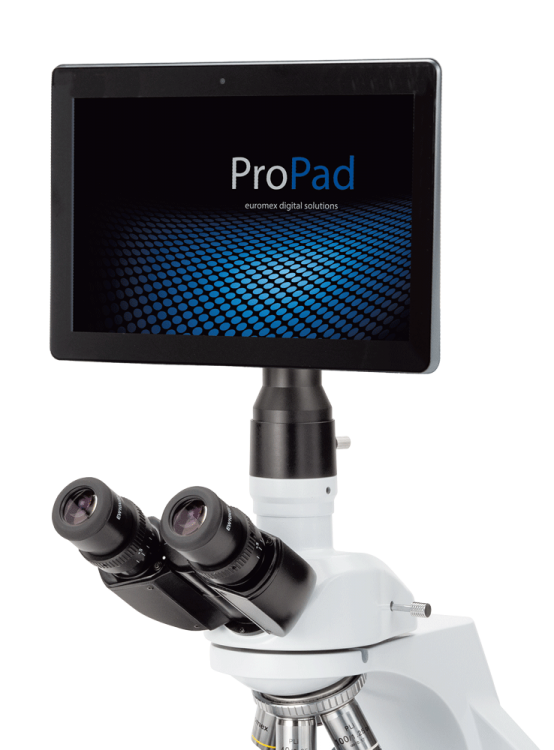

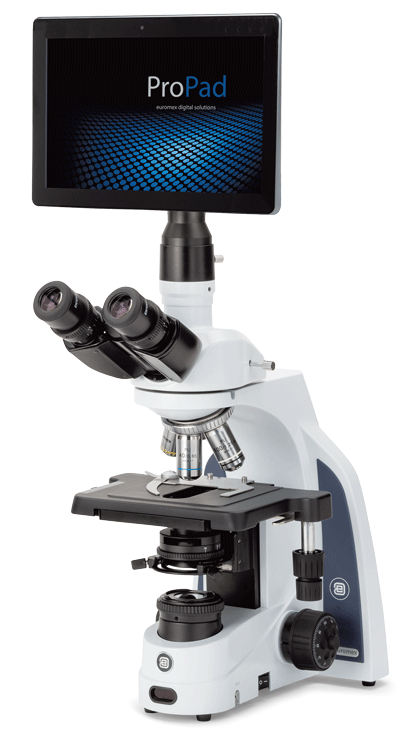

The ProPad Full HD (1280×800) display reveals bright colours and crisp, microscopic images. The ProPad consists out of a high quality microscope camera system and a fully detachable tablet running the latest ImageFocus versions. You can take it anywhere

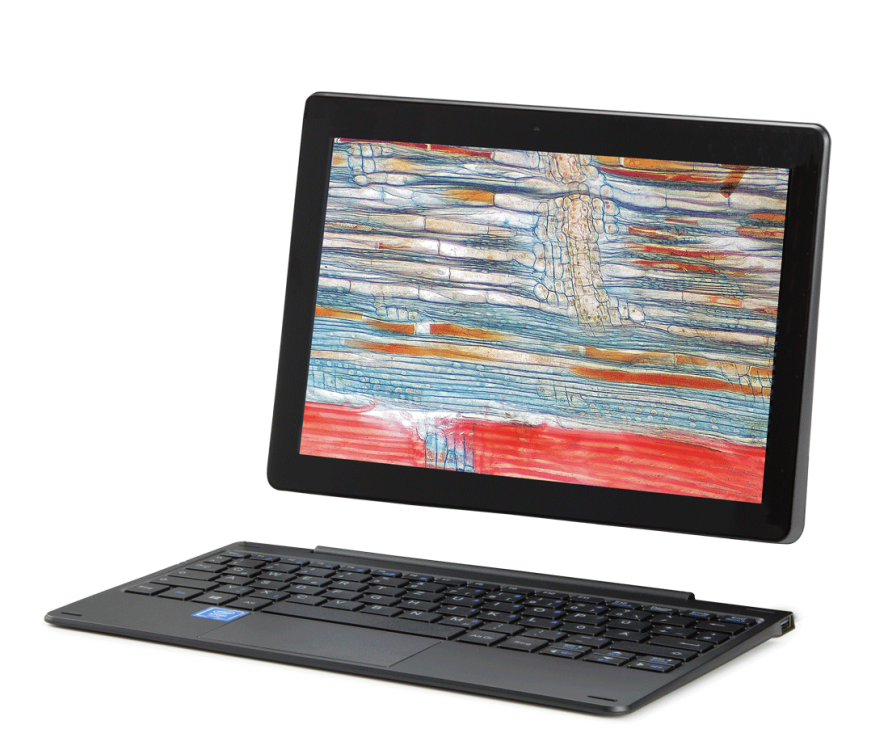

Together with the included attachable keyboard, you can use it as a microscope imaging system, tablet and laptop. The keyboard connects to the tablet using magnets to provide a latchless docking solution that lets you smoothly remove and re-attach the keyboard to the ProPad
PROCESSOR
Quad Core 1.92 GHz with HD graphics processor
SCREEN
10.1″, 1280 x 800 pixels (WGXA) touchscreen, 16:10, LED backlight
MEMORY
2 GB DDR RAM, 2 MB cache
STORAGE
32 GB Flash HDD, micro SD/SDHC up to 64 GB
WEBCAM
2 MP, 1600 x 1200 pixels front and rear cameras
CONNECTIVITY
Micro USB 2.0, Wi-Fi 802.11 b/g/n and Bluetooth 4.0
AUDIO
Stereo with 3.5 mm audio jack, internal microphone and speaker
BATTERY
Lithium, 4420 mAh, 17 Wh
HOUSING
246.9 x 174.2 x 9.4 mm (tablet),
246.9 x 174.2 x 8.2 mm (keyboard)
WEIGHT
588 grams (tablet), 551 grams (keyboard)
SYSTEM
Windows 10 Home
SOFTWARE
ProPad-2, ProPad-5 and ProPad-12 are supplied with ImageFocus Plus. ProPad-WiFi-3 is supplied with ImageFocus Alpha. The WiFi camera can also be operated through IOS and Android apps
Your dedicated partner in providing high-quality laboratory and research equipment. With years of industry experience, we specialize in supplying cutting-edge laboratory instruments, research equipment, and essential lab tools to support scientific discovery, educational advancement, and innovation across various industries.
© 2025 | REIDIUS TECHNOLOGIES | All Rights reserved.
