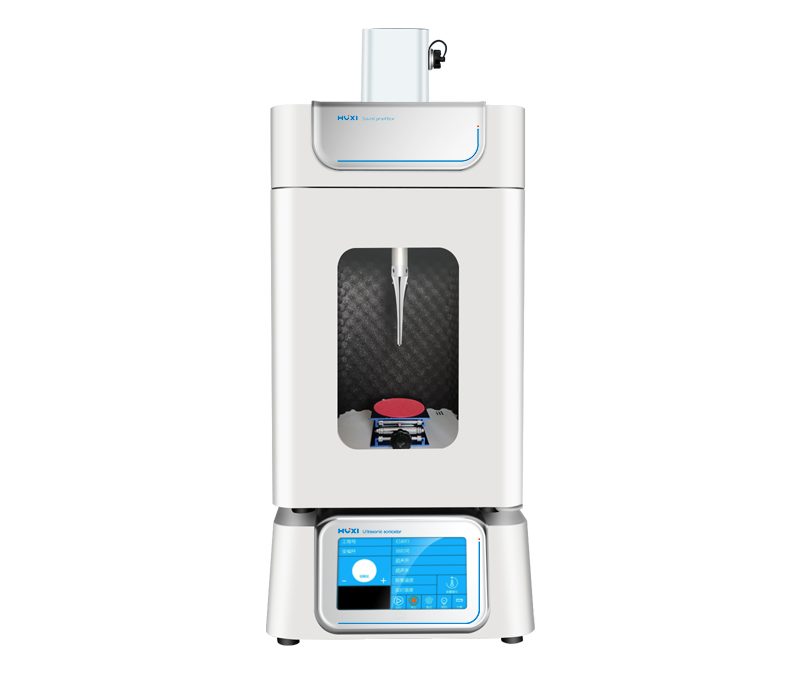

Product Applications：
It is suitable for the processing of different volumes of samples (according to different volumes of the corresponding models and probes). It can be used for emulsification, separation, dispersion, extraction, cleaning and acceleration of chemical reactions, etc. It is widely used in life science, material science and environmental protection.
Product Applications：
It is suitable for the processing of different volumes of samples (according to different volumes of the corresponding models and probes). It can be used for emulsification, separation, dispersion, extraction, cleaning and acceleration of chemical reactions, etc. It is widely used in life science, material science and environmental protection.
Main features：
● High safety
The length of the experiment, power can be continuously adjusted, has good stability;
● Wide range of processing
| Product parameters： | |
|---|---|
| Power | 6.5-650W continuously adjustable |
| Processable capacity | 0.1-500 |
| Display method | Color 7-inch touch capacitive screen with high definition display |
| Single working time | 0.1-99.9S |
| Single work gap time | 0.1-99.9S |
| Total time (ultrasound + gap) | 1-99H59M59S |
| Frequency range | 20-25KHz |
| Temperature control range | 0-100℃（Optional low temperature, constant temperature） |
| Alarm function | Temperature, time, overload, no load, over temperature |
| Standard variable width rod | Φ6(mm) |
| Optional variable width rod | Φ2、3、6、8、10、12(mm) |
| Data Storage | 20 groups |
| Power supply | 220V/110V/ 50Hz/60HZ |
| Ultrasonic mainframe size(D*W*H) | 427*340*168（mm） |
| Ultrasonic mainframe net weight | 11kg |
| Ultrasonic transducer+Variable width rod net weight | 2kg |
| Ultrasonic mainframe outer packaging (D*W*H) | 500*400*320（mm） |
| Sound isolating box outer packaging (D*W*H) | 385*385*585（mm） |
| Sound isolating box net weight | 13kg |
| Sound isolating box size(D*W*H) | 320*320*520（mm） |
| Control method | Microcontroller+TFT Touch |
| Up and down stacking function (can save space) | Support |
| Working voice alarm and fault indication function | Yes |
| Ultrasonic power simulation data waveform display function | Yes |
| Ultrasonic time pulse width data waveform display function | Yes |
| Password protection function | Yes |
| Ultrasonic mainframe material | Aluminum alloy+ABS plastic（Disposable molding molds） |
| Sound isolating box material | Anti-corrosion panels+ABS plastic（Disposable molding molds） |
Experimental data of some samples (φ6 variation rod for reference)
| Experiment content | ultrasonic time(S) | Gap time(S) | Total time（min） | Power（%） | Volume（ml） | Breakage rate （﹪） |
|---|---|---|---|---|---|---|
| Spirochetes plumeri | 1.5 | 2 | 10-20 | 30 | 20 | 90以上 |
| Staphylococcus | 1.5 | 2 | 10-25 | 30 | 20 | 90以上 |
| Rat sciatic nerve | 2 | 3 | 10-15 | 30 | 20 | 92以上 |
| Rat liver | 2 | 3 | 5-15 | 45 | 30 | 95以上 |
| Liver cell enzyme extraction | 2 | 3 | 5-10 | 50 | 30 | 95以上 |
| Escherichia coli | 2 | 3 | 10-15 | 50 | 50 | 93以上 |
| Pseudomonas aeruginosa | 2 | 3 | 5-10 | 55 | 50 | 92以上 |

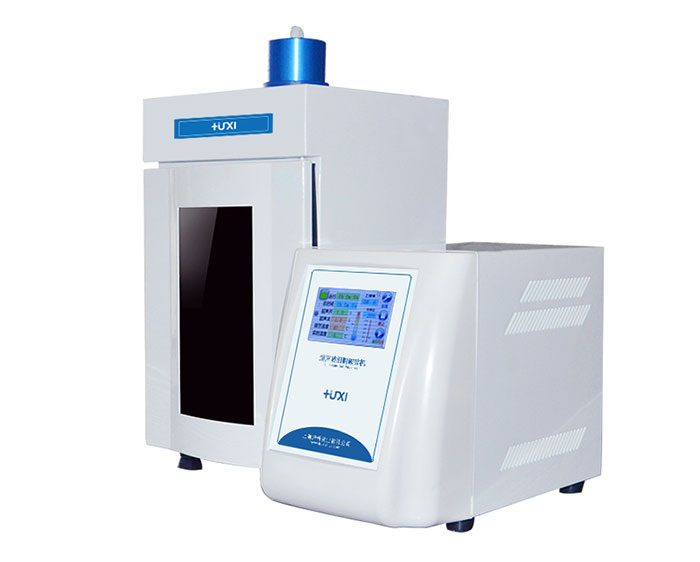

1、Applications
Ultrasonic Homogenizer is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used for a variety of animal and plant cells and viruses. Cell disruption can also be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions, etc. It is used in the teaching, research and production of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, pharmacy and other fields.
、Features
1. Full-featured, beautiful appearance, reliable performance, using the latest single-chip technology + 4.3-inch TFT capacitive touch screen control (7-inch optional), optional computer communication or data printing functions.
2. High degree of intelligence, central microcomputer centralized control, ultrasonic time, power can be set from 1%-100%.
3. Sample temperature detection and display, frequency microcomputer automatic tracking, automatic fault alarm.
4. Supporting Alcoa 7075 transducer + a set of high-purity titanium alloy horns, industrial horns can continuously achieve ultrasound for more than one hour (only high-purity titanium alloys can be achieved).
5. With overload protection function and the horn is not immersed in liquid, it will automatically protect the horn from damage.
6. It can realize the voice alarm function caused by malfunction, over-temperature or operation error, which is more humane.
3、Technical Parameters
Model | JY96-IIN |
Power | 1.5-150W Continuously adjustable |
Crushing capacity | 1.5-150ML( Need to match the corresponding horn ) |
Display method | True color capacitive touch screen display |
Single ultrasound time | 0.1-99.9S |
Single gap time | 0.1-99.9S |
Total time (ultrasound + gap) | 1-99H59M59S |
Frequency Range | 20-25KHz |
Temperature control range | 0-100 degrees (Optional low temperature and constant temperature) |
Alarm function | Time, overload, no load, over temperature |
Standard Horn | Φ6(mm) |
Duty cycle | 0.1-99.9% |
Data storage | 20 groups |
Power supply (optional 110V) | 220V/110V/ 50Hz/60Hz |
Net size of the instrument (D*W*H) | 410*225*290（mm） |
Ultrasonic host net weight | 12kg |
Ultrasonic host gross weight | 16kg |
Host packaging (length * width * height) | 470*305*430（mm） |
Gross weight of soundproof box | 10kg |
Outer packing of soundproof box (length * width * height) | 350*350*550（mm） |
way to control | Microcontroller + TFT touch |
Optional function | Computer communication + data printing + soundproof box lighting or sterilization |
Voice alarm and prompt function | Yes |
Product Model：HX-CW2000H
Product Applications:
● HX-CW2000H ultrasonic microwave combination reaction system with separate control and synergistic functions of microwave, ultrasonic, and microwave-ultrasonic. The system also realizes the functions of 7-inch touch interface control, with data storage, and high-definition visualization real-time display of reaction status.
● Microwave chemical synthesizer is widely used for chemical synthesis in many fields such as universities, research institutes, biopharmaceuticals, materials industry and mining. Microwave chemical synthesizer uses the basic principles of microwave, ultrasonic wave and ultraviolet light to catalyze the reactants effectively, create a variety of synthesis conditions and accelerate the chemical synthesis reaction, etc.
Product features:
● Technical features
● Temperature control system: infrared temperature sensor;
● Container capacity: 2000ml;
● Operating system: microcomputer control technology, multi-stage program control mode.
● Ultrasonic power: 1800W finely adjustable; Ultrasonic frequency: 20KHz, ultrasonic probe can be intervened or non-intervened in the sample, acting on the sample function through cavitation effect or air transfer;
● Standard ultrasonic probe diameter: Φ25 suitable for different caliber reaction vessels.
● Control system
● Microwave frequency: 2450MHz, non-pulse continuous automatic frequency control, 0-100% power automatically and continuously adjustable;
● Industrial grade magnetron: maximum microwave output power 1000W;
● Temperature control system: Adopt wireless penetratable infrared temperature sensor sensor.
● UV catalytic system: wavelength 253.7nm, power 100W;
● Stirring device: magnetic stirring, stirring speed 0~2500rpm adjustable;
● Multi-functional operation mode, which can be extended to microwave extraction, microwave synthesis, ultrasonic wall breaking, etc.
● Furnace door and chamber safety
● Six-layer steel structure safety furnace door with buffer floating design to ensure the safety during the experiment;
● Adopting mechanical lock and electronic lock to coordinate and ensure that the door cannot be opened during operation, and the instrument automatically cuts off the microwave to stop working when the door is opened abnormally;
The furnace cavity is made of 316L industrial grade stainless steel and the cavity is coated with up to 6 layers of PFA anti-corrosion coating.
● Operating system
● Microcomputer control technology, historical data can be viewed and data exported and imported;
● Capacitive LCD touch screen, real-time display including: temperature, temperature rise time, constant temperature time, microwave power, reaction process;
● Built-in method library of the instrument, which can directly select the calling scheme and store 200 kinds of methods.
● Reaction components
● Reactor can be equipped with Teflon or high-temperature and corrosion-resistant glass material, and the reactor volume is 2000ml;
● Reactor can be connected with glass tubing, open reaction system, and can be installed with dropping funnel and condenser tube for reflux reaction.
Technical Parameters | |
Model | HX-CW2000H |
Capacity | 2000ml |
Ultrasonic power | 1800W adjustment |
Ultrasonic horn | Standard set include：Φ25 |
Frequency | 20KHZ |
Sonicator display | True color 7 inch touch capacitive screen high definition display |
Sonicator control mode | Microcontroller+TFT touch control |
Sonicator host material | Aluminum alloy+ ABS plastic mold one-time molding |
Microwave reaction system complete power | 2100W |
Maximum output power of microwave reaction system | 1000W |
Microwave frequency | 2450MH, 0-100% power automatically and continuously adjustable |
Microwave temperature sensor | Wireless Penetrable Infrared Temperature Sensor |
Microwave temperature measurement range | 0~350℃ |
Microwave maximum temperature | 250℃ |
Microwave temperature control accuracy | ≤±1℃ |
Microwave pressure range | 0-15Mpa |
Microwave pressure control precision | ±0.01Mpa |
Microwave oven cavity material | 316L industrial grade stainless steel one-piece molding |
Microwave oven door material | Buffer floating design six-layer steel structure furnace door |
Working time | Continuous work, 0-9999s adjustable |
Stirring speed rpm | 0~2500rpm |
Circulation pump model | HXS-0503 |
Temperature range (℃) | -5~100℃ |
Digital display resolution (℃) | 0.1℃ |
Inner tank volume (L*W*D mm) | 170*180*130mm |
Circulation pump flow rate (L/min) | 8L/min |
Water filling port (mm) | Φ35mm |
Total capacity (L) | 3.5L |
Circulation pump apparatus net weight kg | 27.5kg |
Circulation pump apparatus size (D*W*H mm) | 440*300*510mm |
Microwave instrument size (L*W*H mm) | 500*480*550mm |
Ultrasonic host instrument size (depth*width*height mm) | 427*340*168mm |
Product Model：HX-CF100
Application：
Ultrasonic glass reactor is a kind of multifunctional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used to break a variety of animal and plant cells, virus cells, and can be used for emulsification. Separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
1、Applications
Ultrasonic Homogenizer is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used for a variety of animal and plant cells and viruses. Cell disruption can also be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions, etc. It is used in the teaching, research and production of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, pharmacy and other fields.
、Features
1. Full-featured, beautiful appearance, reliable performance, using the latest single-chip technology + 4.3-inch TFT capacitive touch screen control (7-inch optional), optional computer communication or data printing functions.
2. High degree of intelligence, central microcomputer centralized control, ultrasonic time, power can be set from 1%-100%.
3. Sample temperature detection and display, frequency microcomputer automatic tracking, automatic fault alarm.
4. Supporting Alcoa 7075 transducer + a set of high-purity titanium alloy horns, industrial horns can continuously achieve ultrasound for more than one hour (only high-purity titanium alloys can be achieved).
5. With overload protection function and the horn is not immersed in liquid, it will automatically protect the horn from damage.
6. It can realize the voice alarm function caused by malfunction, over-temperature or operation error, which is more humane.
3、Technical Parameters
Model | JY96-IIN |
Power | 1.5-150W Continuously adjustable |
Crushing capacity | 1.5-150ML( Need to match the corresponding horn ) |
Display method | True color capacitive touch screen display |
Single ultrasound time | 0.1-99.9S |
Single gap time | 0.1-99.9S |
Total time (ultrasound + gap) | 1-99H59M59S |
Frequency Range | 20-25KHz |
Temperature control range | 0-100 degrees (Optional low temperature and constant temperature) |
Alarm function | Time, overload, no load, over temperature |
Standard Horn | Φ6(mm) |
Duty cycle | 0.1-99.9% |
Data storage | 20 groups |
Power supply (optional 110V) | 220V/110V/ 50Hz/60Hz |
Net size of the instrument (D*W*H) | 410*225*290（mm） |
Ultrasonic host net weight | 12kg |
Ultrasonic host gross weight | 16kg |
Host packaging (length * width * height) | 470*305*430（mm） |
Gross weight of soundproof box | 10kg |
Outer packing of soundproof box (length * width * height) | 350*350*550（mm） |
way to control | Microcontroller + TFT touch |
Optional function | Computer communication + data printing + soundproof box lighting or sterilization |
Voice alarm and prompt function | Yes |
Product Model：HX-2000ZW
Application
● Ultrasonic Homogenizer(crusher or ultrasonic cracker) is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used for a variety of animal and plant cells and viruses Cell disruption can also be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions, etc. It is used in the teaching, research and production of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, pharmaceuticals and other fields.
Main Features
1. Full-featured, beautiful appearance, reliable performance, using the latest single-chip technology + 4.3-inch TFT capacitive touch screen control (7-inch optional), optional computer communication or data printing functions.
2. High degree of intelligence, centralized control by the central computer, ultrasonic time, power can be set from 1%-100%.
3. Sample temperature detection and display, frequency microcomputer automatic tracking, automatic fault alarm.
4. It is equipped with a soundproof box to reduce the noise by more than 70%, and it is equipped with Alcoa 7075 transducer + a set of high-purity titanium alloy horns. The industrial horn can continuously achieve ultrasound for more than one hour (required high Only pure titanium alloy can be achieved).
5. With overload protection function and the horn is not immersed in liquid, it will automatically protect the horn from damage.
6. It can realize the voice alarm function caused by malfunction, over-temperature or operation error, which is more humane.
The Technical Parameters
| Model | HX-2000ZW |
| Power | 2000W auto adjustable |
| Capacity | 500-5000ML(need to choose the corresponding probe) |
| Display method | 7″ Capacitive Touch Screen Display |
| Total time (ultrasound + gap) | 1-99H59M59S |
| Single gap time | 0.1-99.9S |
| Continuous ultrasound function | Support |
| Frequency Range | 19.5-20.5KHz |
| Temperature control range | 0-100 degrees (optional thermostat) |
| Alarm function | Temperature, time, overload, no load, over temperature |
| Standard horn | Φ40*250（mm） |
| Optional horn | φ40*370/φ40*490（mm） |
| Power Supply | 220V50HZ |
| Probe Dimension | 427*340*168mm |
| Control mode | Microcontroller + TFT Touch |
| Optional function | Computer communication + soundproof box lighting, sterilisation or automatic sample lifting function |
| Optional function | Low temperature thermostat function |
| Optional function | Transducer fixing bracket |
| Optional function | High borosilicate glass reactor |
| Voice alarm and prompt function | Yes |

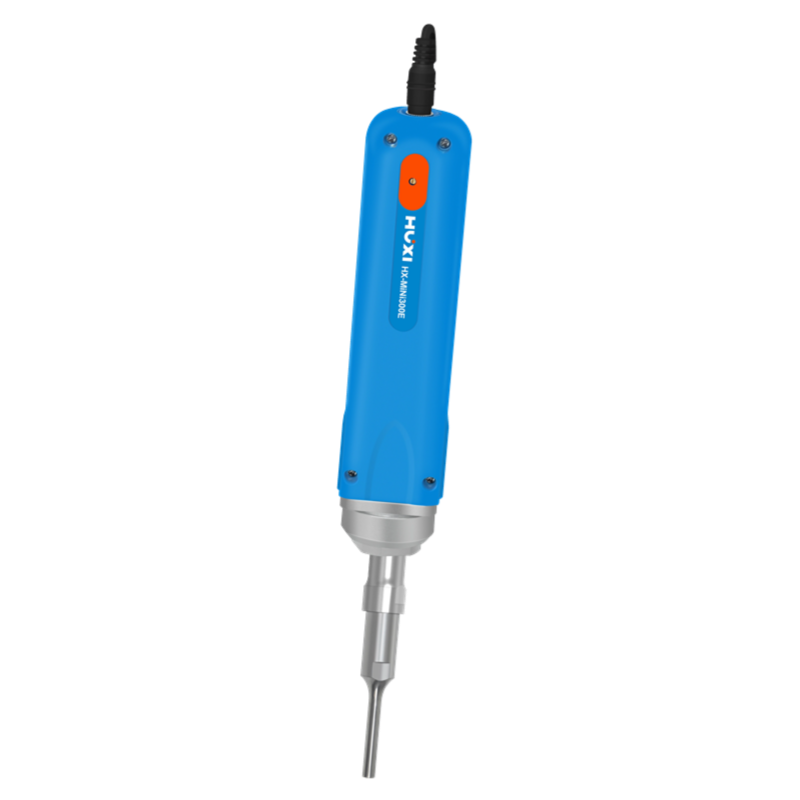

HX-400 handheld ultrasonic homogenizer is a multi-functional and multi-purpose instrument that uses ultrasonic waves to produce cavitation effect in liquid. It is used for cell crushing, emulsification, dispersion, homogenization, extraction, defoaming, cleaning, preparation of nano-materials and acceleration of chemical reactions, etc. The instrument adopts LCD display, with two working modes of automatic and manual (foot pedal), arbitrary stabilization of ultrasonic time and power, sample temperature detection display, automatic frequency tracking and other functions. Ultrasonic cell homogenizer suitable for small volume sample processing.
● Probe and host integrated design, high efficiency, energy saving, portable
● Both manually controlled ultrasound and rack fixed ultrasound can be used, which is especially suitable for micro or small amount of sample processing;
● The variable amplitude rod is made of titanium alloy material, with high strength, high sound velocity, good corrosion resistance and high heat resistance
Power | 4-400W continuously adjustable |
Crushing capacity | 0.1-300ML (need to choose the corresponding horn) |
Display method | 7 inchesTrue color capacitive touch screen display |
Single ultrasound time | 0.1-99.9S |
Single gap time | 0.1-99.9S |
Total time (ultrasound + gap) | 1-99H59M59S |
Frequency Range | 20-30KHz |
Temperature control range | 0-100 degrees (optional low temperature and constant temperature) |
Alarm function | Time, overload, no load, over temperature |
Random Horn | Φ5(mm) |
Optional horn | Φ2、3、5、6、8(mm) |
Duty cycle | 0.1-99.9% |
Data storage | 20 groups |
Power supply (optional 110V) | 220V/110V/ 50Hz/60Hz |
Net size of the instrument (depth*width*height) | 410*225*290（mm） |
way to control | Microcontroller + TFT touch control |
Optional function | Computer communication + data printing |
Voice alarm and prompt function | Yes |
MiNi type ultrasonic crusher HX-MiNi300E is a sample pre-treatment instrument which adopts integrated structure design to use ultrasonic waves to produce cavitation effect in liquid, and it is mainly suitable for dispersion of nanomaterials, cell wall-breaking extraction and crushing, homogenisation and mixing, chemical synthesis, and emulsification of oil and water.
Wide voltage design, can be applied to a wide range;
One-piece structure design, compact shape, lightweight and exquisite;
A variety of amplitude lever specifications can be selected, with a wide range of processing, up to 300mlFrequency tracking and amplitude compensation adopts automatic mode, stable load and high electro-acoustic conversion rate;
Amplitude lever adopts titanium alloy material, high strength, corrosion resistance, heat resistance, long service life;
It can be used handheld or fixed with optional bracket, which is suitable for ultrasonic treatment of micro or small amount of samples.
Product parameters： | |
Model | HX-MINI300E |
Power | 10-300W (manually adjustable setting) |
Capacity | 0.1-300ml |
| Ultrasonic Control mode | Lockable key |
| Single Ultrasonic time | ＜60min (considering the sample temperature) |
| Operation Mode | Continuous |
| Frequency | 30KHz |
| Standard Horn | Φ6mm |
| Optional Horn | Φ2, 6, 8mm |
| Material of Horn | TC4 titanium alloy |
| Input Voltage | 100-230V/AC 12-24V/DC |
| Shell Material | ABS |
| Optional | Fixed bracket |
| NW/GW | 0.5/1kg |
| Instrument size (L*W*H) | 300*φ43mm |
| Packing size (L*W*L) | 338*288*110mm |
Your dedicated partner in providing high-quality laboratory and research equipment. With years of industry experience, we specialize in supplying cutting-edge laboratory instruments, research equipment, and essential lab tools to support scientific discovery, educational advancement, and innovation across various industries.
© 2025 | REIDIUS TECHNOLOGIES | All Rights reserved.
