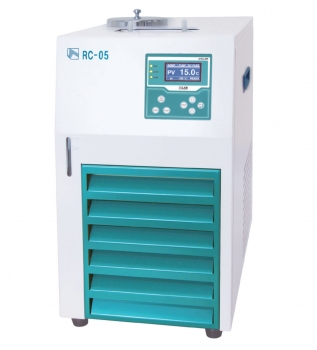

Chiller (Recirculating Cooler)

Environmental Chambers

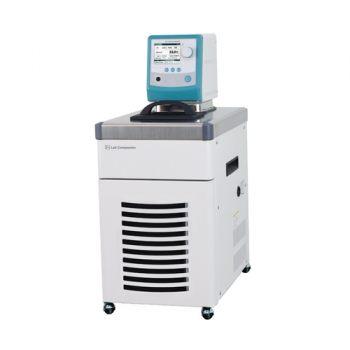

Baths & Circulators

Ovens

Refrigerators & Freezers

Shaker

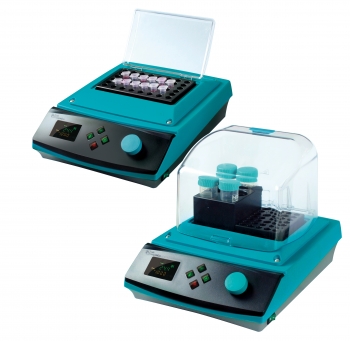

Heating & Cooling Block

Pumps

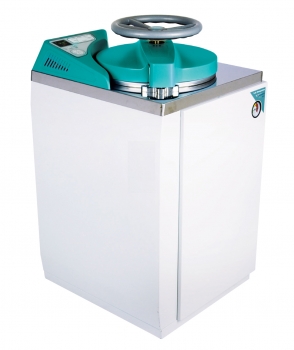

Autoclaves (Vertical Type)

Autoclaves (Vertical Type)

Microprocessor control with reliable safety functions guarantees optimum sterilization temperature. Model Name : ST-50G/65G/85G/105G

Performance

  • Microprocessor controller and temperature calibration function allows for high precision temperature control.
    – Sterilization temperature at 110 to 123°C
    – Melting* temperature at 60 to 100°C
    * Liquefaction of coagulated agar media.
  • Automatic sterilization system for unattended operation.
    – Heating > Check safe > Sterilization > Sterilization safe > Exhausting > End
  • Convenient operation modes for various uses.
    – Standard modes and program modes are listed in detail as below tables
More Details

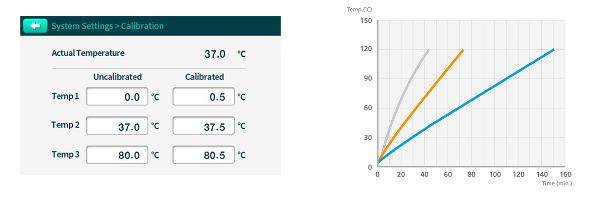

  • Temperature calibration function.
Standard modesTemp.(°C)Time(min.)
Decontamination12135
Solids sterilization12120
Liquids sterilization12115
Melting10030
Program modesTemp.(°C)Time(min.)
Sterilization 1110 to 1231 to 999
Sterilization 2110 to 1231 to 999
Liquid sterilization110 to 1231 to 999
Melting60 to 1001 to 999

Convenience

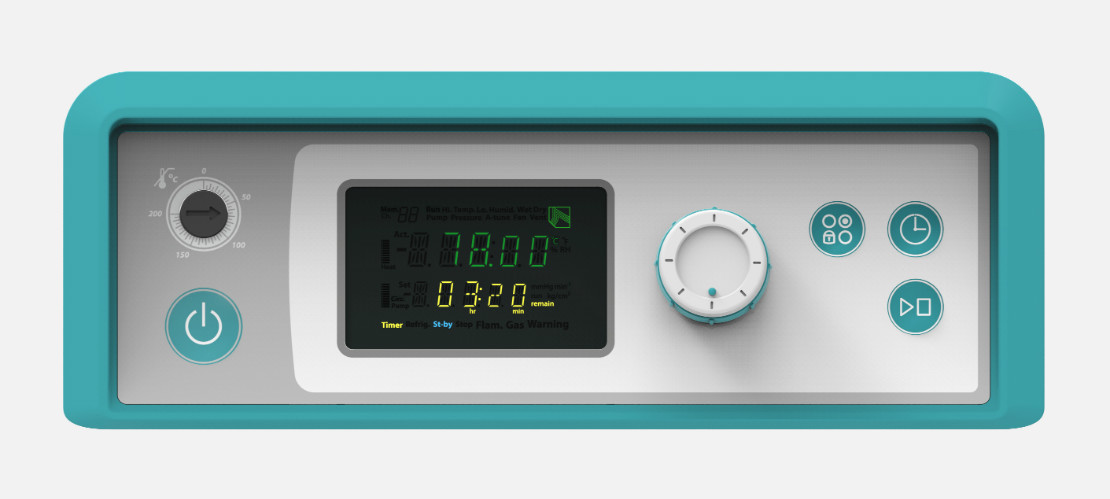

  • Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
    – VFD for visualization of temp, pressure(optional), timer, warning alert checks.
    – LED lamps for sterilization process check.
    – Easy pressure check with the standard gauge attached to the front.
  • Vertical type autoclaves which allow for top loading are suitable for high volume sterilization.
    – Baskets are stackable two high or even more levels, which secure inside the chamber space requirements.
  • Low-maintenance
    – The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
    – Easy to replace silicone gasket.
  • Convenient documentation with the optional data recorder.
    – Dot type recorder(6 point) allows for precise documentation.

Safety

  • Mechanical safety devices
    – Over current protection.
    – Over temperature protection by automatic power cutoff.
    – Over pressure protection by automatic and manual safety valve.
  • Safety warning systems
    – Over temperature warning.
    – Low temperature warning.
    – Low water level warning.
    – Low heat warning if the temperature does not reach the sterilization or melting temperature.
    – Sterilization fail warning if the operation is unexpectedly stopped during sterilization process.
  • Slide opening door with plastic cover of low thermal conductivity prevents burns from the contact.

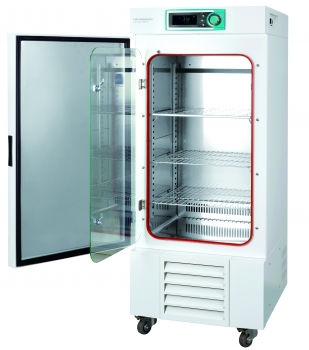

Environmental Chambers

Environmental Chambers

Optimal photosynthesis condition guaranteed when using our plant growth chamber. Ample capacity, maximum capacity of 1000L to satisfy user's plant growth needs Model Name : GC-300TL/300TLH/1000TLH

Performance

General control system

  • 5℃to 50℃(lamp off) / 10℃to 50℃. (lamp on)
  • Max. to 35,000Lux for GC-1000.
    Max. to 20,000Lux for GC-300 Models.
  • 40 to 80% RH for GC-300TLH. (at 20 to 35℃)
    50 to 90% RH for GC-1000TLH. (at 20 to 35℃)
  • Max. 5,000ppm CO2 on/off system. (optional)
  • Microprocessor PID control / Temperature calibration / Automatic tuning.
  • 10 step programmable temperature, humidity, and illumination profiles and repeatable steps of up to 999 cycles.
Specifications

Illuminance control system

  • Uniformed luminescence distribution.
  • Broad distribution of side lamps for hastening the growth of plants.
  • High intensity illumination of upper lamp for light efficient and low thermal load. (for GC-1000TLH/1000TL)
  • Unique construction for minimization of heat increase from surrounding lamps.
    – Tempered glass door blocks heated air from lamps.
    – Designed to exhaust heated air through upper vent holes. (for GC-1000TLH)
  • Stable and long lasting lighting through introduction of high frequency electronic ballast lamps.

Convenience

  • Ergonomically designed door construction.
    – Inner glass door with silicone and external door with magnetic sealing for dual airtight packing.
    – Well designed providing a smooth open for minimization of damage to plants.
  • Wide inner tempered glass door for clear observation of plant growth without affecting inner chamber’s environment.
  • Tall plants can be grown inside of the chamber with adjustment of shelve level.
  • Maintenance of water supply are easily performed with a front water tank. (GC-1000TLH)
    – Water level check indicated by water level bar in the tank.
  • Water supply during operation is also available for long term test purposes.
  • Adjustable water tank position. (for GC-300TLH)
  • Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
    – Maintenance of air filter no longer cumbersome with our detachable condenser air filter.
  • Casters for easy mobility during installation or relocation.
  • Eco-friendly CFC-free refrigerant use.

Safety

  • Automatic shut off after overheat alarm.
  • Low and empty water level alarm.
  • Power supply leakage breaker.
  • Over current protection,
  • Open door alarm.

Lamps setting

  • Control illumination values with the below lamp setting arrangements.

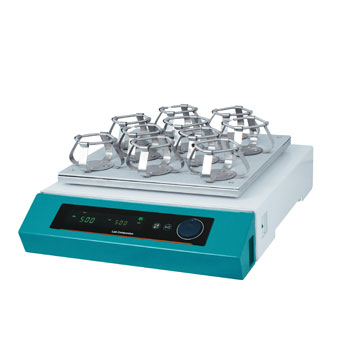

Shaker

Shaker

Dual-action benchtop platform shakers accommodate flask up to 6L. with optional dedicated platform Model Name : OS-2000/3000/4000

Performance

  • Dual-action shaking motion: Orbital / Reciprocating.
  • Microprocessor PID control / Shaking speed calibration.
  • Competitive high shaking speed up to 500 rpm.
  • Shaking motion in various amplitude.
    – 12.7mm or 19.1mm for OS-2000
    – 19.1mm or 25.4mm for OS-3000
    – 19.1mm or 25.4mm for OS-4000
  • Wide speed range even with heavy workload.
    – Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
  • Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
  • Pleasant test environment by the smooth acceleration and deceleration control.
  • Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.
More Details

Convenience

  • User friendly control panel.
    – Lab Companion’s unique VFD-bright, clear, easy to read.
    – Durable membrane touch switch and control knob.
  • Easy-set digital timer. (1 min. to 999 hr. 59 min.)
  • Repetitive task can be easily performed as the platform stops where it starts.
    – Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
  • Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.
  • RS-232 port and USB port for external control and data collection.

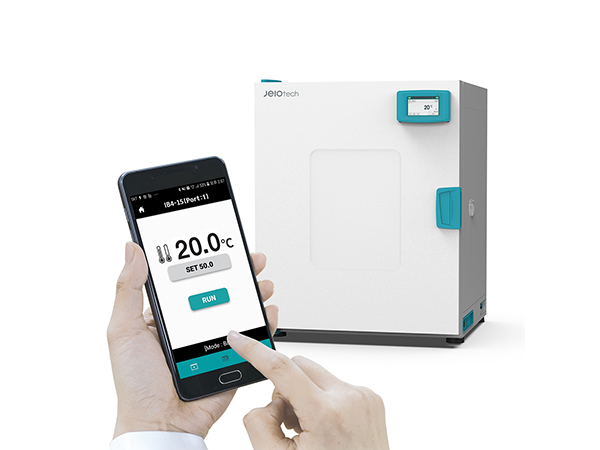

  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)






Safety

  • Automatic run after power interruption.
  • Shaking speed deviation alarm.
  • Over-current protection, Stalled platform check

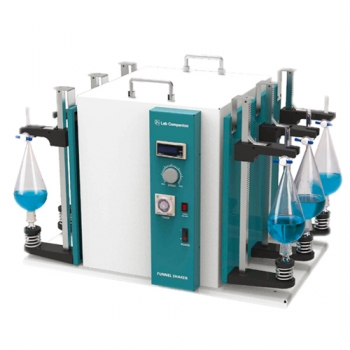

Separatory Funnel Shaker

Dual-action benchtop platform shakers accommodate flask up to 6L. with optional dedicated platform Model Name : OS-2000/3000/4000

Performance

  • Dual-action shaking motion: Orbital / Reciprocating.
  • Microprocessor PID control / Shaking speed calibration.
  • Competitive high shaking speed up to 500 rpm.
  • Shaking motion in various amplitude.
    – 12.7mm or 19.1mm for OS-2000
    – 19.1mm or 25.4mm for OS-3000
    – 19.1mm or 25.4mm for OS-4000
  • Wide speed range even with heavy workload.
    – Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
  • Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
  • Pleasant test environment by the smooth acceleration and deceleration control.
  • Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.
More Details

Performance

  • Shaking up to 10 samples in identical conditions for any series or comparative protocols in chemistry, biotech, and medical labs.
  • Wide speed range from 50 to 300 rpm is suitable for most applications.
  • Vertical reciprocating motion with maximum stroke length of 40mm.

Convenience

  • Digital LED speed display.
  • Simple and quick control panel.
  • Quick adjustable timer for time-dependent shaking operation. (1 min. to 60m.)
  • Easily adjustable funnel holders accomodate various capacity of funnels.

Safety

  • Audible alarm and automatic shut down at the end of each shaking session.
  • Over-current protection.



Max. funnel capacity (per each side)

CapacityRound type funnelSlim type funnel
under 500ml3 to 55
500ml33
1L–3

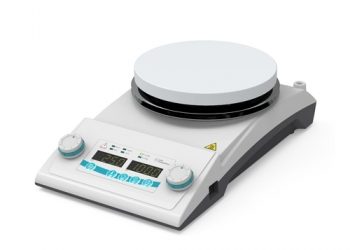

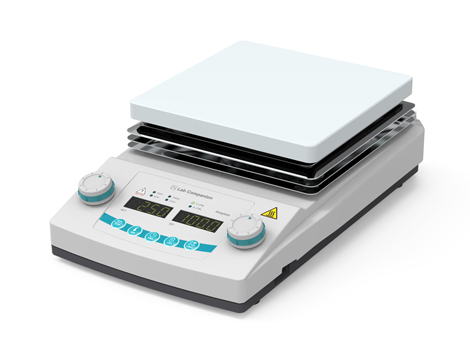

Hotplate Stirrers & Stirrer

Hotplate Stirrers & Stirrer

Superior temperature control with various safety functions. Two different shapes of top plate are available for your optimum use

Performance & Convenience

  • Microprocessor PID temperature control.
  • Auto-tuning and temperature calibration functions.
  • Multi-functional temperature control modes. (optimal / fast / slow / user / point)
  • Optimum heating level is adjustable from 0 to 100%.
  • Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
  • Precise temperature is set by digital display and optimum heating level is adjustable.
  • Advanced dual wait on/off timer modes.
    – User can set timer to starts immediately after the timer setting or only after reaching the set temp.
  • Separate operation RUN/STOP button.
  • Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
  • A transparent safety shield protects users from liquid splashes. (optional)
  • Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)
More Details

Performance & Convenience

  • Microprocessor PID temperature control.
  • Auto-tuning and temperature calibration functions.
  • Multi-functional temperature control modes. (optimal / fast / slow / user / point)
  • Optimum heating level is adjustable from 0 to 100%.
  • Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
  • Precise temperature is set by digital display and optimum heating level is adjustable.
  • Advanced dual wait on/off timer modes.
    – User can set timer to starts immediately after the timer setting or only after reaching the set temp.
  • Separate operation RUN/STOP button.
  • Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
  • A transparent safety shield protects users from liquid splashes. (optional)
  • Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)

Safety

  • Built in thermal shut off and current limit protection.
  • High and low temperature limit setting for user convenience and safety.
  • Hot top warning indicator for preventing accidental injuries.
  • Keypad lock function prevents accidental changes during operation.

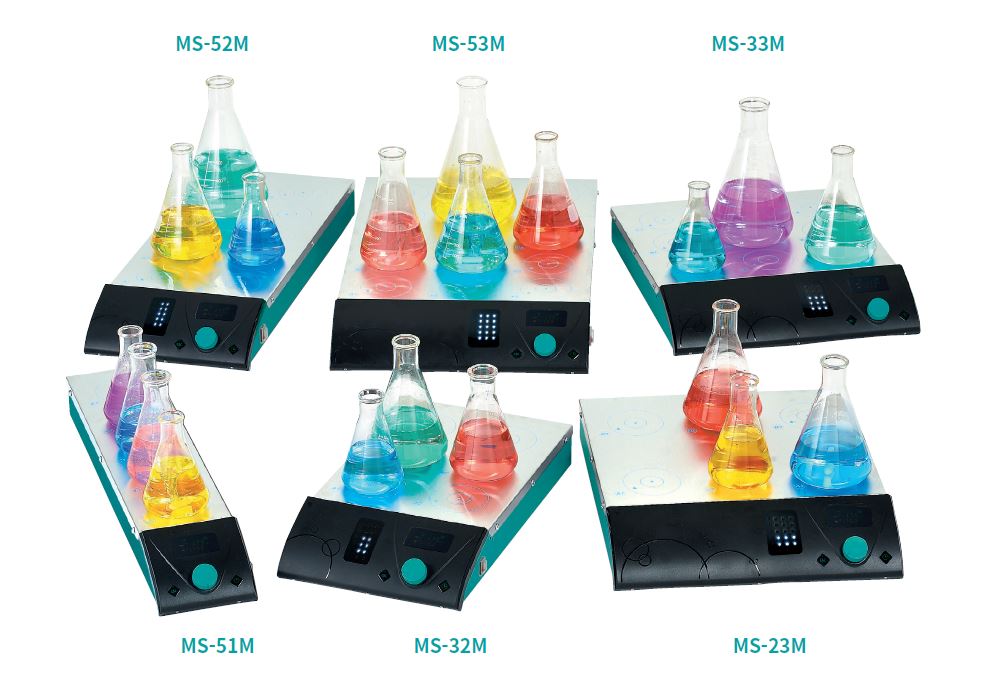

Magnetic Stirrers (Multi Position)

Powerful magnets and motors guarantee a high-speed and a goodmanagement of the devices. Model Name : MS-23M/32M/33M/51M/52M/53

Performance & Convenience

  • Ergonomic designed, lightweight, easy to operate, and low profile.
  • Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
  • Spark-less, silent and durable BLDC motor.
  • Wide top plate.
  • Non-slip strength rubber feet.
  • Strong magnetic coupling to ensure constant stirring.
  • Digital PID feedback control for every single point, separately.

More Details

Performance & Convenience

  • Ergonomic designed, lightweight, easy to operate, and low profile.
  • Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
  • Spark-less, silent and durable BLDC motor.
  • Wide top plate.
  • Non-slip strength rubber feet.
  • Strong magnetic coupling to ensure constant stirring.
  • Digital PID feedback control for every single point, separately.
  • User-friendly operation and time setting modes allowing various ways of multi-position stirring to meet users’ demands:
    single point, multiple point, whole row, whole column, etc.
  • Easy-to-read VFD and intuitive control panel.
  • Bright and vivid LED position indicating lamps.
  • Non-slip see-through silicon plate mat. (optional)
  • Chemical-resistant #304 grade stainless steel top-plate.

Safety

  • Unit is safely designed to protect internal components from accidental spills.
  • Built-in thermal shutdown and current limit protection.

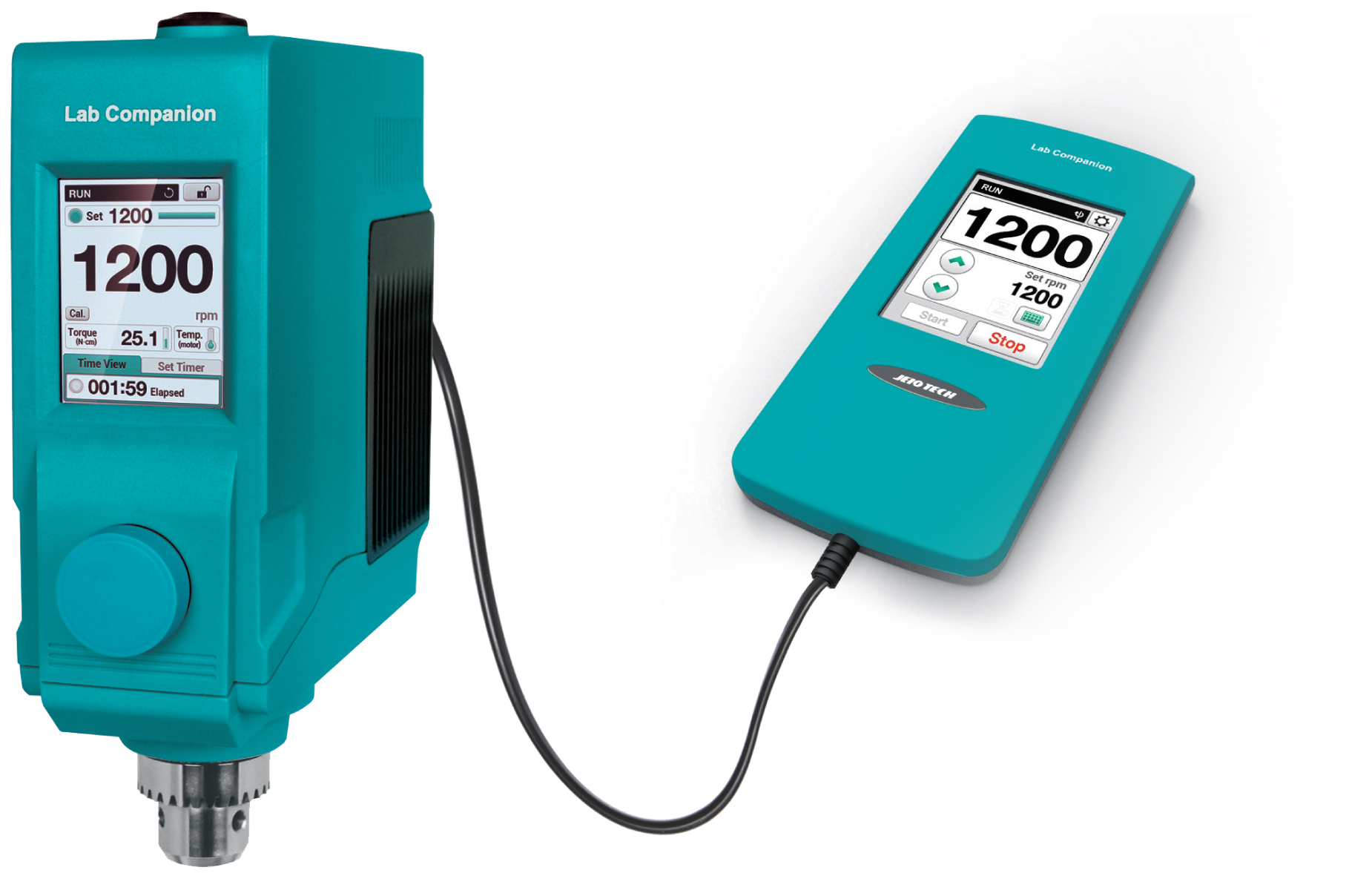

Overhead Stirrers (Prestige touch)

Ideally perform your professional stirring tasks requiring high functionality, safety, and longevity. Prestige touch LCD controller and practical external controller add it’s superiority. Model Name : MSH-0512/0520

Performance

  • Years of vibration-free and silent operation.
    – Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring.
  • Powerful torque capable of handling high viscosity tasks.
  • Maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity.
  • Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
  • Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.
More Details

Convenience

  • Touch type LCD controller.
    – Various essential information are visible at once and intuitionally controlled.
    – Set/present rpm and run time view, simple timer set. (max. 99 hr. 59 min.)
    – Varying motor torque is indicated on display in real time.
    – Motor temperature condition is indicated on display by three different colors to protect motor.
    – Stirring directions are selectable depending on each impeller’s shape.
  • Built-in USB port for external control and data collection.
    – Useful for PC control and data management task.
    – Lab Companion software and USB cable are provided as standard.
  • Practical external controller.
    – Intuitive and easy control with color touch LCD.
    – It enables convenient and safe external control without opening the sash of the fume hood or safety cabinet.
  • Compact and slim head design for diverse flexibility in configuring other test equipment and accessories. (optional)

Safety

  • Sturdy aluminum main body efficiently absorbing and emitting the heat generated by the motor.
  • Safety features against overload and overheating for continuous operation.
    – When it comes to heavy workload, it tries to activate best effort function.
    But if it determines that performing the work is harmful for it, than it stops stirring.
    – Equipped with a mini fan inside to minimize overheating of the motor.
  • Separated adapter from the main body minimizes the risks of electrical hazards to the users.
  • Screen lock function prevents accidental changes during operation.

Baths & Circulators

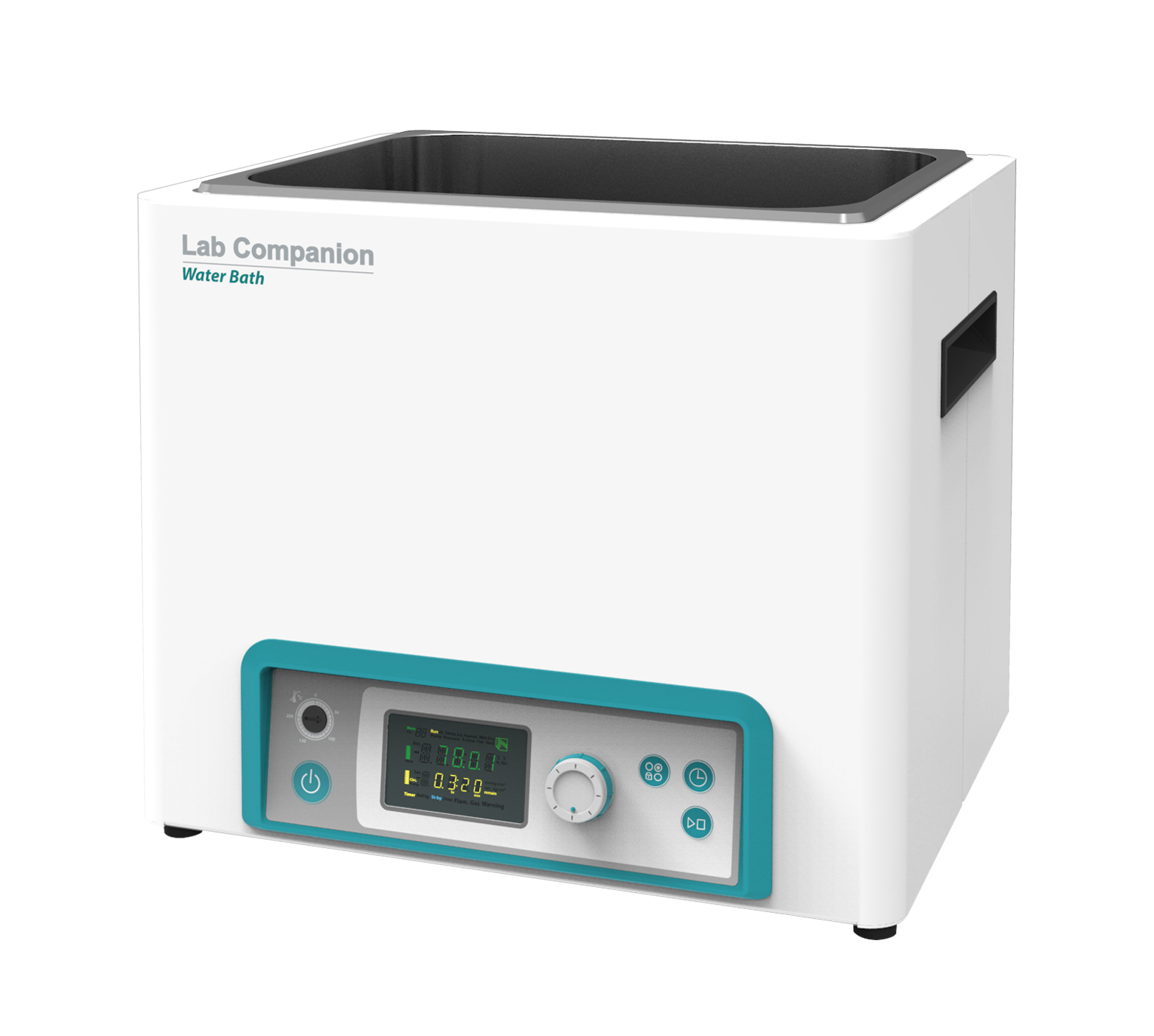

Heating Bath (General)

Outstanding temperature control water baths for diverse applications. Model Name : BW3-05G/10G/20G

Performance

  • Temperature range from ambient +7℃ to 100℃.
  • Microprocessor PID control / Automatic tuning / Calibration.

Convenience

  • Easy readout digital LED displays. (0.1℃resolution)
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
  • Programming functions are ideal for critical research quality control, and regulatory tests.
  • Convenient memory function of up to three frequently set temperature.
  • Corrosion-resistant stainless steel construction allowing other bath fluids as well as water and silicone fluids.
  • Low-profile reservoir design.
More Details

Performance

  • Temperature range from ambient +7℃ to 100℃.
  • Microprocessor PID control / Automatic tuning / Calibration.

Convenience

  • Easy readout digital LED displays. (0.1℃resolution)
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
  • Programming functions are ideal for critical research quality control, and regulatory tests.
  • Convenient memory function of up to three frequently set temperature.
  • Corrosion-resistant stainless steel construction allowing other bath fluids as well as water and silicone fluids.
  • Low-profile reservoir design.

Safety

  • Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
  • Complete safety protection system with warning alarms.
    – Low fluid level and dry-running, over-temperature, over-current.
  • Splash-proof keypad.

Shaking Heating Bath (BS2)

Reciprocal shaking heating bath with transparent cover Ideal for sample incubation condition for DNA, tissue culture, heat-sensitive samples. Model Name : BS2-10/15/20/30

Performance

  • Temperature range from ambient +5°C to 100°C (amb. +9℉ to 212℉).
  • Precise rpm(Max 200rpm) and temperature(Max 100℃) control with accuracy.
  • Excellent temperature distribution by shaking motion. (50℃ ±0.1℃)
  • Better performance with 3-points temperature calibration and 1-point shaking calibration.
  • Optimal PID control for the Bath.
  • Bath structure for a smooth water circulation flow.
  • Extended height for larger sample volumes. (maximum 2.8L of flasks)
More Details

Convenience

  • Automatic On/Off timer. (up to a maximum of 999 hours and 59 minutes)
  • Easy operation with a touch color display.
  • Drain port of better accessibility located on the side.
  • USB port to connect to PC for recording and monitoring.
  • Transparent gable roof-shape cover prevents condensed water from falling onto specimen.
  • Corrosion resistance spring wire rack (1ea) is provided. (Standard)
  • Real-time temperature and rpm control via mobile monitoring system. (Option)

Safety

  • Audio and visual alarms and heater shutdown in case of water shortage.
  • Alarm for temperature and rpm discrepancies or abnormal condition of temperature sensor.
  • Over-current and short circuit protection of device.

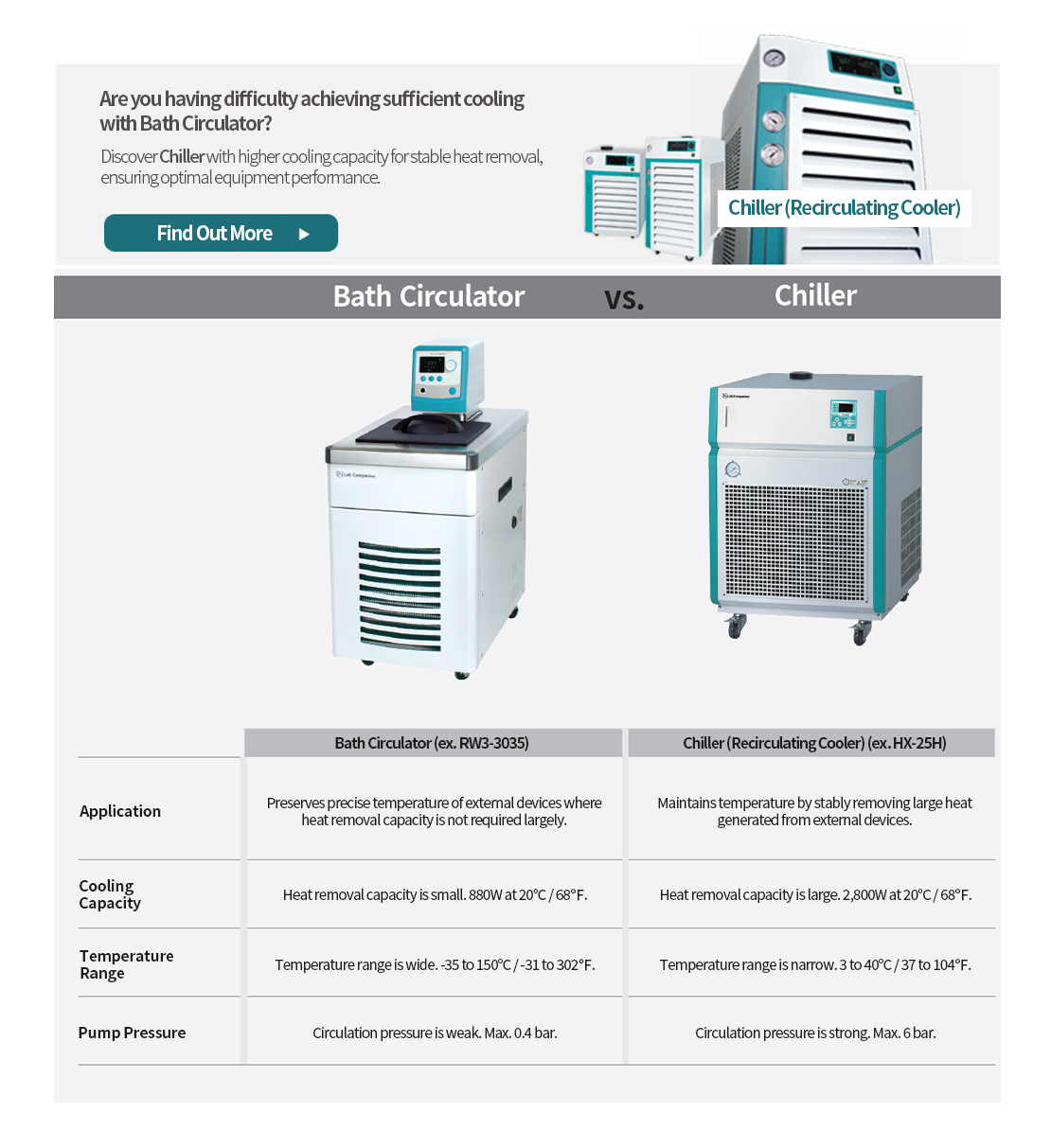

Refrigerated & Heating Bath Circulator (Program)

Newly developed bath circulator with the Intelligent programmable controller. Model Name : RW3-0525P/1025P/2025P/3025P RW3-0535P/1035P/2035P/3035P

Intelligent program control

  • 10 programs available for temperature ramp up and dwell control.
  • 10 steps per a program and 99 hours 59 minutes per a step.
  • Stored programs are easily linkable.
  • Programs can be repeated up to 99 cycles.
  • Pre-heating and heating time are settable before program starts.
More Details

Performance

  • Temperature range.
    – RW3-35P models from -35°C to 150°C.
    – RW3-25P models from -25°C to 150°C.
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning / Automatic run.
  • Suitable for both internal and external bath environments due to reduced turbulence by using five-speed adjustable pump and built-in cooling coil.
    (1 to 3 steps of the pump for internal circulation and 4 to 5 steps for external circulation)

Pump Step12345
Max. pressure (psi)0.51.12.44.95.9
Max. flow rate (L/min)5.68.012.818.828.0

Convenience

  • Intuitive touch screen LCD controller with easy icons and logical menus.
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
  • Digital input and output control function for interlocking external devices.
  • RS-232 / USB interface for external control and data collection.
  • Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
  • Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
  • Usage of CFC-free refrigerant (R-507, R-404A) and a double service valve for leakage prevention.
  • Quick-release front grill for easy cleaning of the condenser.
  • Built-in casters and side handles for easy transport and installation.
  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

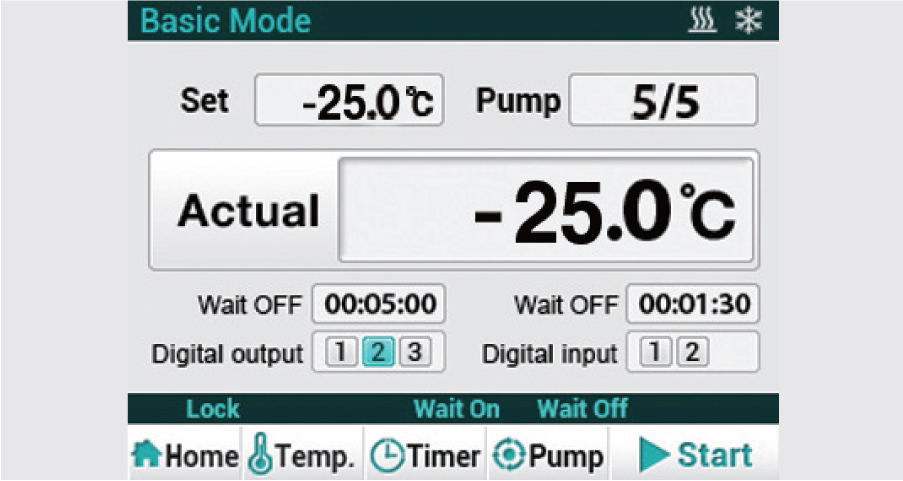

Touch LCD Controller

Safety

  • Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
  • Temperature warning Indicator simply shows inner reservoir’s temperature by three different colors.
  • Complete safety protection system with warning alarms.
    – Low fluid level and dry-running, over-temperature, over-current.
  • Keypad lock function prevents accidental changes during operation.
  • Splash-proof keypad.

Heating & Cooling Block

Heating Blocks

Ideal for simultaneous sample heating of multiple vials or test tubes with uniform and precise temperature control. with optional block Model Name : CHB-350S/350T

Performance

  • Precision accuracy of ±0.1°C is ensured by PID controller from ambient + 5°C to 130°C.
  • Its built-in temperature limit setting feature (with max. 0.2°C overshooting) allows you to perform highly temp. sensitive reactions such as isothermal amplifications.
  • Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion-resistant anodized aluminum blocks.
More Details



Convenience

  • Bright VFD display with responsive touch buttons.
  • Advanced dual wait on/off timer modes.
    – User can set timer to starts immediately after the timer setting or only after reaching the set temperature.
  • Transparent lid allows easy sample monitoring and even temperature distribution.
  • Blocks can be easily interchanged by the included block lifter

Safety

  • Self-diagnostic function identifying errors.
  • Over-temperature and over-current protection.
  • Its polypropylene main body is highly chemical-resistant and easy-to-clean.
  • On/Off timer. (up to a maximum of 999 hours and 59 minutes)
  • Easy operation with a touch color display.
  • Drain port of better accessibility located on the side.
  • USB port to connect to PC for recording and monitoring.
  • Transparent gable roof-shape cover prevents condensed water from falling onto specimen.
  • Corrosion resistance spring wire rack (1ea) is provided. (Standard)
  • Real-time temperature and rpm control via mobile monitoring system. (Option)

Safety

  • Audio and visual alarms and heater shutdown in case of water shortage.
  • Alarm for temperature and rpm discrepancies or abnormal condition of temperature sensor.
  • Over-current and short circuit protection of device.

Incubators

Incubator, Forced Convection (Advanced, IB4-V)

Uniform temperature distribution through airflow optimized for uniform heat transfer and Opti-flow™, the fan speed control function based on sample and testing conditions Model Name : IB4-03V, 05V, 10V, 15V

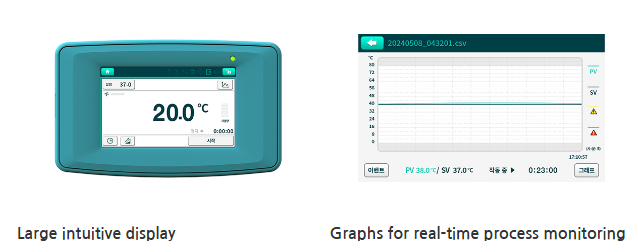

Intuitive Large Touch Controller

  • Intuitive interface with 5-inch display.
  • Events and alerts in a single view with real-time graph.
  • Three frequent temperatures automatically suggested.
  • ‘Wait on / Wait off’ timer function.
More Details

Intuitive Large Touch Controller

  • Intuitive interface with 5-inch display.
  • Events and alerts in a single view with real-time graph.
  • Three frequent temperatures automatically suggested.
  • ‘Wait on / Wait off’ timer function.

Unique Structural Functions

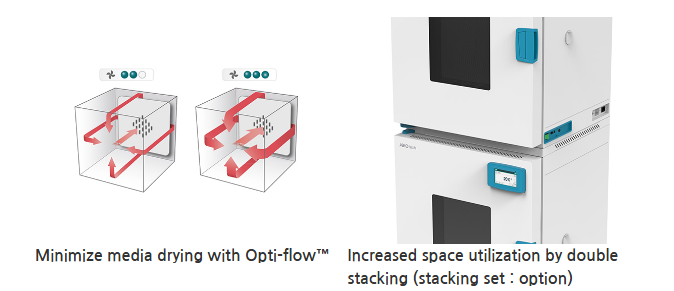

  • Opti-flow™, the fan speed control function based on sample and testing conditions.
  • stackable with stacking set (option) maximizes space utilization.


* Double stacking example: (top) forced convection oven / (bottom) forced convection incubator

Supervise Equipment with Real-time Monitoring

  • Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
  • Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)



Convenient Experiment and Data Checking

  • Support RS-232/USB port and software making easy operation and data management from PC.
  • Test data are automatically stored and easily exported via USB; easy to edit data. (in CSV format)
  • Logs 36 recent events, including errors, opened door, etc.
  • Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)


Reliable Temperature Control Performance

  • Temperature accuracy for wide range by 3-point calibration
  • Ramp Control™, function that controls the rate of temperature rise by setting ramping rate(℃/min) per experiment.
  • Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±0.41 ℃ at 37℃)

Low Temperature Incubators (Forced Convection)

Superb low temperature incubation by noiseless compressor cooling system. Model Name : IL3-15/25

Performance

  • Temperature range from 0°C to 80°C.
    – Silent cooling system reduces water evaporation within the chamber.
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning.
  • Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
  • accuracy of ±0.1°C is ensured by PID controller from ambient + 5°C to 130°C.
  • Its built-in temperature limit setting feature (with max. 0.2°C overshooting) allows you to perform highly temp. sensitive reactions such as isothermal amplifications.
  • Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion-resistant anodized aluminum blocks.
More Details

Convenience

  • Large chamber volume: maximum 242L.
  • Bright VFD display (0.1℃resolution)
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.) with heating level indication and quick adjustable dial knob.
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
  • Convenient preset function for 3 most commonly used temperature settings.
  • Built-in electrical outlet with a safety cover inside the chamber.
  • Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
  • Rounded inner chamber corners for easy cleaning and optimal airflow.
  • Quick-release front grill for easy cleaning of the condenser.
  • Built-in RS-232 port and USB port for external control and data collection.
  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety

  • Automatic run after power interruption.
  • Over-current protection.
  • Triple independent temperature monitor system.
    – Temperature deviation alarm (High/Low)
    – Electronic temperature limiter (High/Low)
    – Mechanical over-temperature limiter (High)
  • Keypad lock function prevents accidental changes during operation.
  • Audible and visible open door alarms.

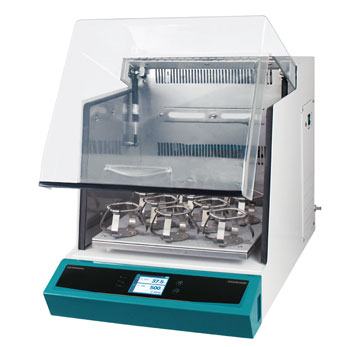

Incubated Shakers (Tabletop)

Digital incubating/ refrigerating benchtop shakers. with optional dedicated platform and universal attachment Model Name : IST-3075/3075R/4075/4075R

Performance

  • Temperature range:
    – Ambient +5°C to 80°C for IST-3075 / 4075.
    – Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R.
  • Competitive high shaking speed up to 500 rpm.
  • Orbital shaking motion in 19mm diameter.
  • Microprocessor PID control
More Details

Performance

  • Temperature range:
    – Ambient +5°C to 80°C for IST-3075 / 4075.
    – Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R.
  • Competitive high shaking speed up to 500 rpm.
  • Orbital shaking motion in 19mm diameter.
  • Microprocessor PID control.
  • Three point temperature calibration / Automatic tuning.
  • Wide speed range even with heavy workload.
    – Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion.
  • Pleasant test environment by the smooth acceleration and deceleration control.
    – Smooth start and smooth stop function prevents chemical spills from flasks or test tubes.
  • High-velocity fan ensures uniform temperature distribution and rapid thermal recovery after door open.
  • Air-tight silicone door seal to provide excellent temperature uniformity

Convenience

  • Intuitive touch screen LCD controller with easy icons and logical menus.
  • Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
  • Wide sample monitoring and convenient sample loading.
    – Convenient sample monitoring without affecting inside environment thanks to the three side transparent acryl lid with bright LED lamps.
    – Gas spring lid supports providing smooth motion, soft opening and closing.
  • Repetitive task can be easily performed as the platform stops where it starts.
    – Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
  • Corrosion resistance stainless steel interior.
  • Built-in RS-232 port and USB port for external control and data collection.
  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox).

Safety

  • Automatic run after power interruption.
  • Temperature and shaking speed deviation alarm.
  • Over-current protection, Stalled platform check.
  • Mechanical over-temperature protection device.
  • Environment-friendly CFC-free refrigerant. (for IST-3075R / 4075R)
  • Audible and visible open door alarms.

Ovens

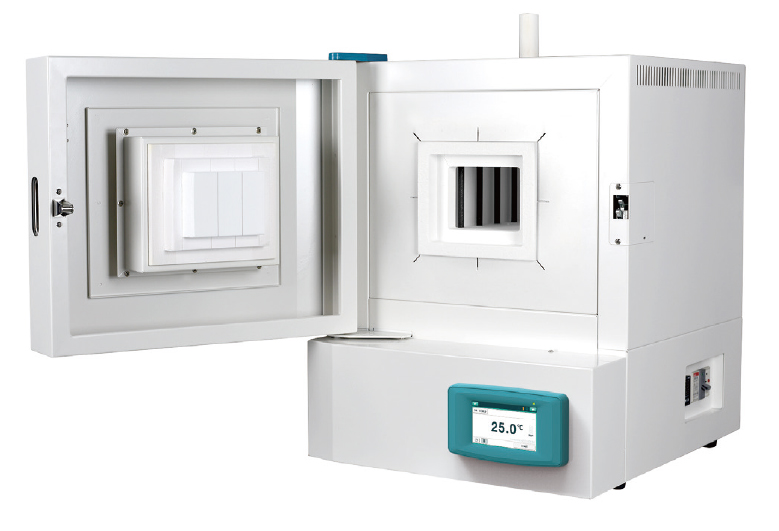

Muffle Furnace

Electric furnace for high temperature experiment at 1100 ℃ Model Name : MF2-12G/GF, MF2-22G/GF, MF2-32G/GF

Enhanced user convenience of touch controller

  • Intuitive use with a large 5-inch TFT touch controller.
  • Auto 3 temperature recommendation based on operating history without any recording or storage.
  • Timer(wait on, wait off) and Ramp(temperature increase rate) function
  • Monitor and control via a mobile app anytime, anywhere, with LC Connected. (Mobile monitoring system) (Option)
  • Recording the 36 most recent events, such as start/stop of operation and error occurrence.
  • 075 / 4075.- Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R.
  • Competitive high shaking speed up to 500 rpm.
  • Orbital shaking motion in 19mm diameter.
  • Microprocessor PID control
More Details

Enhanced user convenience of touch controller

  • Intuitive use with a large 5-inch TFT touch controller.
  • Auto 3 temperature recommendation based on operating history without any recording or storage.
  • Timer(wait on, wait off) and Ramp(temperature increase rate) function
  • Monitor and control via a mobile app anytime, anywhere, with LC Connected. (Mobile monitoring system) (Option)
  • Recording the 36 most recent events, such as start/stop of operation and error occurrence.



Easy program settings intuitively without a manual (MF2-G : program type only)

  • Available to set up to 10 programs and 10 steps.
  • Available to set up to 99 repetitions of program from 0.
  • Function of setting the start temperature to begin an experiment at an accurate temperature the user wants.
  • Possible to skip to the next step or hold the current step during program operation.
  • Available to set a deviation of temperature or time to keep going a program operation even if the temperature is not reached to the target accurately.
  • A useful scheduler function available to select and schedule the desired day, time, and program for repetitive experimental settings.

Highly reliable temperature control performance

  • Possible to set the rate of temperature change (℃/min) (Ramp function) to control it.
  • Minimizes heat loss through the use of durable ceramic insulation materials.
  • Excellent interior sealability due to shock absorbers on the doors and a sturdy double-door structure.
  • Stable temperature control through digital PID control.
  • High-precision temperature control over a wide range of temperatures through a 3-point calibration process.

Various safety functions ensure user safety

  • A safety door lock function that opens only below the door lock temperature set by user.
  • A built-in electronic overheat protection system that prevents the equipment from being damaged due to overheating.
  • Front surface of the product is safe even when operating at the maximum temperature.
  • The equipment stops working when the door is opened for safe use.

Pumps

Aspirator Pumps

Select the optimum model between two different types of pump.

Both are suitable for rotary vacuum evaporation, decompression distillation, and vacuum filtering.
Especially rotary vacuum pump provides more powerful pumping ideal for vacuum drying.

Model Name : VE-11


More Details

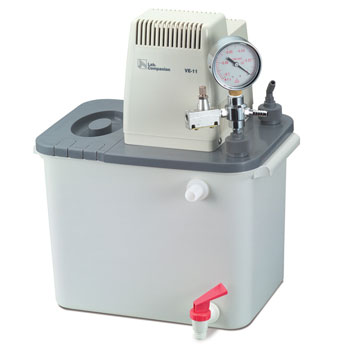

Electrical Aspirator Pump

  • Portable dual-channel water-jet aspirator pumps
    – Creating a vacuum by means of venturi effect, aspirator pumps are suitable for rotary vacuum evaporation, decompression distillation, vacuum drying, and vacuum filtering.
  • Built-in circulating pump and water tank make the unit portable.
  • Circulating pump continuously pumps water quietly across a set of aspirators, and is therefore clean and efficient.
  • Built-in check valve prevents backflow of water into the aspirator pump.
  • Corrosion-resistant construction of all wetted parts with 304 stainless steel, polypropylene, silicone, or nickel-coated brass.
  • Water tank features a drain port and a spigot for easy changing of water.

Chiller (Recirculating Cooler)

Chiller (Recirculating Coolers) (Compact)

Chiller (Recirculating Coolers) (Compact)

This compact designed model is ideal for cooling small laboratory equipment in daily use.

Model Name : RC-05

More Details

Performance

  • Temperature range from -20°Cto 30°C.
  • Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.

Convenience

  • Clear and easy-to-use LCD display. (resolution 0.1°C)
  • Bright LED water level indicator can be seen from a distance.
  • Wide filling inlet for easy and safe pouring of solution into the unit.
  • Double service valve prevents refrigerant leakage for easy maintenance.
  • Removable gridded vent for easy maintenance of condenser.
  • Compact design for space saving. The unit is suitable for stable temperature cooling compact devices such as rotary evaporators in laboratory.
  • Variety of accessories are available to meet application demands.

Safety

  • Self-diagnostic function identifying errors.
  • Complete safety protection system with warning alarms.
    – Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
    – Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
    – Over-current circuit breaker.
  • Eco-friendly R-507 refrigerant use for environmental protection.
  • Splash-proof keypad.

Refrigerators & Freezers

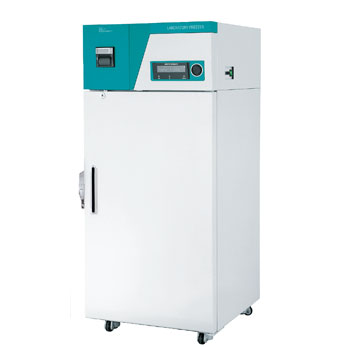

Laboratory Freezers

A variety of freezer models for subzero degree storage of your sensitive lab material with innovative defrost system.

with optional recorder

Model Name : FCG/FMG models


More Details



Performance

  • Excellent freezing control down to minimum -35°C (model dependent)

– FCG model down to -35°C

– FMG model down to -25°C

Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.

  • High thermal efficiency evaporation system, made of low corrosive materials.
  • Dual defrost systems
  • – Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator.
  • – Additional manual defrost system for immediate frost removal.

Convenience

  • Four-temperature different freezing models cover various storage application.
  • Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
  • – Easy temperature unit conversion between ℃ and ℉
  • Air-tight door seal and lockable door latch enhances tightness to door closure.
  • High-quality 304 grade stainless steel interior.
  • Efficient internal space use with height adjustable wire shelves.
  • Dedicated stand with casters and stacking kit for FMG/FCG- 150 for use in labs with limited space. (optional)
  • Three types of recorders to choose from (optional)
  • – Dot recorder (6 point)
  • – Chart recorder (6”, 24hr/7days)
  • – Thermal line recorder

Safety

  • High/low temperature protection, Over current protection.
  • Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss.
  • Keypad lock function, Built in door lock with a key.

Your dedicated partner in providing high-quality laboratory and research equipment. With years of industry experience, we specialize in supplying cutting-edge laboratory instruments, research equipment, and essential lab tools to support scientific discovery, educational advancement, and innovation across various industries.

Our Manufacturing Principals

Contact Info

© 2025 | REIDIUS TECHNOLOGIES | All Rights reserved.
