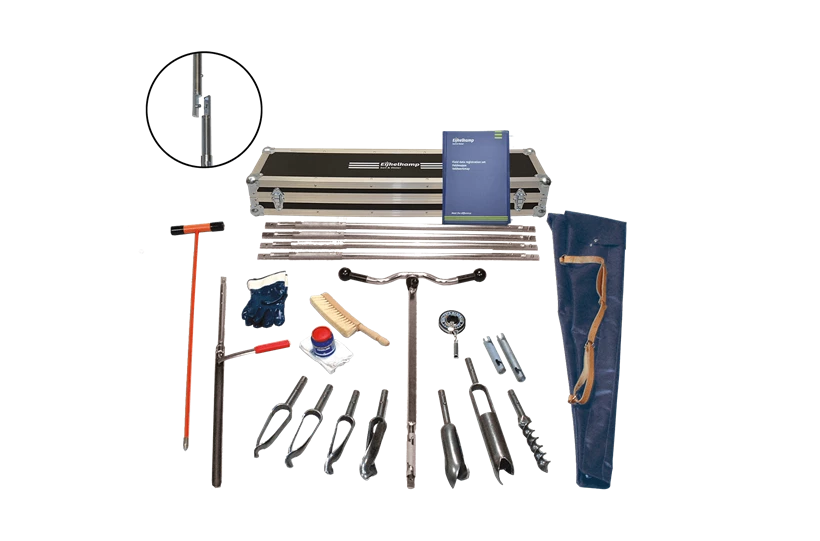

This auger set has an ergonomic ratchet handle for safer use. It is suitable for hand-operated augering up to 5 metres depth in heterogeneous soils. The augers have a bayonet connection.
The ergonomic hand operated auger set contains an ergonomic ratchet handle, extendable from 25 centimetres to 50 centimetres, with insulated grips, and different auger types with a diameter of 7 centimetres.
This auger set is used to carry out manual drilling, sampling, and investigation (e.g. soil horizon, geology and archaeology) in a variety of soils in an ergonomic way. The specially designed handle allows effortless and comfortable work in the field.
Applications
Set contains
| Hand auger set – bayonet connection, ergonomic | |
|---|---|
| Connection | Bayonet |
| Drilling diameter | 7 cm |
| Maximum sample depth | 5 m |
| Product material | Iron, other material |
| Sample length | 10 cm |
| Sample specification | Disturbed |
| Sampler position | Vertical |
| Package size | 120 x 65 x 30 cm |
| Weight | 29 kg |
To obtain a reliable soil sample, it is of great importance to use the correct hand auger. Our experts have designed two types of connections (bayonet and conical screw thread – more on this below), to make drilling to greater depths possible. The hand augers are made of high-quality non-toxic steel, which makes them extremely suitable for soil and environmental research.

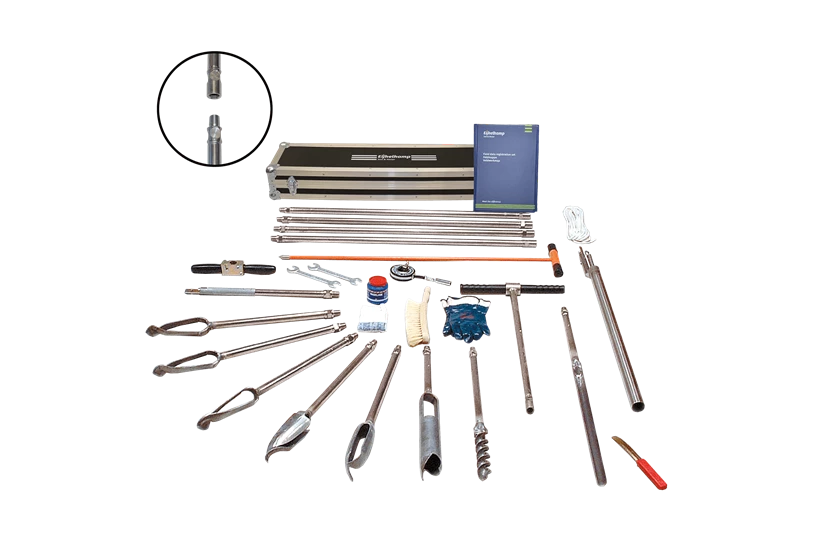

Auger set for hand operated augerings up to 5 metres depth in heterogeneous soils. This is a standard set for augering, with unpainted augers for environmental research. The augers have a conical screw thread connection.
The standard hand auger set is comprised of a (60 centimetres handle with synthetic, detachable grip and different auger types with a diameter of 7 centimetres. All with screw thread connection, which makes it more sturdy than the standard set with bayonet connection.
This auger set is used to carry out manual drilling, sampling and investigation (e.g. soil horizon, geology and archaeology) in a variety of soils.
Applications
Set contains
| Hand auger set – conical connection, standard | |
|---|---|
| Connection | Bayonet |
| Drilling diameter | 7 cm |
| Maximum sample depth | 5 m |
| Product material | Iron, other material |
| Sample length | 10 cm |
| Sample specification | Disturbed |
| Sampler position | Vertical |
| Weight | 32 kg |
To obtain a reliable soil sample, it is of great importance to use the correct hand auger. Our experts have designed two types of connections (bayonet and conical screw thread – more on this below), to make drilling to greater depths possible. The hand augers are made of high-quality non-toxic steel, which makes them extremely suitable for soil and environmental research.

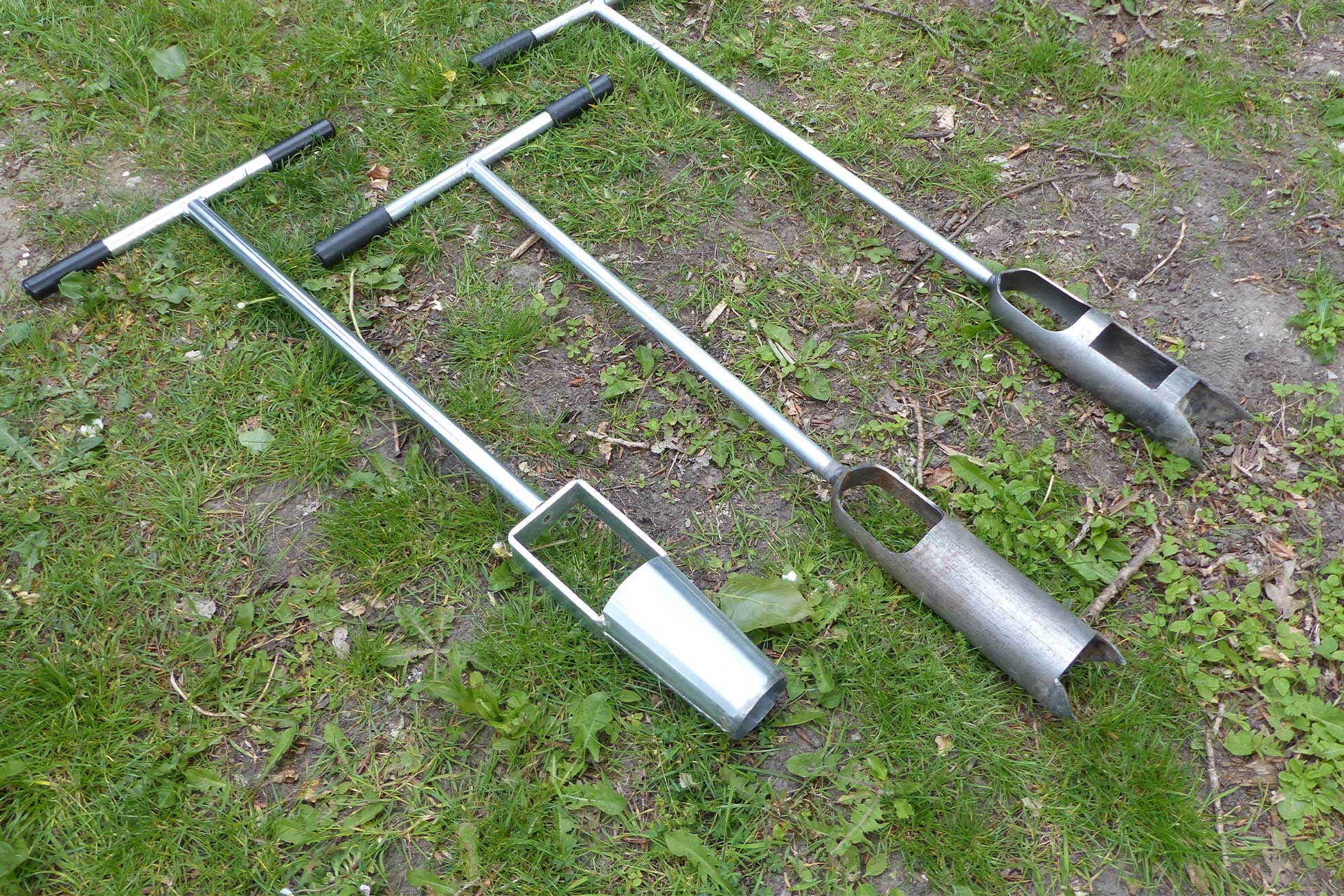

The two-piece root auger is used to take uniform samples (almost undisturbed) in layers of maximum 15 centimetres to a depth of 2 metre. With this root auger, it is easy to take a sample from all non-stony-like soil layers.
By applying the two-piece root auger, nearly undisturbed and uniform soil samples can be taken in layers of maximum 15 centimetres. The bi-partite root auger consists of a bottom part fitted with an exchangeable drilling-crown and a short unscrewable top part (handle) with a beating head.
In lighter soil the auger can be pushed and turned into the soil. In heavier soils an impact absorbing hammer can be used.
In the standard set an Edelman- and a Riverside auger have been included for reaming out the bore hole and levelling the bottom (making it even). A conical threaded connection is used.
The root auger is fitted with a sample extruder unit which forces the soil sample from the cylinder of the auger. The extruder unit is operated by means of a crank handle.
The complete root auger set, including all accessories, is packaged in an aluminium transport case.
Applications
| Bi-partite root auger set | |
|---|---|
| Connection | Screw thread |
| Maximum root thickness | 20 mm |
| Maximum sample depth | 2 m |
| Product material | Iron, other material |
| Sample diameter | 80 mm |
| Sample length | 150 mm |
| Sample specification | Undisturbed |
| Sample volume | 750 ml |
| Sampler position | Vertical |
| Package size | 117 x 27 x 23 cm |
| Weight | 27.5 kg |
The root sampler is recommended for examining the development of a root system, so for determining the depth and density of the root system. Royal Eijkelkamp can offer a single (one-piece) and an extendable (two-piece) version. Which variant you choose depends on the application and the depth you need to auger to.

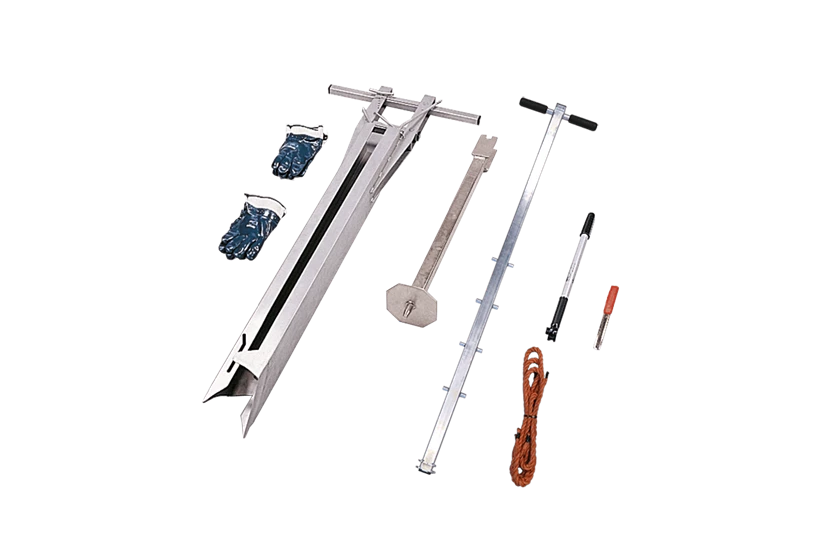

The peat profile sampler, type Wardenaar, is an apparatus for sampling intact, undisturbed peat profiles in peat lands up to a depth of 1 meter.
The peat profile sampler consists of a rectangular stainless steel box casing, divided lengthwise into two halves, with very sharp specially shaped cutting edges at the base.
The handgrip hinging with both halves allows both halves to be pushed into the soil alternatingly.
The peat profile sampler consists of a rectangular stainless steel box casing, divided lengthwise into two halves, with very sharp specially shaped cutting edges at the base.
The handgrip hinging with both halves allows both halves to be pushed into the soil alternatingly.
A clamp mechanism on the grip allows the profile to be clamped in the sampler when it is extracted from the soil.
A small diameter tube is fitted to break the suction of the sample.
Set consists of
Applications
The profile sampler differs from other sampling devices by taking a rectangular sample from the top layer. The device makes it possible to take a sizeable and virtually undisturbed sample. The roots, up to a diameter of 2 centimetres, are included in the sample. The sample is easy to remove, which reduces the risk of disturbance to a minimum.

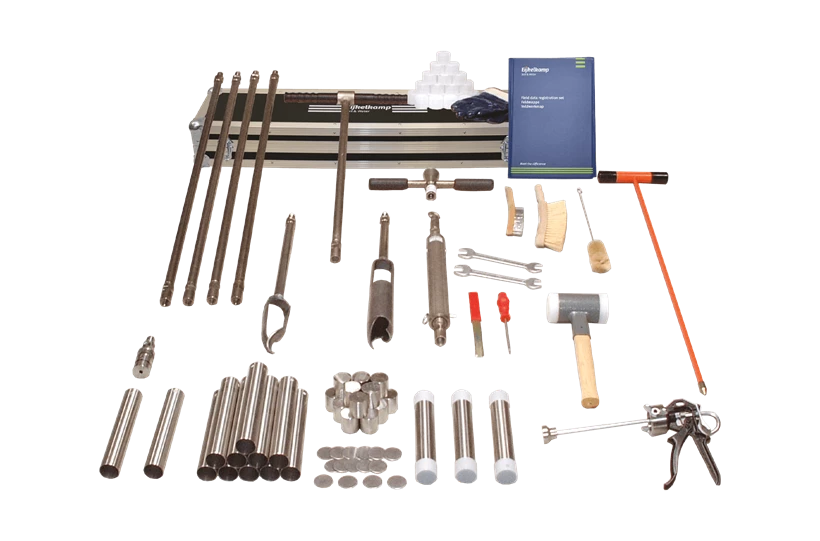

The soil coring kit for chemical research, for establishing the presence of volatile components in the soil, is suitable for augering down to a depth of 5 metres. This kit allows sampling for environmental research of soil containing volatile components. The method employed meets the NEN 5743 standard.
With our special coring kit, volatilisation and oxidation of components in soil samples can be prevented as much as possible. This is due to the fact that during sampling, the sample is pushed into the sample tube, after which the tube is shut off. This will optimally prevent volatilisation and oxidation of the soil sample. So the sample under no condition comes in touch with synthetic material. This method meets the NEN 5743 norm (soil or sediment sampling with volatile components). You can also combine it with the methanol method.
The sample has a volume of 226 millilitres. The set therefore also is suitable for the determination of volume percentages of humidity in samples from undisturbed soil. With this set it is possible to take samples to a depth of more than 5 metres.
The samples are taken with a small coring apparatus fitted with thin-walled stainless steel sample tubes. The sampling tubes are preferably pushed into the soil by hand, but a steel hammer with nylon heads can also be used.
After taking the sample, the sample tubes can be locked and cooled for transport to the laboratory. Here sub-samples can be taken from the sample tube, applying a small gauge or apple-corer. The samples can also be removed using an extruder. All the parts, except the caps, can be decontaminated over and over. After decontamination the equipment can be used again. Please note that this set is not suitable for stony soils.
| Soil coring kit – chemical soil research | |
|---|---|
| Connection | Screw thread |
| Maximum sample depth | 7 m |
| Product material | Stainless steel, iron, other material |
| Sample diameter | 37 mm |
| Sample length | 20 cm |
| Sample specification | Undisturbed |
| Sample stored in | Foil |
| Package size | 117 x 27 x 23 cm |
| Weight | 27.54 kg |
A successful laboratory analysis starts in the field; it all depends on the quality of samples. It is important therefore to use the right equipment to take undisturbed high quality samples. Royal Eijkelkamp has developed a varied range of undisturbed core samplers to meet all needs in the field and in the laboratory.

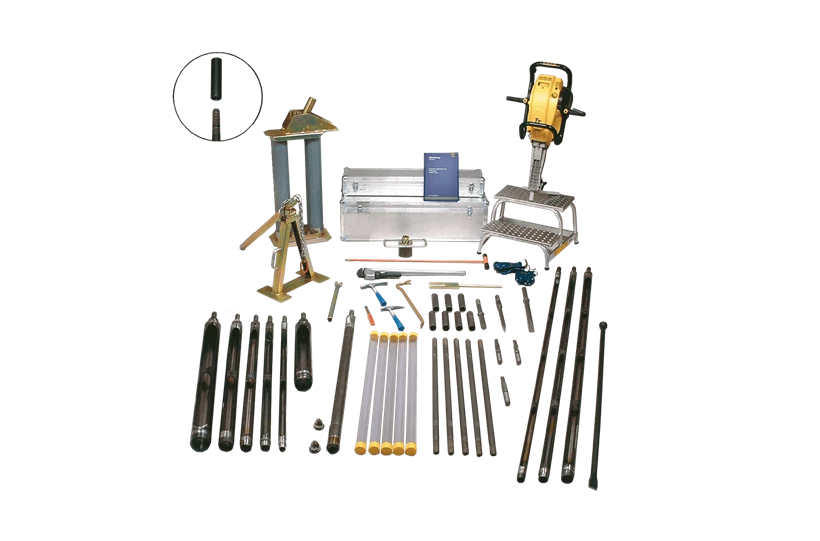

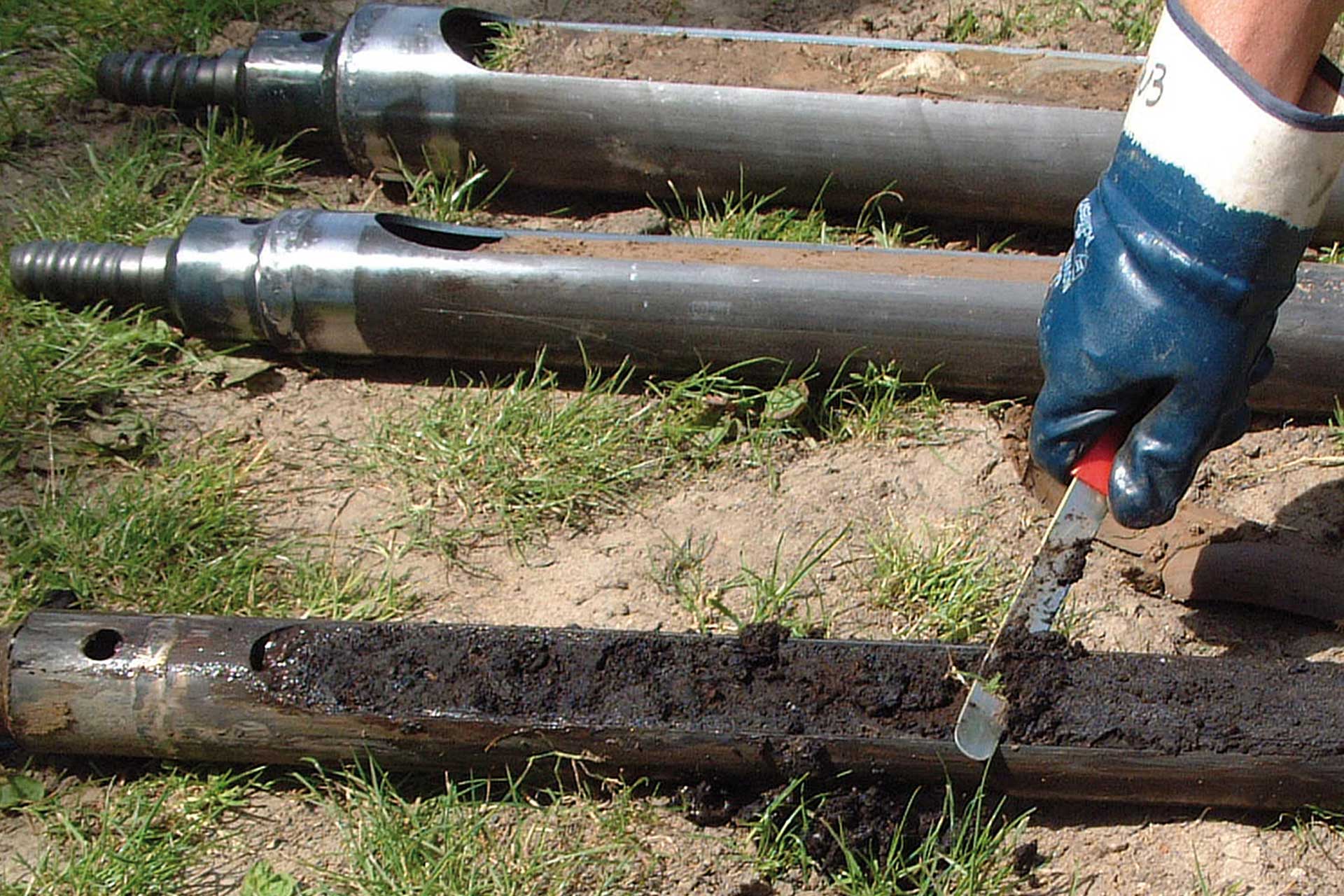

The percussion drilling set for heterogeneous soils with RD32 and a gasoline powered percussion hammer (Cobra TT) is standard equipped for drilling to a depth up to 5 metres.
The percussion drilling set is perfect for soils with bricks or large stones, which makes it suitable for use in urban areas or industrial sites, for example. With this drilling set you get beautiful clean samples without the use of lubricants.
The set is equipped with extremely robust rods and gouges. The different diameters allow efficient, fast and light work. Please note that this set does not replace cutting with a diamond core and is not intended for fibrous material. Do not use the set on dry glacial loam, porosity is required.
RD32-connection
The percussion drilling sets are equipped with RD32-connection extension rods and percussion gouges are screwed together using a coupling sleeve. The RD32-connection is used in firmer, dryer soils. The RD32-connection takes very little time to attach and take off. The RD32-rods connect together by means of a coupling sleeve, which means that the massive extension rods have the same diameter along the entire length, which makes them very strong.
Applications
Set contains
For larger depths we offer (Sonic)drilling and CPT equipment.
* Please check that the stones and/or bricks do not exceed the diameter of the percussion gouges too much. If the stones can be pushed aside by the cutting shoe, or they can enter the gouge, there’s no problem. Too large stones, or bricks that can not move, shall block the drilling and most likely break or damage the cutting shoe on the percussion shoe. However, cutting shoes can easily be replaced.
| Percussion drilling set – hammer Cobra TT, RD32 | |
|---|---|
| Connection | Screw thread |
| Drilling diameter | Maximum 10 cm |
| Maximum sample depth | 8 m |
| Power supply | Gasoline |
| Product material | Iron, other material |
| Sample diameter | 40 – 100 mm |
| Sample length | 50 – 100 – 200 cm |
| Sample specification | Undisturbed |
| Sample stored in | Foil, tube |
| Sampler position | Vertical |
| Package size | 223 x 80 x 80 cm |
| Weight | 375 kg |
Our machine-operated auger sets make motorised augering to a depth of 10 metres possible in hard soils. This instrument is specially designed by Royal Eijkelkamp for soil sampling and drilling in hard soils with layers of rubble and stone. The instrument is especially ideal when something cannot be solved with manual drilling.

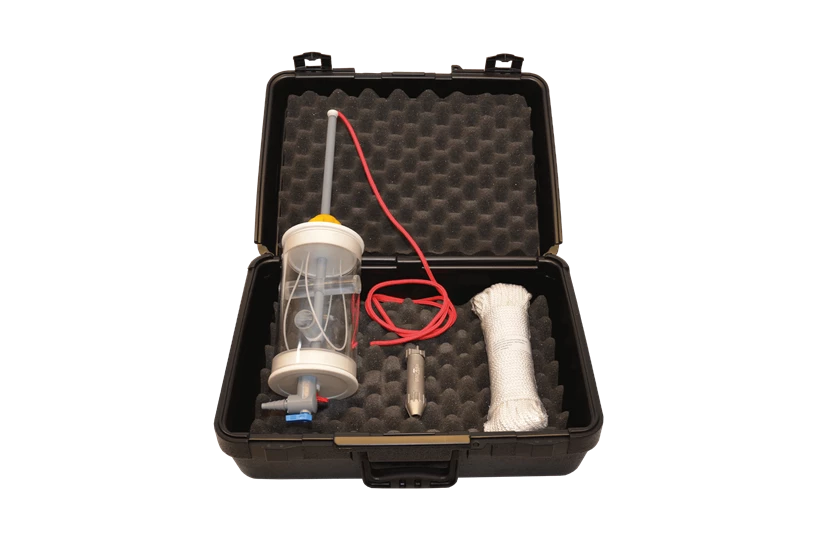

The Kemmerer water sampler with vertical water bottle can be used for general water sampling in lakes, channels, wells and the sea. Because this sampler consists entirely of plastic parts, there is no danger of the sample coming into contact with metal.
The Kemmerer water sampler holds 1.2 litres and is made of transparent acrylic. There are no constrictions at the top or bottom so that there is minimal vertical contamination.
This set is complete with drop-weight, 30 metres polyester rope and transport case. Last but not least, you can attach the CTD Diver to also measure temperature, vertical water depth and, if required, conductivity.
Applications
| Kemmerer water sampler, set | |
|---|---|
| Diameter | 118 mm |
| Maximum sample depth | 30 m |
| Point or profile | Point sampling |
| Power supply | Manual |
| Product material | Other material |
| Rod or cable length | 30 m |
| Rod or cable operated | Cable |
| Sample specification | Disturbed |
| Sample stored in | Tube |
| Sample volume | 1200 ml |
| Sampler position | Vertical |
| Package size | 50 x 23 x 40 cm |
| Weight | 4.2 kg |
Different samplers for water are included in Royal Eijkelkamp’s assortment. The difference is in the material and the way of sampling. This can be done by sampling the sediment while the water is flowing through the sampler, or by sampling a vertical column from the sediment in (still) water.

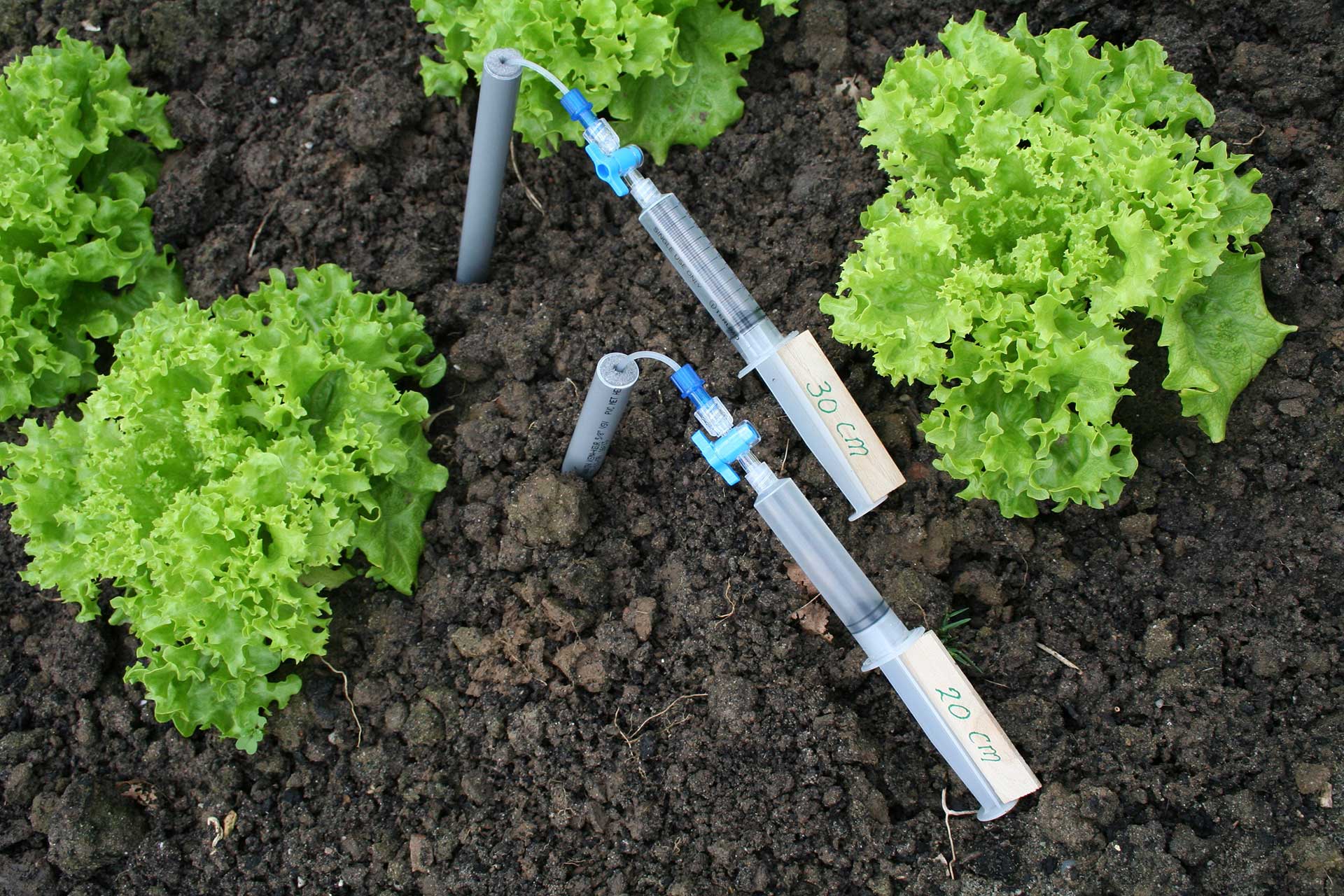

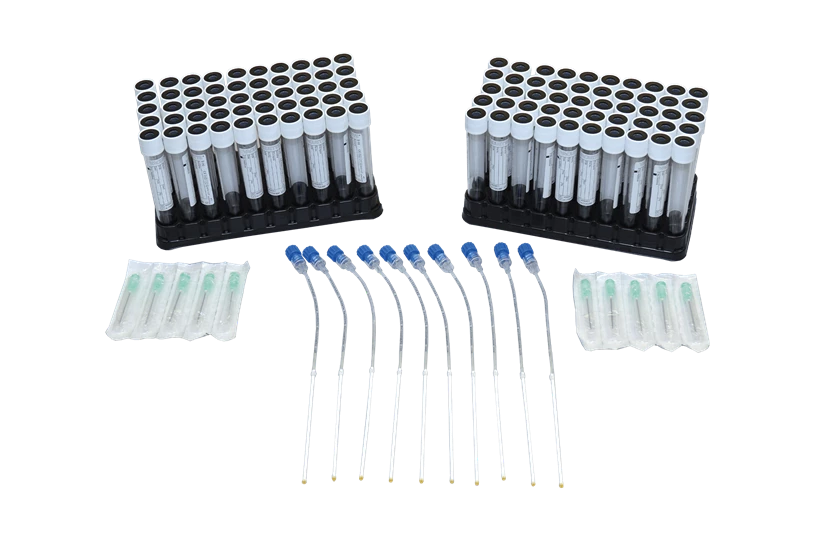

The complete Rhizon soil moisture sampler system supplies a range of miniature soil moisture samplers. The Rhizon samplers are used for repeated and reliable sampling of all dissolved components in the soil solution.
This unique sampler is made of porous plastic material (PES) and has standard 0.15-micron pores. The sampler is reinforced with wire and dissolved organic and inorganic matter will not be absorbed on the soil moisture sampler. A horizontal placement in moist soil is preferred. Water acts as a lubricant during inserting. Due to the minimal disturbance the soil will quickly settle, resulting in a good sampler-soil contact. Optional is co-extruded tubing (PE inside / PVC outside) 1 millimetre internal diameter, Luer-connectors and protective caps. This sampler type has a length of 9 centimetres and a diameter of 4.5 millimetres. For installation at greater depths, a standard sampler with PVC extension pipe can be used.
This set is ideal for studies on undisturbed soil columns and pots with plants, the standard Rhizon soil moisture samplers can be inserted through the wall. A sample is obtained by placing the sampler under vacuum, by using a vacuum tube or a syringe. During sampling, the pH value of the soil is not affected. The standard set can be extended with various accessories.
Notes
The Rhizon soil moisture samplers are available in various designs:
Applications
Set contains
The standard set can be extended with various accessories such as:
| Rhizon soil moisture sampling set | |
|---|---|
| Sampler diameter | 2.5 mm |
| Sampler length | 100 mm |
| Sampler volume | < 0.5 ml |
| Pore size sampler | 0.15 micron |
| Sampler material | PES (polyethersulfon) |
| Material strengthening wire | Stainless steel |
Soil moisture samplers allow you to sample moisture between soil particles in the unsaturated zone of the soil. Depending on the purpose of the research, there are various systems and setups to choose from. Included in our product range are the Rhizon soil moisture samplers, with thin porous polymer tube in various diameters and designs.
The Van Veen grab is used for sampling disturbed sediment. This device is used with a rope/cable and is manually controlled. The Van Veen grab is available in four different capacities.

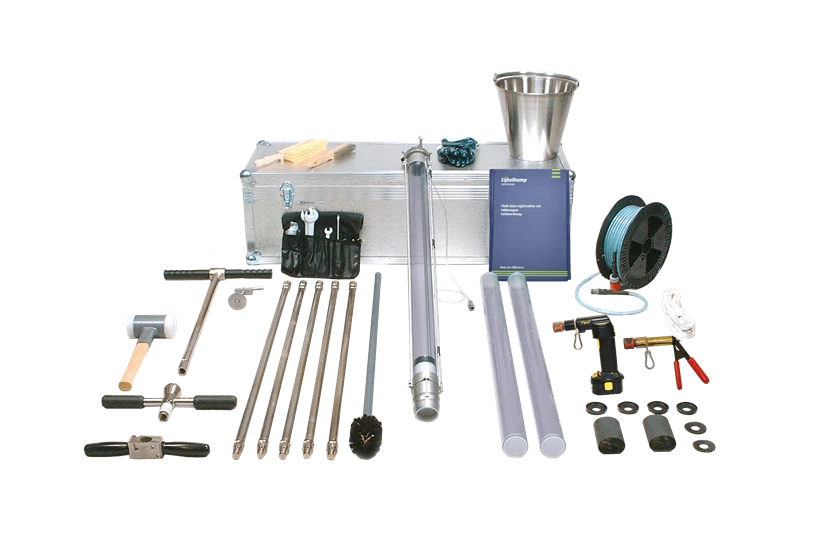

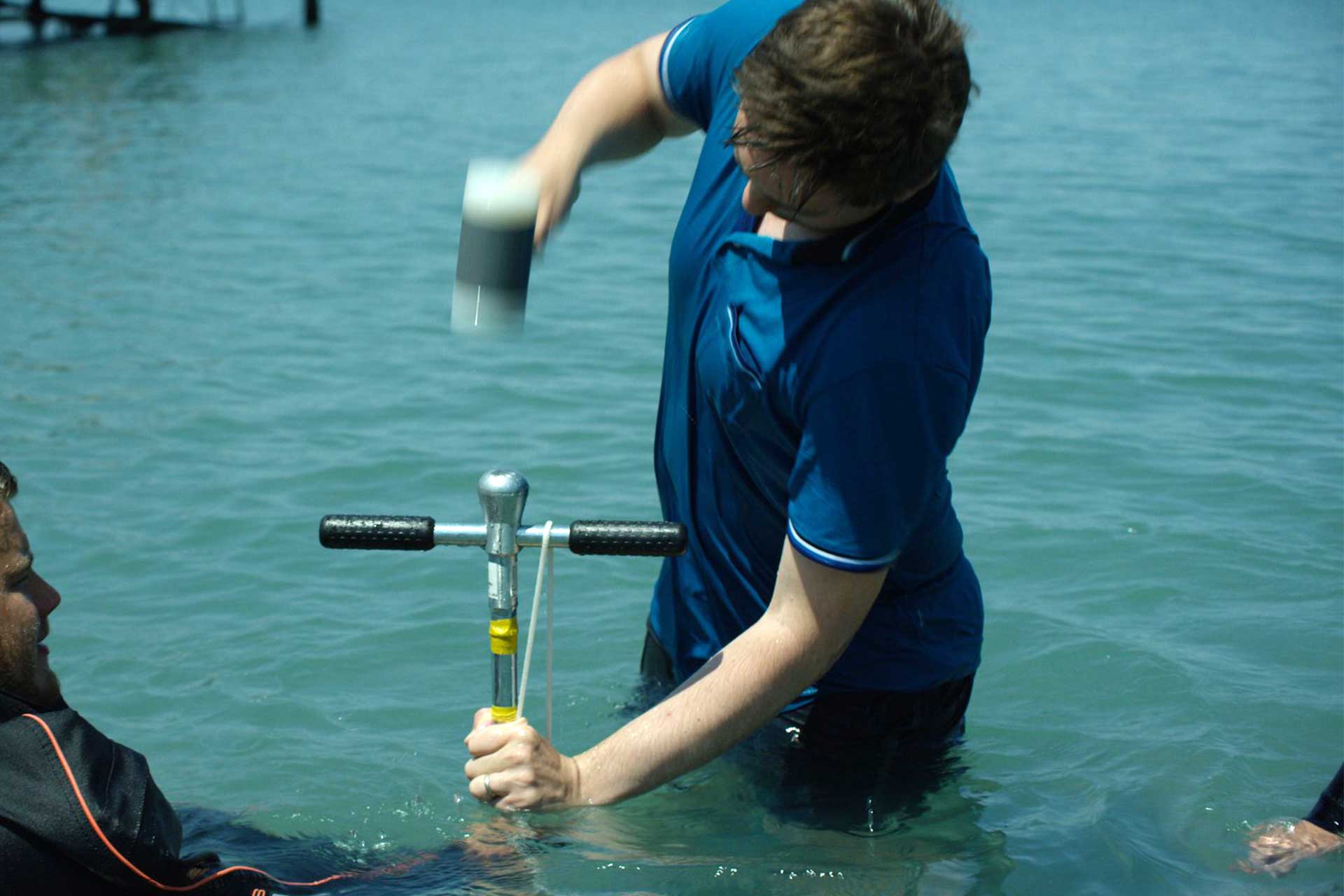

With the Beeker sampler, you can take undisturbed sediment samples in a fast and certain way from watery sediment to unconsolidated sand to a depth of 5 metres. Even in watery conditions, the sample will not be lost thanks to the closable cutting head. Using additional extension rods, sampling to greater depths is possible in certain cases. The Beeker sediment core sampler works almost the same way as a Multisampler / piston sampler, but with a lockable head with inflated membrane.
Method
The samples are taken in a transparent tube which allows you to make a clear profile description. The sampler has long sampling tubes of 1 metre. The piston can be operated directly with a rod, so that the sample can be pushed out of the sampler on site into a sample bucket. The apparatus is pushed or hammered into the sludge. To avoid compaction of the layers, a piston is held at a stationary position relative to the sludge. The sample can then be emptied into a clean stainless-steel bucket, or layer by layer in wide necked sample jar. It is not necessary to assemble and disassemble the apparatus with every new sample. This set comes in an aluminium transport case.
Extended set
In addition to the standard set (04.23.SA), an extended set (04.23.SB) is also available for sampling and discharging core samples with a length of 1 metre or 1.5 metres, in bucket or jars and to transport and divide in subsamples with water pressure. This set is suitable for sampling of submerged soils to a depth of 5 metres from very aqueous sediments to unconsolidated sand.
If you have any questions, please contact one of our experts.
Applications
Set contains
| Beeker sediment core sampler | |
|---|---|
| Connection | Screw thread |
| Sampling diameter | 57 mm |
| Maximum sample depth | 5-8 m |
| Product material | Stainless steel, iron, PVC, other material |
| Power supply | Manual |
| Sampler position | Vertical |
| Sample length | 1 m |
| Sample stored in | Tube PVC transparant (ø 63 x 57 mm) |
| Tube length | 1 m, optional 1.5 m |
| Sample volume | 2.4 – 3.5 l |
| Package size | 146 x 62 x 54 cm |
| Weight | 57 kg |
Grab samplers are used for taking disturbed samples from the bottom of lakes, rivers, etc. Various designs can be supplied that are cable or rod operated. This instrument is suitable for sampling in soft sediments, free from debris and plant growth.
The Beeker type sediment sampler is rod-operated and has a closable cutting head and piston. This sampler is used for high accuracy sampling of very soft to medium hard sediment layers. A standard and extended set are available.

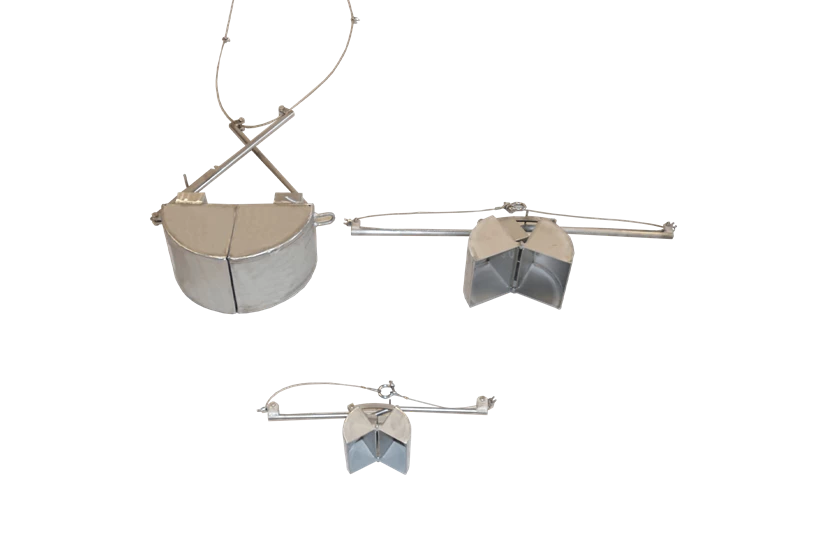

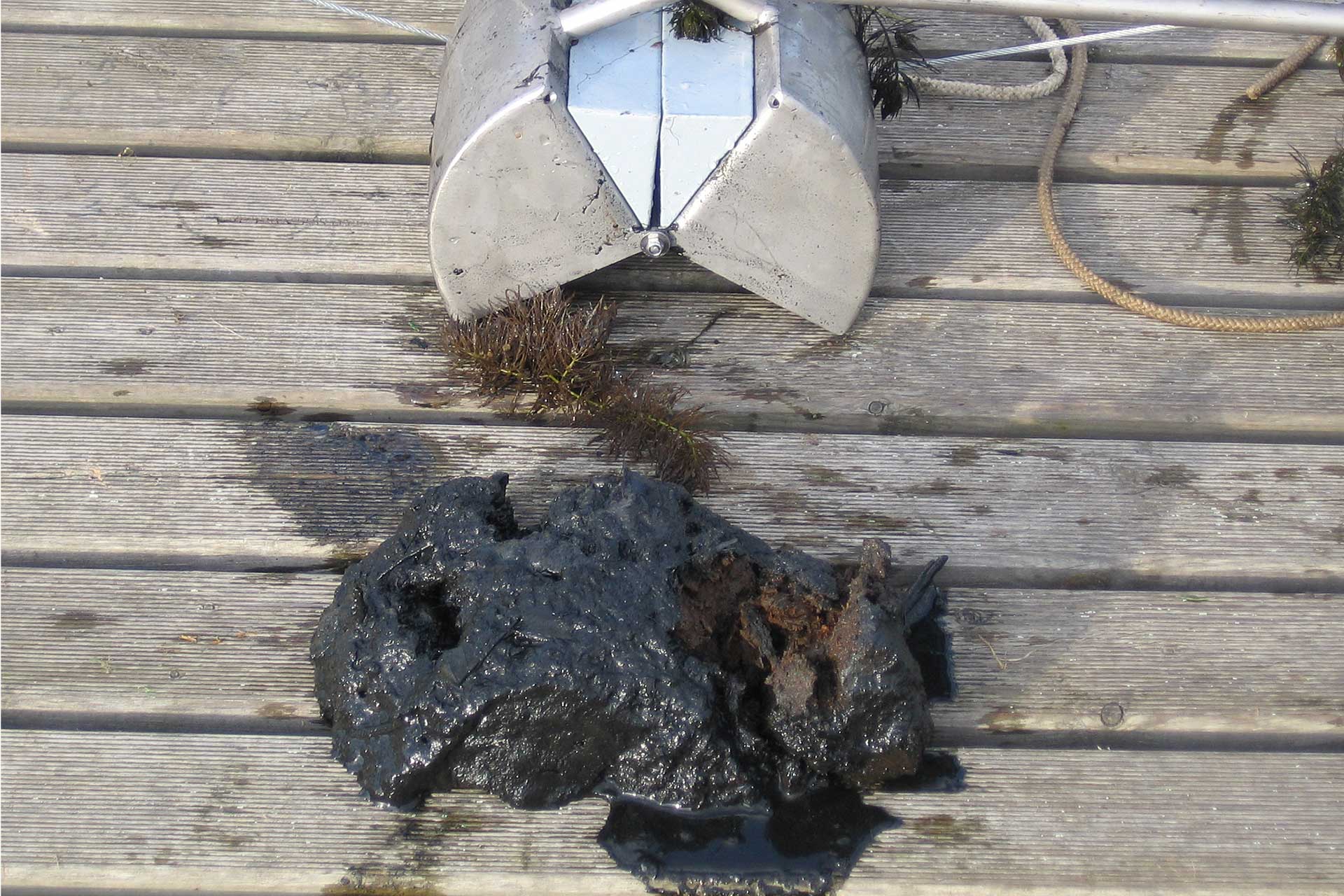

Easily collect samples at the bottom of lakes, rivers with the Van Veen grab. Simply open the jaws and take a ‘grab’ when reaching the bottom. When hoisting the rope up again the jaws will shut tight and the sample is taken. The Van Veen gab will give you a fast indication of the sediment type and is available in four different sizes. The stainless steel construction ensures that the Van Veen grab is strong and of high quality.
Method
The mode of operation of all Van Veen grabs is the same. At the surface the jaws are pushed open and kept in that position by a hook. To keep the hook in the right position the Van Veen grab should be sunk at a steady, not too high, pace. Both jaws are fitted with holes to allow air to escape during the sinking. If these holes were not there, the air would escape when taking the sample, which would result in interference with the sample. As soon as the jaws touch the bottom, the hook loosens its grip, so that, when hoisting the rope again the jaws will shut tight because of the leverage by the rods.
It is recommended to take at least 6 samples from every location and to base your conclusion on the total of the samples. This is especially important when the bottom is less regularly shaped and the bottom material consists of a mixture of materials.
Applications
Variations
| Van Veen grab | |
|---|---|
| Maximum sample depth | > 30 m |
| Sampling volume (maximum) | 0.5 – 12 l |
| Sample specification | Disturbed |
| Type of sample | Loose material |
| Sediment type | Soft/medium |
| Profile description | No |
| Suitable for use in flowing water | Flow rate of max. 0.2 m/sec |
| Usable in situations in which the pores are not filled with water (such as powders) | Yes |
| Operation | Manually or with davit |
| Weight of the set | 2 – 41 kg |
The water bottom sampler has been specially developed by Royal Eijkelkamp for taking soil samples from water bottoms. Most of the sets are suitable for undisturbed sampling of soils under water.

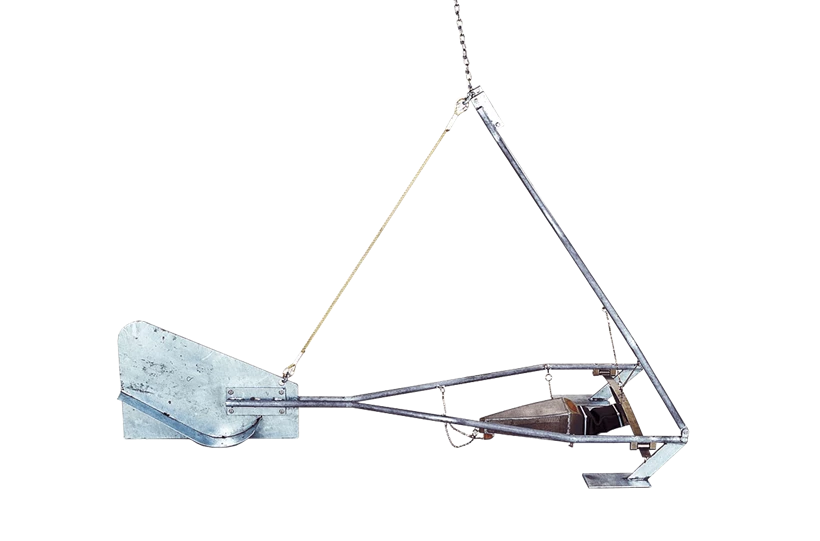

The bed-load transportmeter, type Arnhem is a sampler, used to measure bed-load of coarse sand and fine gravel in rivers and in other watercourses.
The bed-load transportmeter, type Arnhem is a streamlined sampler mounted in a frame. It consists of a mouth followed by a basket of fine wire meshing (width of the mesh is 300 μm). It is used to obtain samples of sediments and gravel rolling along the river bed.
The sharp decrease of the velocity in the wide sampling chambers causes the sediment material to settle there. The mouth allows water and fine particles to pass through and is shaped to maintain the initial water velocity. A tail fin mounted on the frame keeps the sampler in up-stream direction.
The results of the measurements are influenced by the shape of the bed (ridges, dunes, flat beds, etc.). For a successful measurement knowledge of the relief of the bed is essential. The sampler can be discharged on board using the sample trough.
Applications
Set contains
| Bed-load transportmeter, type Arnhem | |
|---|---|
| Maximum sample depth | > 10 m |
| Product material | Stainless steel, iron, other material |
| Rod or cable operated | Cable |
| Package size | 200 x 90 x 60 cm |
| Weight | 55 kg |
Sampling suspended sediment has several applications: analysis on chemical, biological, bacteriological, thermal and mineralogical aspects. The sediment transport in rivers and other waterways can also be measured. We have developed a range of samplers to obtain the most reliable data for each analysis.

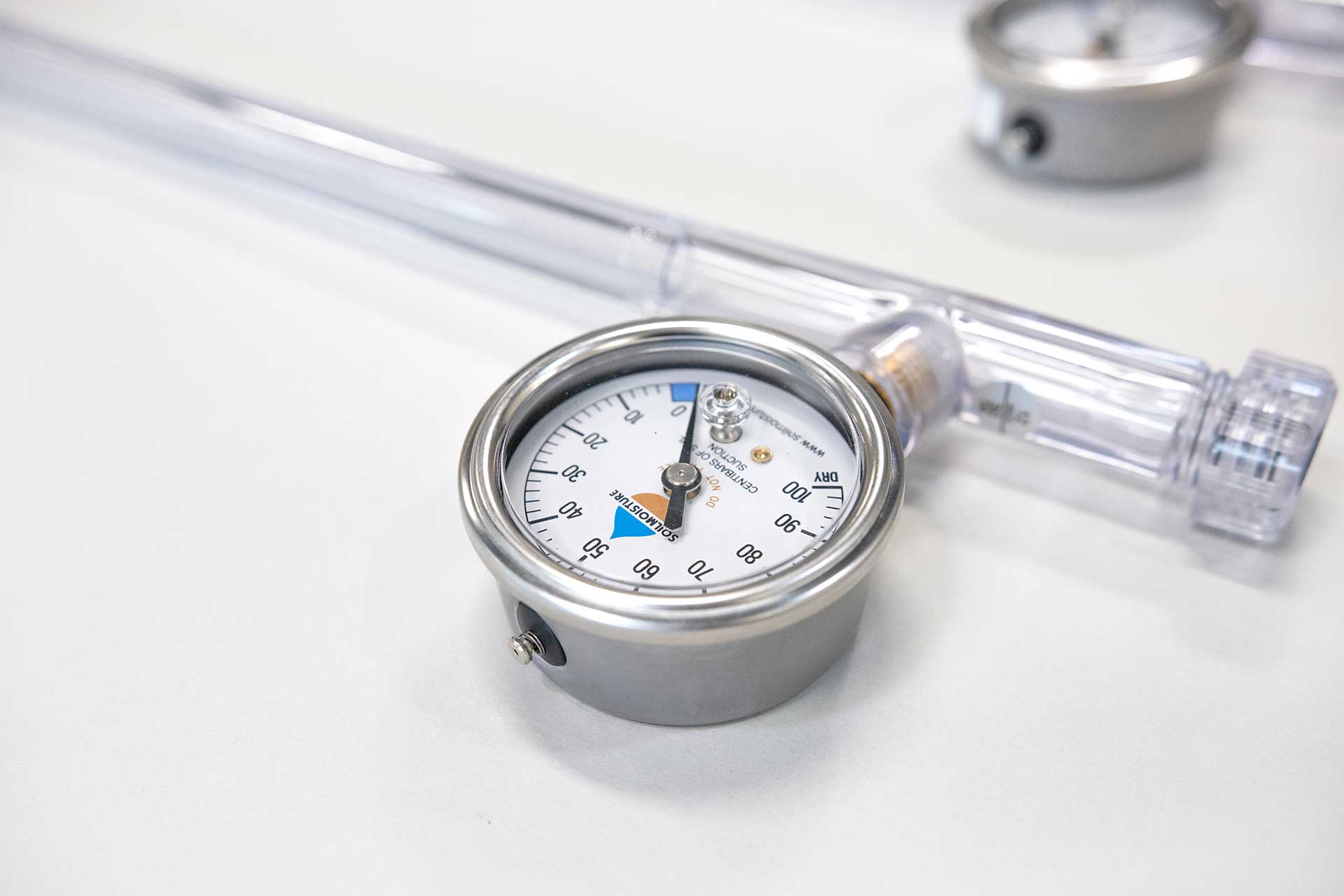

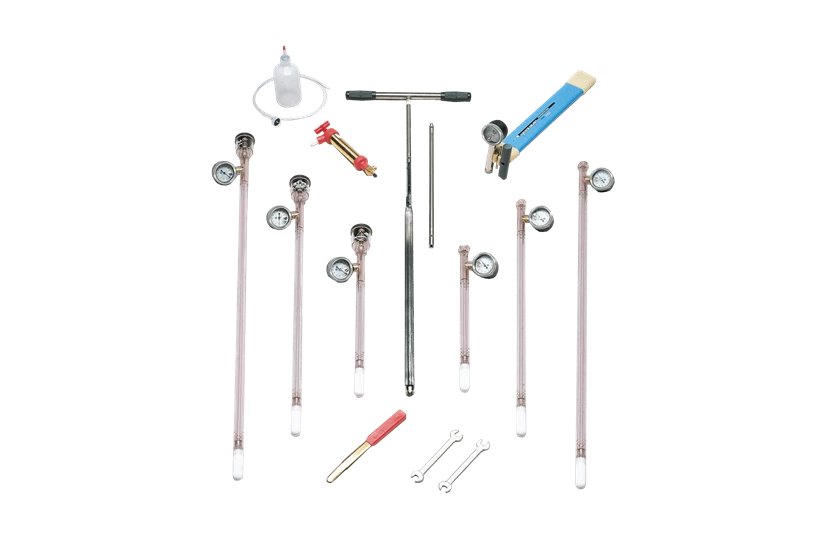

Complete standard set with different types of high quality tensiometers, suitable for multiple measurements. With this set you can do measurements up to a depth of 90 centimetre.
This multi-functional Tensiometer set can be applied to execute different research with various types of tensiometers up to a depth of 90 centimetre. Following are included:
The measuring values are read form the manometer. Besides the different types of tensiometers in various length, the set also includes a service kit, a gouge auger with extension rod and cleaning spatula.
Applications
Set contains
| Tensiometer set – to a depth of 90 cm | |
|---|---|
| Package size | 117 x 32 x 24 centimetre |
| Weight | 8 kilograms |
The determination of the soil moisture tension (in hPa, mbar or cbar) in the soil is an important aspect of complete agricultural physical soil research. Our tensiometer makes it possible to determine the soil matric potential (and thereby the moisture content of the unsaturated soil), by direct measurement in the field.

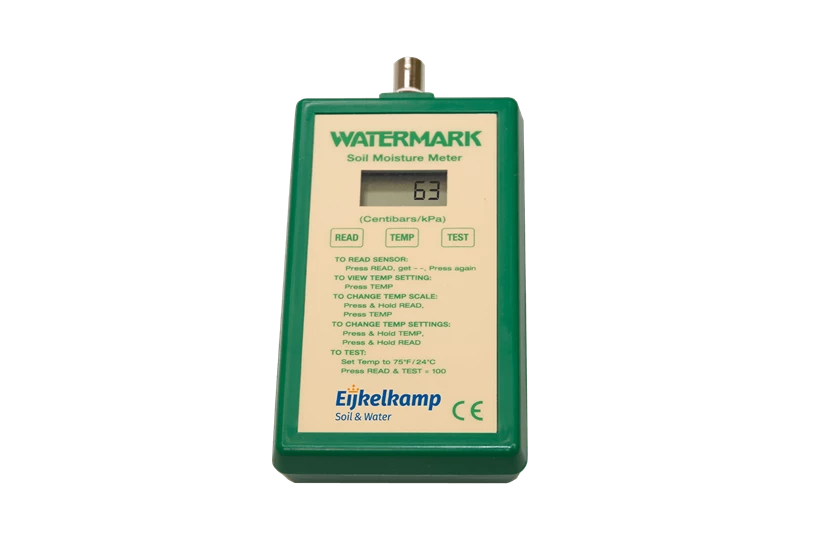

The Royal Eijkelkamp Watermark soil moisture measuring system is used to read out soil moisture sensors that measure moisture tension in the soil. With this soil moisture measuring system, more accurate measurements are possible due to the more consistent distribution of the pores.
The measuring principle is similar to that of the gypsum block system. The special sensors however do not dissolve in the soil and have a more consistent distribution of pores so that more accurate measurements are possible.
The soil moisture sensors, which have a measuring range of 0-200 kPa (0 – 200 cbar), can be used individually or in combination with a PVC tube (in various lengths) for measuring the moisture tension. The condition for reliable measurements is the optimal contact between sensor and soil. Using the special auger the holes are pre-drilled so that the soil moisture sensors can be placed at various depths. The sensors are buried permanently and have an average life of 3-5 years.
By using a soil temperature meter the temperature measured can be set in the soil moisture meter allowing for temperature correction. The electrical resistance is converted by the soil moisture meter into moisture tension in kPa. The soil moisture sensors can be used as a replacement for tensiometers in most agricultural and landscape irrigation environments. If a series of soil moisture measurements is required the soil moisture sensors can be connected easily to a datalogger.
Applications
| Watermark soil moisture measuring system | |
|---|---|
| Maximum measuring depth | > 100 centimetre |
| Measuring accuracy | ± 5% |
| Measuring range | 0…2000 hPa |
| Reading accuracy | 0,5% |
| Registration type | Logging |
| Volume of material needed | 30 millilitre |
Measuring the soil moisture suction tension can be done through indirect means with a durable non-salt-sensitive block, equipped with an ‘open’ condenser. The isolation characteristics of this capacitor can be measured. With our equipment it is possible to derive and display the value of the suction.

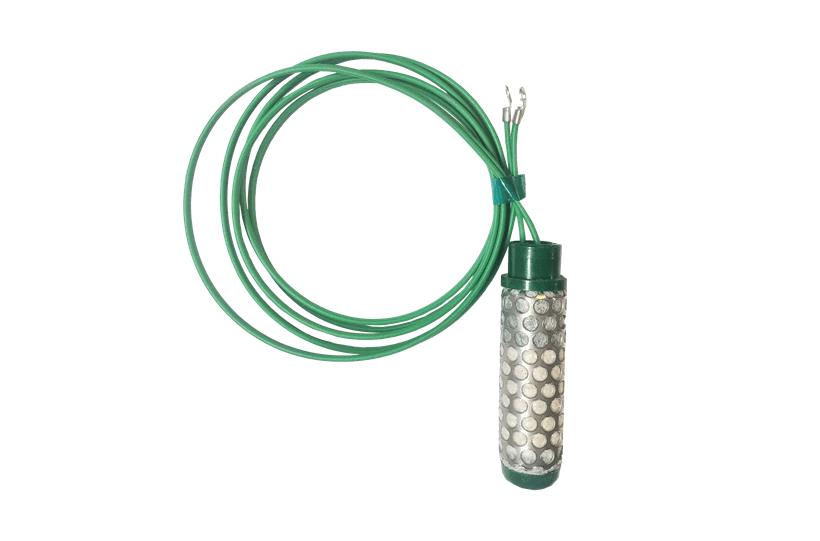

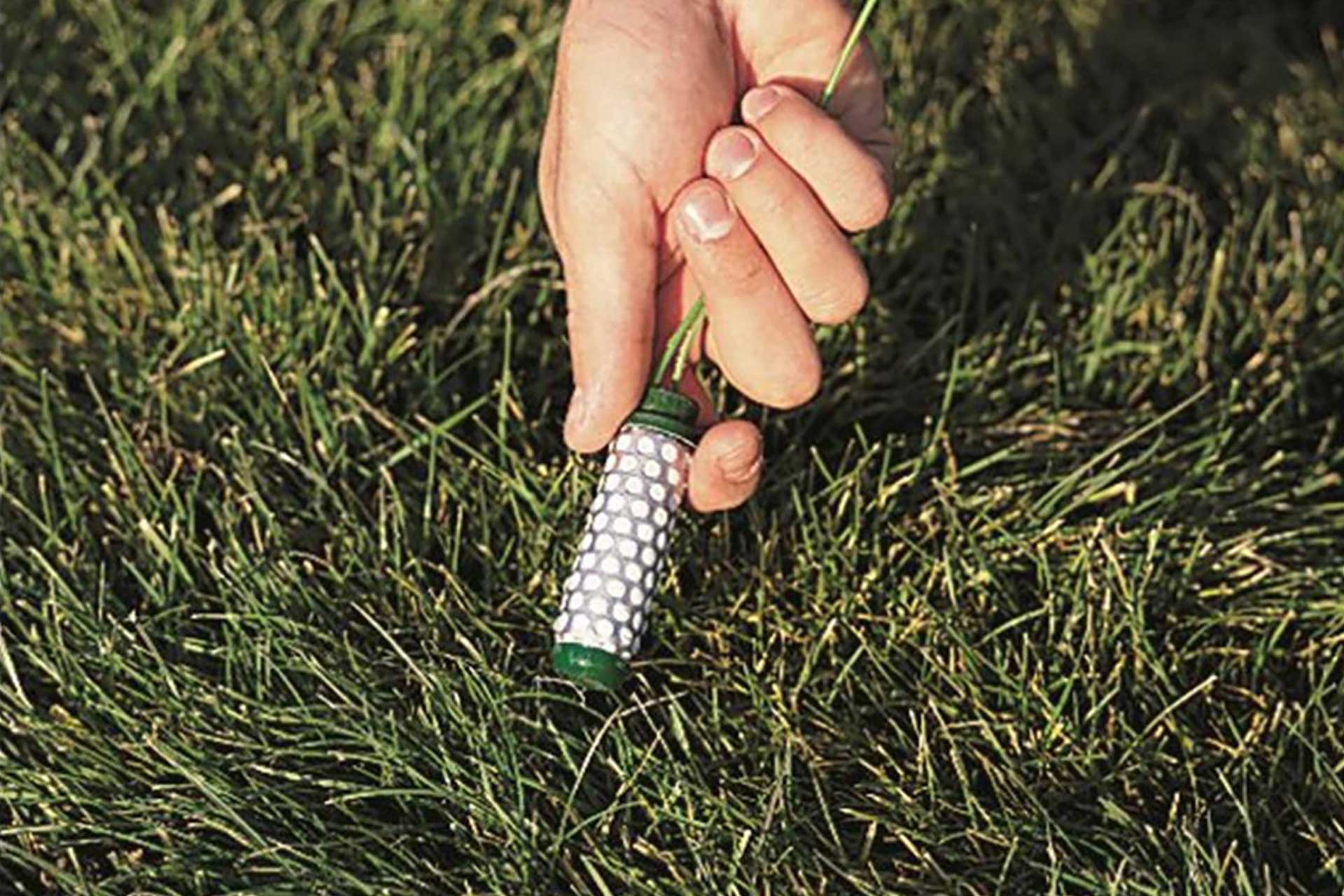

The inexpensive and easy to install Watermark soil moisture sensor is a granular matrix soil moisture sensor to measure soil moisture tension between soil particles. This is relevant for plant growth and soil stability.
Watermark sensors can be used as an economical and maintenance-free replacement for tensiometers in most agricultural and landscape irrigation environments. These sensors will not dissolve in the soil, are insensitive to salt and frost resistant.
They monitor the current situation in the soil. An alternating current is applied to a sensor that is sensitive to soil moisture tension. Due to the consistent pore distribution of each sensor, a reasonably accurate measurements will be gained, with a measuring range of 0 – 199 kPa (0 – 199 cbar).
The soil temperature measured can be set in the soil moisture meter (14.27.01) allowing for temperature correction. The electrical resistance is converted by the soil moisture meter into moisture tension in kPa.
Applications
| Watermark soil moisture sensor – 22.4mm | |
|---|---|
| Measuring range | 0-200 kPa (= 0-200 cbar) |
| Length sensor | 88 millimetres |
| Diameter Ø | 22.4 millimetres |
| Cable length | 3 metres |
Measuring the soil moisture suction tension can be done through indirect means with a durable non-salt-sensitive block, equipped with an ‘open’ condenser. The isolation characteristics of this capacitor can be measured. With our equipment it is possible to derive and display the value of the suction.

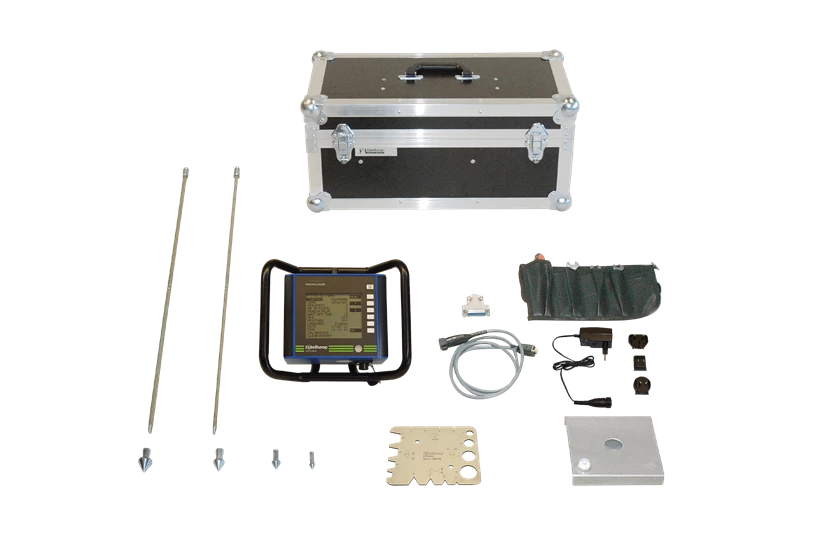

The Royal Eijkelkamp penetrologger is a versatile instrument for in-situ measurement of soil penetration resistance. This electronic penetrometer comes with a built-in datalogger and memory for up to 1500 measurements.
Applications
| Penetrologger with GPS – standard set | |
|---|---|
| Angle of cone | 60 ° |
| Battery life | 8 hours |
| Cone surface range | 1, 2, 3.3, 5 cm² |
| Connection | Screw thread |
| Data output | .txt, other |
| Data plug type | RS232 |
| Data storage capacity | 1500 measurements |
| Data transfer | Cable |
| International Protection Rating | 54 |
| Maximum Applicable pressure | 10000 kPa |
| Maximum measuring depth | 80 cm |
| Maximum operating temperature | 50 ° |
| Measured parameters | Penetration resistance |
| Measuring accuracy | < ± 1% |
| Measuring range | 0…10000 kPa |
| Minimum operating temperature | 0 ° |
| Power supply | Battery |
| Product material | Stainless steel, iron, PVC, other material |
| Programming possibility | Yes |
| Reading accuracy | 0,1% |
| Registration type | Logging |
| Package size | 60 x 30 x 24 cm |
| Weight | 15,5 kg |
Measuring the soil moisture suction tension can be done through indirect means with a durable non-salt-sensitive block, equipped with an ‘open’ condenser. The isolation characteristics of this capacitor can be measured. With our equipment it is possible to derive and display the value of the suction.

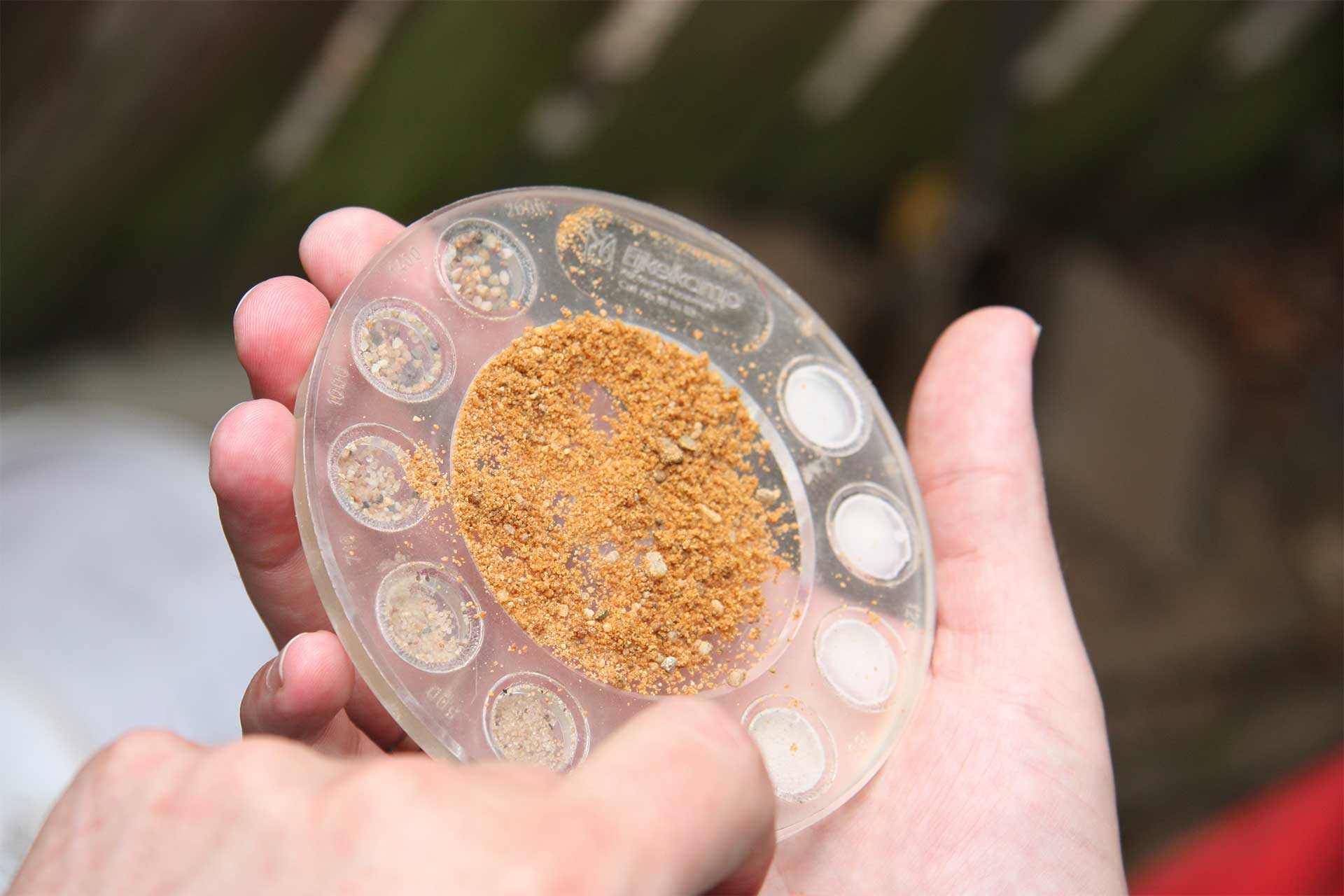

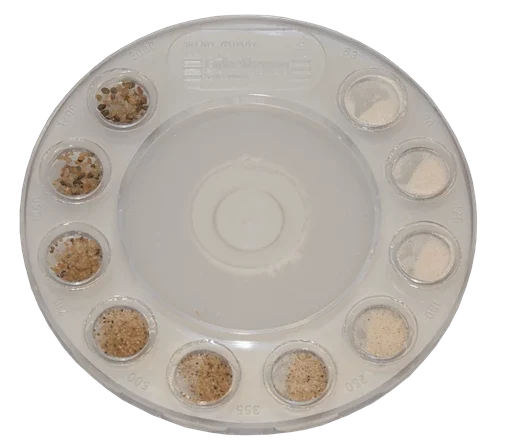

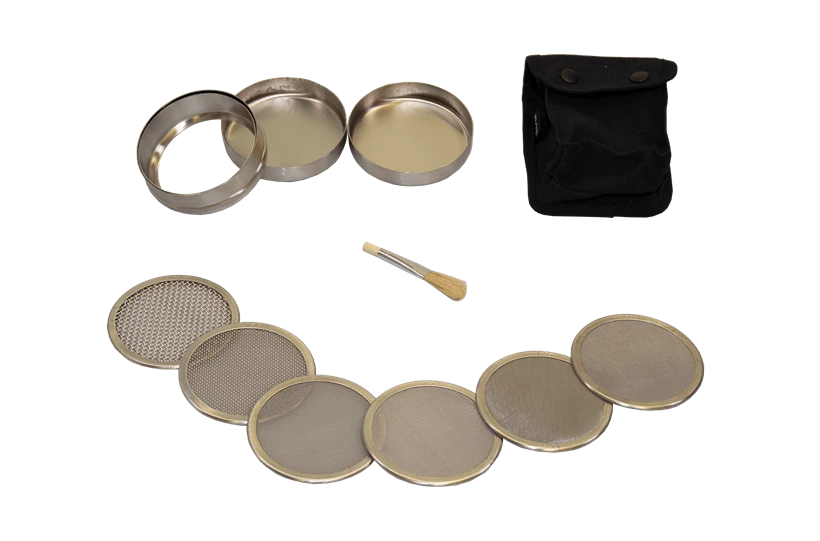

The mini hand sieve set is used to determine the particle size distribution of small quantities of soil. This mini set is pocket-sized and contains several sieve discs: Ø 100 mm, sieve openings: 2.0, 1.0, 0.500, 0.250, 0.125 and 0.063 mm.

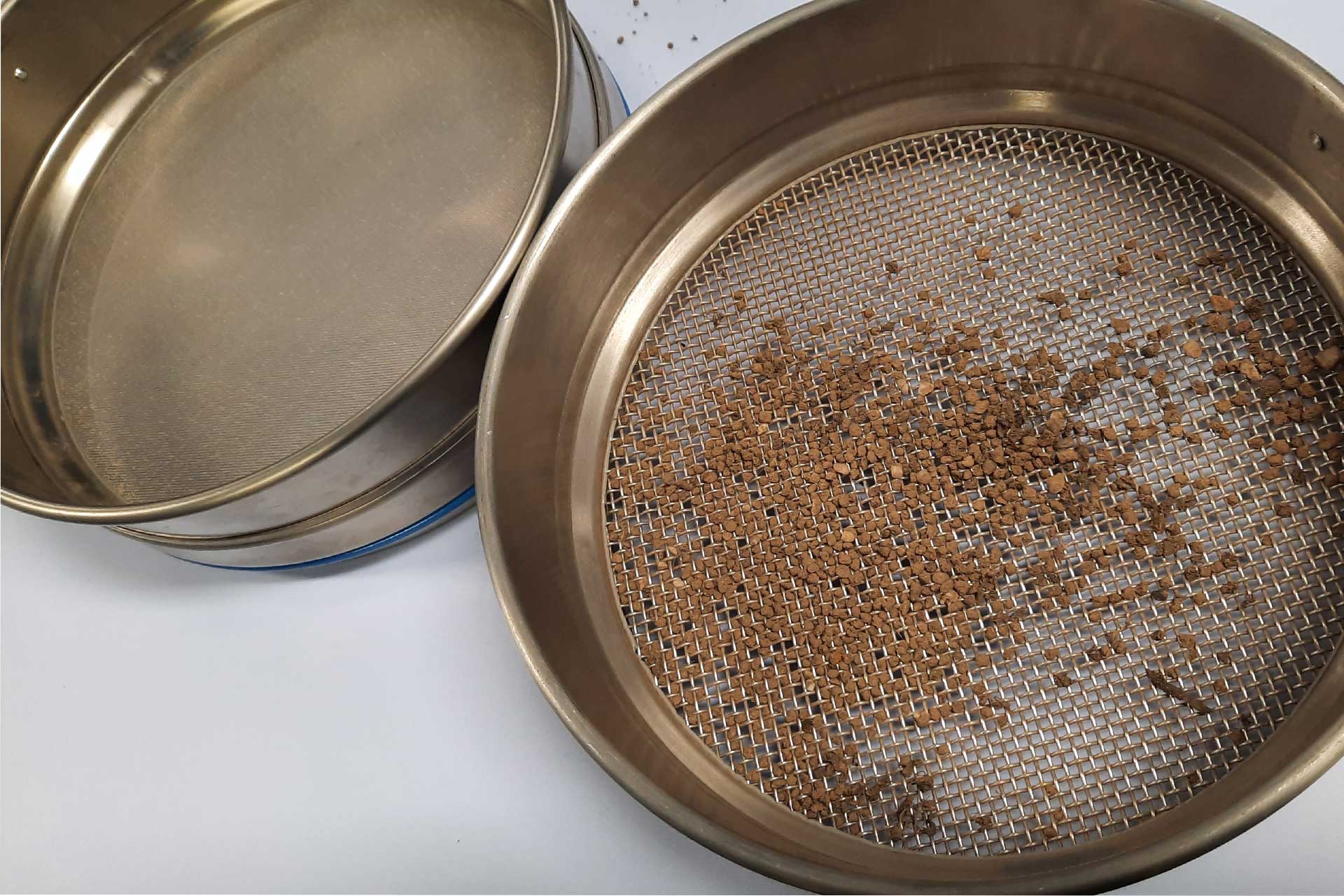

The composition of particles, sizes and types (also called grain size distribution or texture) is one of the most important characteristics of the soil. This influences many properties of the soil such as for instance the ease of tillage, the capillary conductivity of a soil, the available moisture (for plants), the permeability of a soil, compaction, etc.
Furthermore the determination of the particle size is essential for the assessment of the availability of substances for the flora and fauna, the behavior of a substance in the soil and the determination of the quality of the soil
The mini hand sieves set is used for the determination of the particle size distribution of small quantities of soil in the laboratory as well as in the field.
Applications
Set contains
| Mini hand sieves set – pocket size | |
|---|---|
| Height | 40 mm |
| Sieve discs diameter | 100 mm |
| Sieve apertures | 2.0, 1.0, 0.500, 0.250, 0.125 and 0.063 mm |
For the determination of the grain size distribution of soils, various hand sieve sets have been included in our assortment. With these sets it is possible to classify soils according to international standards. This can be applied to wet and dry soils, in the field or in the laboratory, depending on the set.
This sand ruler is a disc made of transparent material with selected samples (standard graduations). The sand ruler is an excellent indicative aid in estimating granular composition. It is possible to classify the sand fraction by using the sand median.
An important quality of a soil (in a soil profile) is the grain size distribution or texture. Agricultural soil properties are greatly determined by the texture of a soil: for example the ease of tillage, the capillary conductivity of a soil, the available moisture, the permeability of a soil, compaction, rooting possibility, etc.
A sand ruler is a disc made of transparent material with standard (specimen) samples. It is an excellent indicative help in determining the particle size distribution or to estimate the granular composition.
Method
By using the sand median, it is possible to classify the sand fraction. A representative proportion of the sample to be tested is rubbed dry with the fingers in the palm of the hand. The sample is then placed in the hollow area in the center of the ruler. The average grain size is now judged by comparing the average grain size of the sample with the specimen in the ruler.
Available variations
With the Beeker sampler, you can take undisturbed sediment samples in a fast and certain way from watery sediment to unconsolidated sand to a depth of 5 metres. Even in watery conditions, the sample will not be lost thanks to the closable cutting head. Using additional extension rods, sampling to greater depths is possible in certain cases. The Beeker sediment core sampler works almost the same way as a Multisampler / piston sampler, but with a lockable head with inflated membrane.
Method
The samples are taken in a transparent tube which allows you to make a clear profile description. The sampler has long sampling tubes of 1 metre. The piston can be operated directly with a rod, so that the sample can be pushed out of the sampler on site into a sample bucket. The apparatus is pushed or hammered into the sludge. To avoid compaction of the layers, a piston is held at a stationary position relative to the sludge. The sample can then be emptied into a clean stainless-steel bucket, or layer by layer in wide necked sample jar. It is not necessary to assemble and disassemble the apparatus with every new sample. This set comes in an aluminium transport case.
Extended set
In addition to the standard set (04.23.SA), an extended set (04.23.SB) is also available for sampling and discharging core samples with a length of 1 metre or 1.5 metres, in bucket or jars and to transport and divide in subsamples with water pressure. This set is suitable for sampling of submerged soils to a depth of 5 metres from very aqueous sediments to unconsolidated sand.
If you have any questions, please contact one of our experts.
Applications
Set contains
| Sand ruler | |
|---|---|
| Number of fractions | 6 or 10 |
| Splash resistant | Yes |
| Material | Transparent |
When estimating granular composition, the sand ruler is an excellent aid. It is used for an indicative determination of the particle size distribution. Our sand rulers are discs of transparent material, provided with selected samples (standard scale).
Granular composition test set, complete with electromagnetic sieve shaker and standard set of sieves for dry and wet sieving. Suitable for the determination of the particle size distribution of soil samples.
Analysis of course soil fractions
Particle size distribution determination with our granular composition test set helps to classify the soils on the basis of international standards. The set contains:
The electromagnetic sieve shaker keeps the sample in continuous motion, for the best possible sieving results and accurate determination of the granular composition. The sieve shaker and the stainless steel mesh sieves (including receivers and lids) are suitable for both wet and dry sieving.
Applications
The granular composition test set is used to analyse coarse fractions of soil samples. To perform a complete analysis or the grain-size of soil samples, the hydrometer set, for smaller fractions, is needed as well.
| Granular composition test set | |
|---|---|
| Measuring range | 0,063 micron – 8 mm |
| Sample specification | disturbed |
| Sieves diameter | 200 mm |
| Sieves height | 50 mm |
| Sieve openings | 0,063 mm, 0,090 mm, 0,125 mm, 0,180 mm, 0,250 mm, 0,355 mm, 0,500 mm, 0,710 mm, 1,0 mm, 2,0 mm, 4,00 mm, 8 mm |
| Power supply | line voltage |
| Voltage | 240V 50Hz |
| Package size | 65 x 65 x 70 cm |
| Weight | 59 kg |
Determination of the particle size provides insight into the behaviour of a substance in the soil, and it helps to determine the quality of the soil. Particle size analysis is also important to research if soil provides enough sustenance for both flora and fauna and how easily it can be extracted from the soil. That in turn determines how suitable soil is for a certain use, such as agriculture.
The hydrometer method is an accurate way to determine the particle size distribution in a soil sample. This kit is a complete set to analyse the grain-size of of the smallest fractions in soil samples.
With the hydrometer method, a sample is first cleaned of organic matter. It is then weighed and dried, suspended in water, and sieved.
The solution that passes through the sieve is transferred to a measuring cylinder with water. Hydrometer readings are then taken at regular intervals. These hydrometer readings, combined with sedimentation time, are used to determine the grain sizes according to the Stoke’s Law.

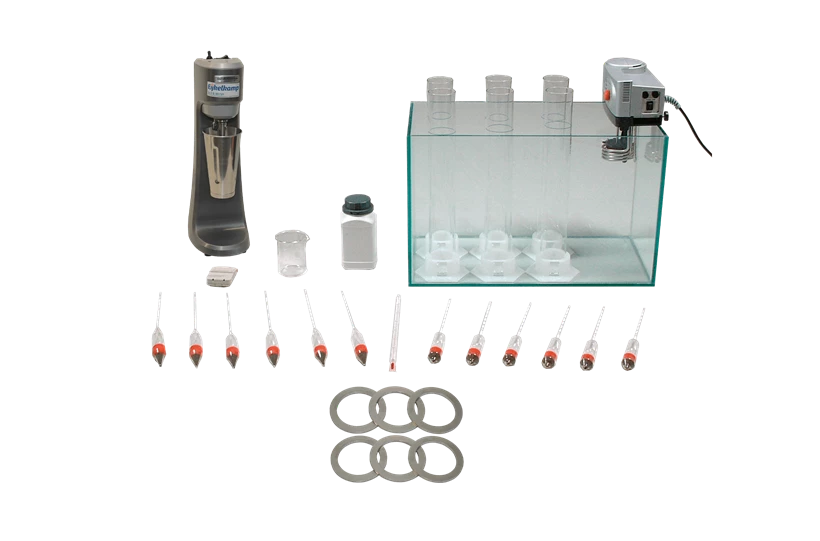

The hydrometer kit contains:
A number of hydrometers
Sedimentation cylinders
Thermometer
Glass container
Heating element with thermostat and stirrer
Soil stirrer
Various accessories
The hydrometer set is used to analyse smaller fractions of soil samples. To perform a complete analysis of the grain-size of soil samples, the granular composition test set is required for the analysis of coarse fractions and a pipette apparatus for fractions smaller than 38 μm.
| Hydrometer kit | |
|---|---|
| Maximum number of samples | 6 |
| Measuring range | 0.995 – 1.035 g/ml and -5 – 60 g/l |
| Reading accuracy | 1 g/l |
| Sample specification | disturbed |
| Voltage | 230 volt |
| Package size | 120 x 80 x 64 cm |
| Weight | 59 kg |
Determination of the particle size provides insight into the behaviour of a substance in the soil, and it helps to determine the quality of the soil. Particle size analysis is also important to research if soil provides enough sustenance for both flora and fauna and how easily it can be extracted from the soil. That in turn determines how suitable soil is for a certain use, such as agriculture.

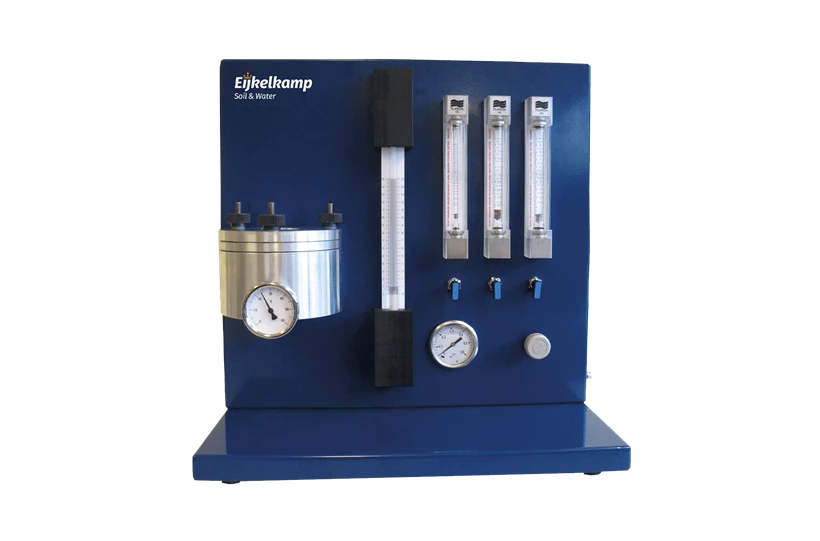

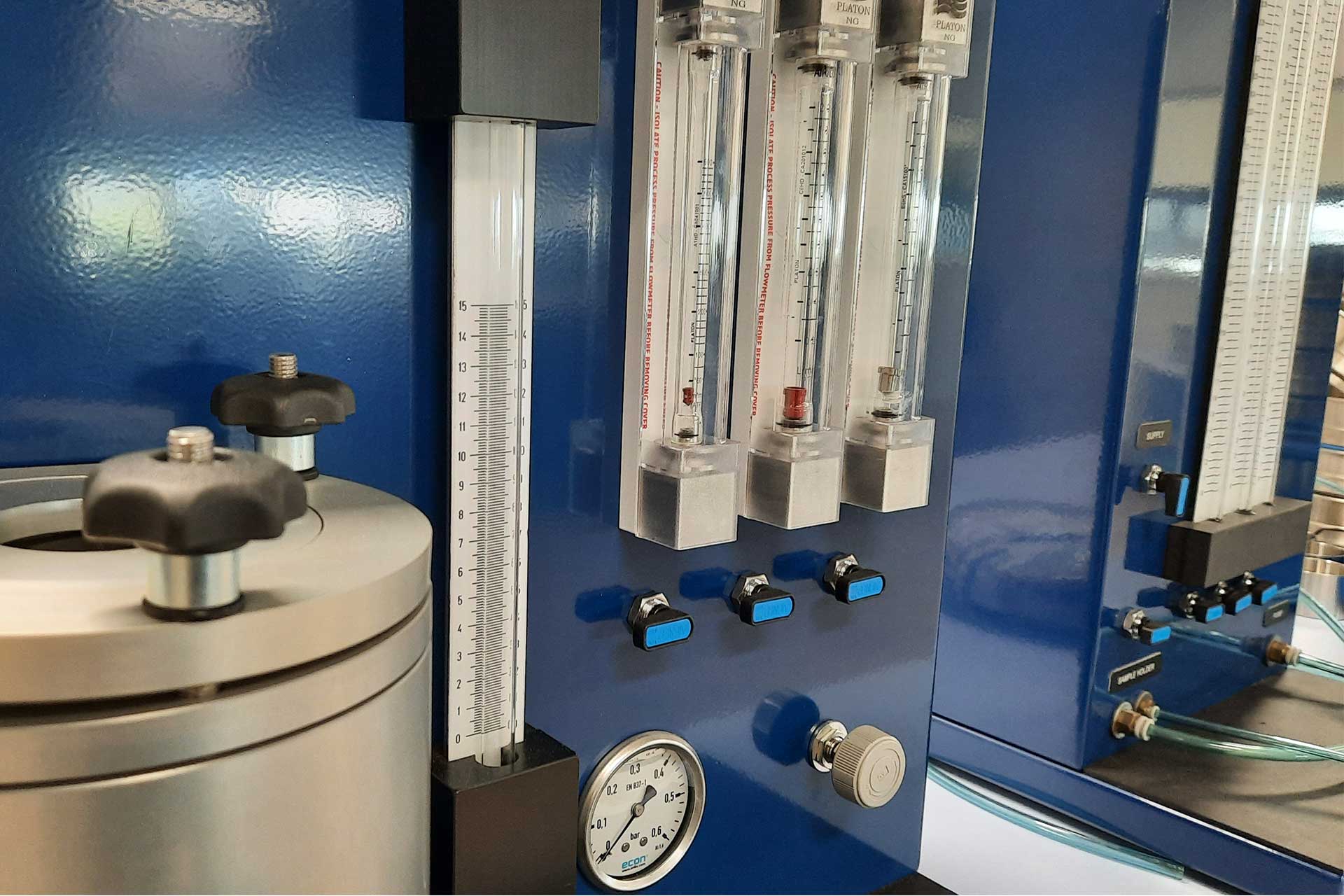

Air permeameter to measure and register the air permeability of soil and soil samples in the laboratory. Complete instrument with 3 flow meters for laboratory measurements, including exchangeable sample holder and pressure regulator.
Air permeability is the property of the soil pore system that allows air to flow through. The air permeameter apparatus measures this permeability, or conductance, of an (undisturbed) soil sample. Suitable for sample sizes Ø 53×50 h 51 mm, Ø 0x56 h 40.5 mm, and Ø 103×100 h 30 mm.
Applications
User groups
The apparatus was developed in cooperation with Christian Albrechts University Kiel in Germany, a leading institution in soil compaction research. Read the interview with Prof. Horn of Kiel University for more information.
| Air permeameter | |
|---|---|
| Sample pressure scale | Range: 15 hPa / cmH2O | Accuracy: 0.1 hPa / cmH2O – scale zero mechanism |
| Dimensions | 53 x 28 x 51 cm |
| Weight | approx. 18 kg |
| More specifications | Please see spec sheet below |
Soil air permeability is one of the most important parameters for the aeration in agricultural soils. It has a significant effect on plant growth and crop production. Both air and water are essential for plant growth, and air permeability determines in large part how much oxygen the plant roots have access to.
Complete set for the pF determination of soil samples. Measures the full soil retention curve, pF 0 – 4.2 (0 – 15 bar). Includes the sandbox, the sand/kaolin box and membrane apparatus, with a soil sample ring kit for taking undisturbed samples.
With the hydrometer method, a sample is first cleaned of organic matter. It is then weighed and dried, suspended in water, and sieved.
The solution that passes through the sieve is transferred to a measuring cylinder with water. Hydrometer readings are then taken at regular intervals. These hydrometer readings, combined with sedimentation time, are used to determine the grain sizes according to the Stoke’s Law.
The hydrometer kit contains:
A number of hydrometers
Sedimentation cylinders
Thermometer
Glass container
Heating element with thermostat and stirrer
Soil stirrer
Various accessories
The hydrometer set is used to analyse smaller fractions of soil samples. To perform a complete analysis of the grain-size of soil samples, the granular composition test set is required for the analysis of coarse fractions and a pipette apparatus for fractions smaller than 38 μm.
| Set for pF determination | |
|---|---|
| Maximum number of samples | 40+ |
| Measured parameters | pF |
| Measuring range | 0 – 2.0 pF |
| Power supply | line voltage |
| Reading accuracy | 0.01 bar |
| Sample specification | undisturbed |
| Sample stored in | ring |
| Package size | 1 pallet of 120 x 80 x 125 cm, 141 kg and 1 pallet of 146 x 62 x 110 cm, 209 kg |
| Voltage | 110 – 240VAC |
The PF curve shows the relationship between the soil’s moisture contents and suction. These moisture contents vary with the same suction and differ per type of soil. With the right equipment, the pF curve can be determined for each type of soil, which clearly shows the availability of water for that type of soil. We offer three laboratory devices to make a complete pF determination.

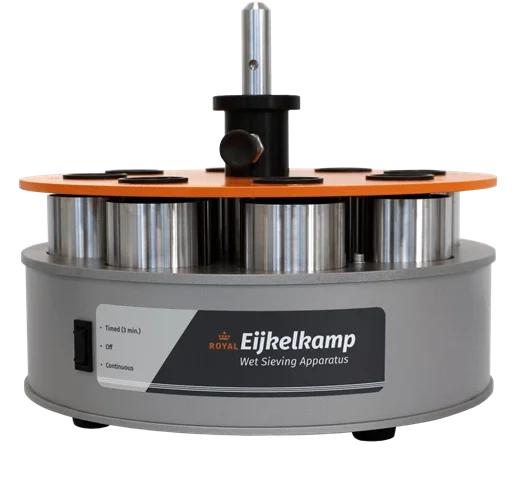

Complete set for the wet sieving method, to determine the aggregate stability of soil. This provides valuable insights into the sensitivity of soils to water and wind erosion.
Air permeability is the property of the soil pore system that allows air to flow through. The air permeameter apparatus measures this permeability, or conductance, of an (undisturbed) soil sample. Suitable for sample sizes Ø 53×50 h 51 mm, Ø 0x56 h 40.5 mm, and Ø 103×100 h 30 mm.
Applications
User groups
The apparatus was developed in cooperation with Christian Albrechts University Kiel in Germany, a leading institution in soil compaction research. Read the interview with Prof. Horn of Kiel University for more information.
| Wet sieving apparatus | |
|---|---|
| Maximum number of samples | 8 |
| Measured parameters | Aggregate stability |
| Measuring range | 0 – 100% |
| Reading accuracy | Depending on weighing equipment |
| Sample specification | disturbed |
| Voltage | 110 – 240VAC 50/60Hz |
Soil structure is largely determined by the formation and presence of soil aggregates. These aggregates can disintegrate due to mechanical and physico-chemical forces and lead to pore clogging and infiltration reduction, resulting in water erosion and/or spraying. The ‘wet sieving method’ is the method to investigate aggregate stability against water erosion.
Air pycnometer according to Langer, complete set including a calibration block. The apparatus is suited for sample rings with a maximum diameter of 53 or 60 mm (max. height 51 resp. 40 mm) and has a measuring range of 0-115 cm3.
The vacuum air pycnometer has been designed to determine the volume and density of solid material, such as soil samples. It can be applied in every field where it’s important to calculate a specific weight, such as soil research, powder- and granulate investigations for the pharmaceutic industry, road building, brick factories, and the food industry (coffee, leguminous plants, etc.). The apparatus is especially useful to measure the volumes of irregularly shaped objects.
The principle
An under pressure is created in the vacuum bell that the object to be measured is placed in. Depending on the gas volume present in the bell, more or less air will be extracted. The quantity of the air present is independent of the volume taken by the object to be measured. After the under pressure has stabilised, the volume of the object can be read from the calibrated scale.
Remarks
Applications
The pycnometer can be applied wherever knowing a specific weight is desired:
Limitation: Temperature variations influence the measurements (can be prevented by climate control in the laboratory).
| Air pycnometer | |
|---|---|
| Maximum number of samples | 1 |
| Measuring range | 0 – 115 cm3 |
| Sample specification | Undisturbed |
| Measured parameters | Porosity and density |
| Reading accuracy | 1 cm3 |
| Sample stored in | Ring |
| Package size | 101 x 53 x 50 cm |
| Weight | 13.6 kg |
The volume and density of soil matters a great deal for both forestry and agriculture as well as soil and water management studies. Soil generally contains solid mass, humidity and air, and the ratio of all different components defines in large part if the soil is suitable for its intended use.

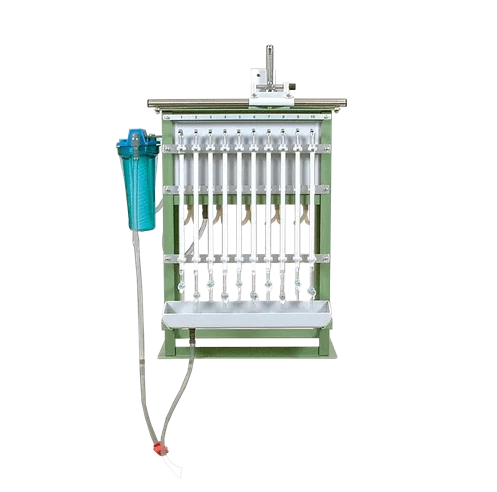

The permeameter is a laboratory tool to measure the saturated permeability, or K-factor, of soil samples. It’s available in several variations: with an open or closed system, suitable for 5, 10 or 25 samples, and for use with soil sample rings with an external diameter of 53 or 60 mm.
Air permeability is the property of the soil pore system that allows air to flow through. The air permeameter apparatus measures this permeability, or conductance, of an (undisturbed) soil sample. Suitable for sample sizes Ø 53×50 h 51 mm, Ø 0x56 h 40.5 mm, and Ø 103×100 h 30 mm.
Applications
User groups
The apparatus was developed in cooperation with Christian Albrechts University Kiel in Germany, a leading institution in soil compaction research. Read the interview with Prof. Horn of Kiel University for more information.
| Wet sieving apparatus | |
|---|---|
| Maximum number of samples | 8 |
| Measured parameters | Aggregate stability |
| Measuring range | 0 – 100% |
| Reading accuracy | Depending on weighing equipment |
| Sample specification | disturbed |
| Voltage | 110 – 240VAC 50/60Hz |
Determination of water permeability, or hydraulic conductivity, is important for agricultural as well as for environmental soil research. The permeability factor, or K-factor, serves as an indication to base the designs of irrigation- and drainage systems on. It’s also of great importance with respect to the extent of the spreading of possible pollution.

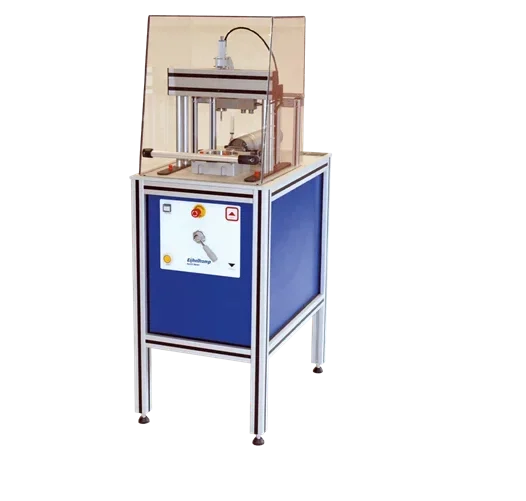

The compression and shear test apparatus measures both the compression and shear resistance of an undisturbed soil sample.
The vacuum air pycnometer has been designed to determine the volume and density of solid material, such as soil samples. It can be applied in every field where it’s important to calculate a specific weight, such as soil research, powder- and granulate investigations for the pharmaceutic industry, road building, brick factories, and the food industry (coffee, leguminous plants, etc.). The apparatus is especially useful to measure the volumes of irregularly shaped objects.
The principle
An under pressure is created in the vacuum bell that the object to be measured is placed in. Depending on the gas volume present in the bell, more or less air will be extracted. The quantity of the air present is independent of the volume taken by the object to be measured. After the under pressure has stabilised, the volume of the object can be read from the calibrated scale.
Remarks
Applications
The pycnometer can be applied wherever knowing a specific weight is desired:
Limitation: Temperature variations influence the measurements (can be prevented by climate control in the laboratory).
| Shear and compression test apparatus | |
|---|---|
| Stress vertical | 0-600 kPa |
| Stress horizontal | 0-400 kPa |
| Response speed | <10 sec. @1% end value (adaptable by PID controller parameters) |
| Soil moisture | -1000…+1000 hPa |
| Compression | 0-30 mm |
| Pressure-in max. | 0.7 Mpa / 7 bar |
| Force max. | 5 kN |
| Stress out max. | 600 kPa |
| Temperature / humidity | 15-35 ºC / 20-80% RH (non condensing) |
| Dimensions | 55 x 75 x 135 cm |
Compression and shear stress tests measure a soil’s resistance to deformation when it’s submitted to shear or compression. Altered soil functions, especially the reduced hydraulic conductivities and impeded aeration, could decrease crop growth and productivity as well as the filtering and buffering capacity of soils. Testing shear and compression strength offers valuable insight for soil use.

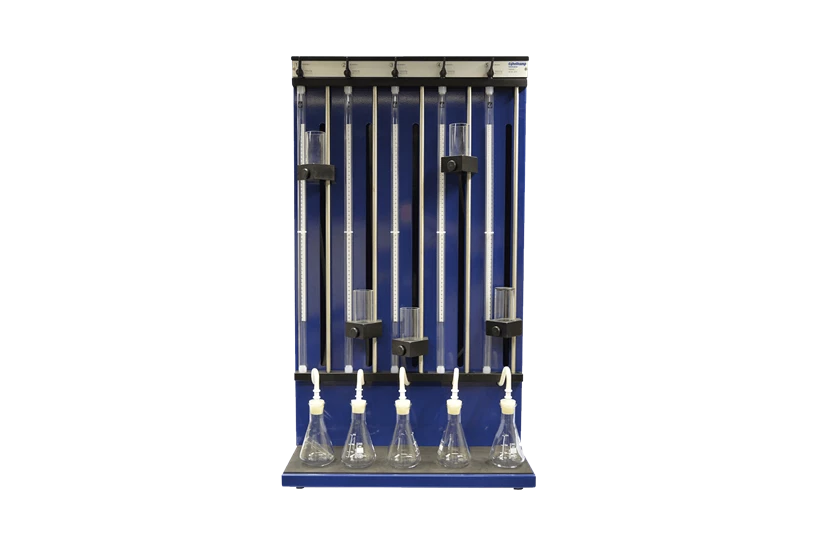

The calcimeter measures the amount of calcium carbonate, or lime contents, in the soil. This is an important indication of the quality of the soil. Measure the carbonate content of a soil sample with the Royal Eijkelkamp calcimeter, created for the simultaneous research of 5 samples according to NEN-ISO 10693. Complete with Erlenmeyer flasks (10 pieces) and test tubes (160 pieces).
Air permeability is the property of the soil pore system that allows air to flow through. The air permeameter apparatus measures this permeability, or conductance, of an (undisturbed) soil sample. Suitable for sample sizes Ø 53×50 h 51 mm, Ø 0x56 h 40.5 mm, and Ø 103×100 h 30 mm.
Applications
User groups
The apparatus was developed in cooperation with Christian Albrechts University Kiel in Germany, a leading institution in soil compaction research. Read the interview with Prof. Horn of Kiel University for more information.
| Calcimeter | |
|---|---|
| Maximum number of samples | 5 |
| Sample specification | Disturbed |
| Measuring range | 0 – > 200 g/kg |
| Measured parameters | Carbonate content |
| Reading accuracy | 1 g/kg |
| Weight | 30 kg |
| Package size | 146 x 62 x 59 cm |
The calcium carbonate content indicates the soil’s acidity (pH). This determines in large part the quality of the soil, and its fertility. To determine the carbonate content, Royal Eijkelkamp offers a calcimeter that works in accordance with the method of Scheibler. It was developed together with Dutch research institutes and meets the standards of NEN 5757 and DIN 19682 and 19684.

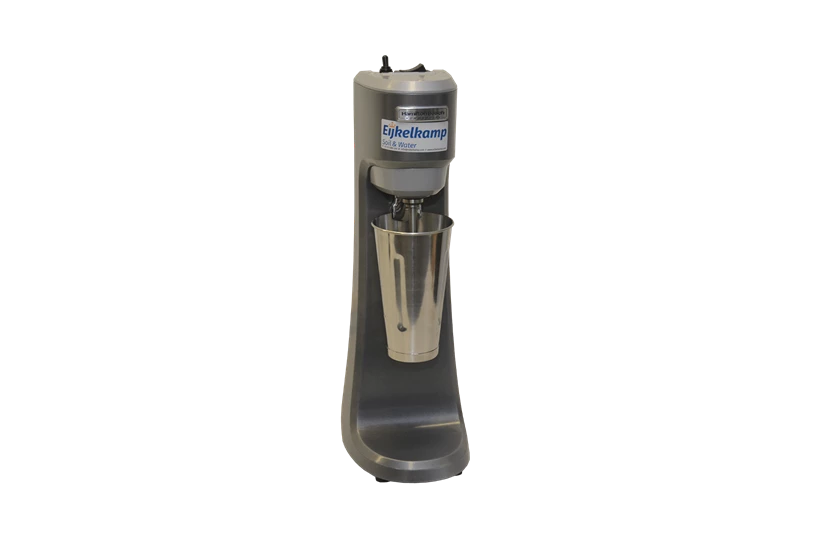

Soil stirrer to prepare soil samples for analysis in the lab. The number of revolutions can be adjusted to 10000, 14000 or 17000 rotations per minute. Includes a 1 litre beaker.
Soil stirring device, suitable for the mixing of soil/water solutions for analysis in the lab.
The precision engine is placed in a rubber support, which helps to reduce noise and vibrations to a minimum. The soil stirring apparatus uses an electrically powered four-part blade, and is provided with a mixing beaker with a capacity of 1 litre. Additional mixing beakers can be obtained separately.
Note that the mixer only works when the cup clicks the switch in the guide system.
| Soil stirrer | |
|---|---|
| Cup volume | 1 litre |
| Voltage | 220, 230, 240V – 50/60Hz |
| Power | 300 Watt – (1/3 HP) |
| Speed | 3 speeds: 10.000, 14.000 or 17.000 rpm |
| Dimensions | 165 x 171 x 520 mm |
| Weight | 6.4 kg |

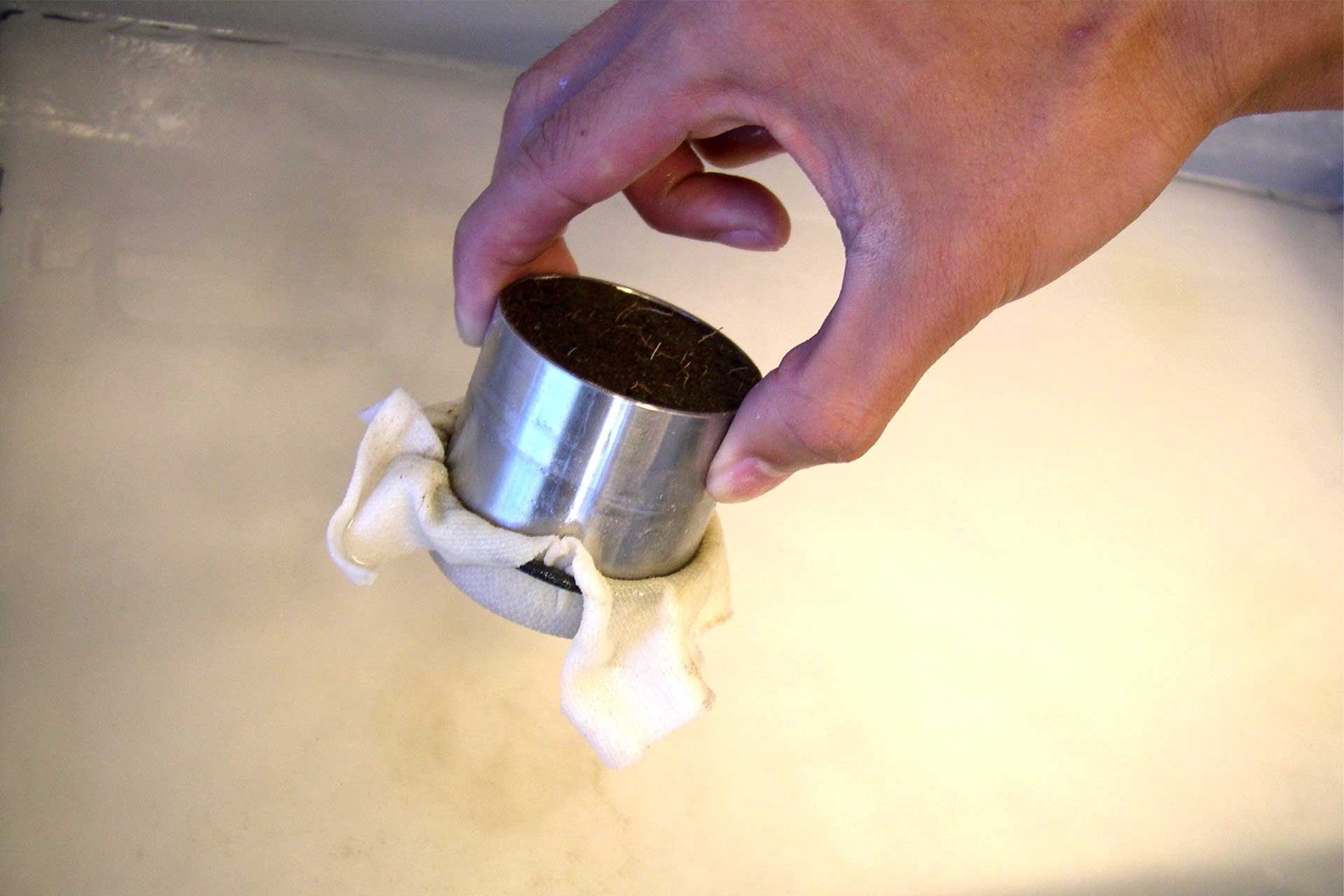

Prior to analysis in the lab, some soil samples will have to be treated in a certain way to ensure accurate measurements. Several quality instruments are available, both for the mixing of soilwater solutions and pulverisation of materials.

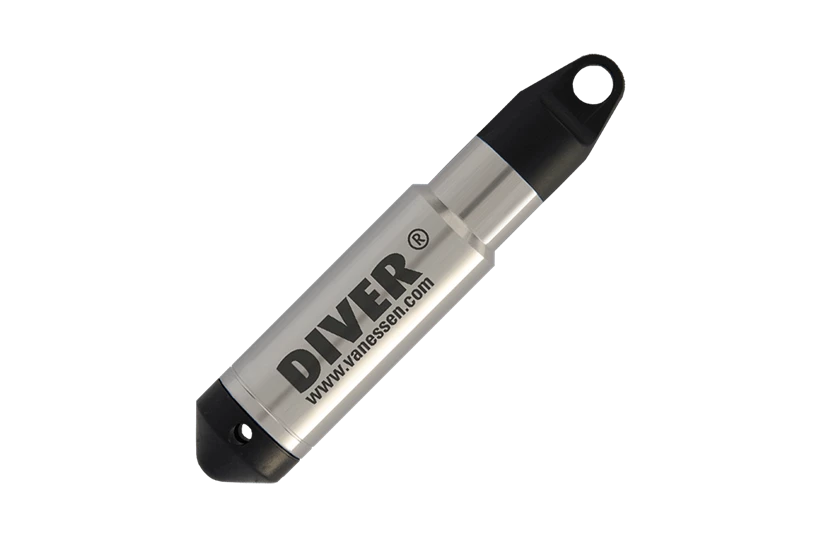

The TD-Diver is acknowledged as the most reliable instrument for the autonomous measuring and recording of groundwater level and temperature. It’s available in the following pressure ranges: 10 m, 20 m, 50 m and 100 m.
The TD-Diver is a compact groundwater monitoring instrument for the continuous and autonomous measuring of level and temperature in groundwater, surface water, and industrial waters. This model succeeds the mini-Diver and offers a completely new design, which combines over 75 years of groundwater monitoring experience with the latest technology available in the market today.
The instrument samples pressure and temperature at fixed length intervals and stores these values in fixed length or continuous memory. For each measurement, the TD-Diver registers the date and time, groundwater level, and temperature. The data collected can be used to manage water resources, estimate hydraulic conductivity and other aquifer conditions.
Features
This easy-to-use datalogger features state-of-the-art electronics and a robust high-precision pressure sensor for long-term accuracy. The absolute pressure sensor requires minimal maintenance and re-calibration.
The datalogger is housed in a stainless steel cylindrical casing, with a suspension eye at the top. The suspension eye can be unscrewed and is designed to install the Diver into the monitoring well and protect the optical connector. The electronics, sensors and battery are maintenance-free and installed into the casing. The Diver is not designed to be opened.
Its internal memory of 72,000 measurements per parameter provides sufficient capacity to perform one measurement every 15 minutes for over 2 years. Connect the diver to a modem to transmit collected data directly from the field to your data centre.
Special software is available for the Divers. Download via WeTransfer.
Available variations
Applications
| TD-Diver | |
|---|---|
| Battery life | 8-10 years |
| Data storage capacity | 72,000 measurements (with 72,000 backup) continuous and fixed length memory |
| Operating temperature | 0℃ – 50℃ |
| Product material | Stainless steel housing, ceramic pressure sensor |
| Sample interval | 0.5 seconds to 99 hours |
| Temperature compensation | 0 – 40°C |
| Weight | 104 g |
Water sensors are a convenient way to keep an eye on several water qualities without having to take frequent measurements. Simply install the device and let it collect the relevant data. Our instruments measure water level, temperature, electrical conductivity, and discharge.

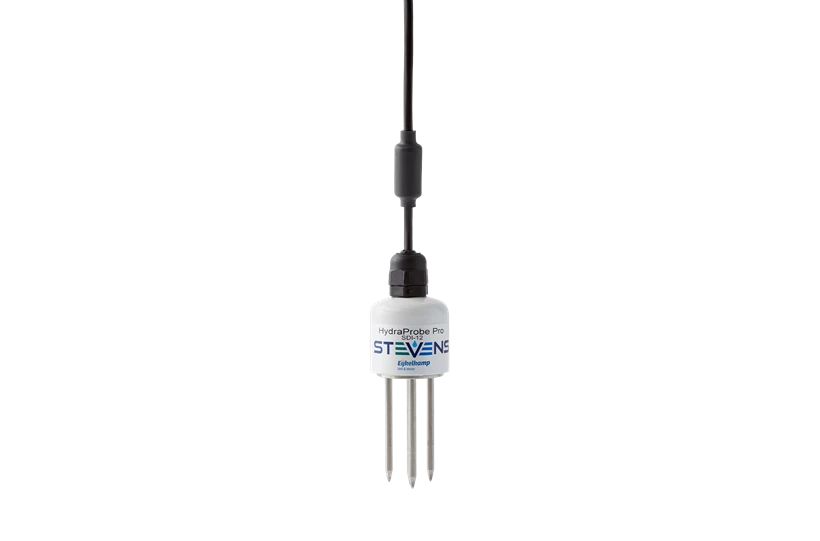

Soil moisture sensor SDI-12 Pro, with cable in varying lengths for fixed installation.
The HydraProbe SDI-12 Pro is a rugged soil moisture sensor for long term monitoring that measures moisture, temperature and salinity. It can measure soil moisture sensor in all soils, in the range from completely dry to fully saturated, with an accuracy of accuracy +/- 0.01 WFV.
The temperature range is -10°C to 60°C, with a measurement accuracy 0.3°C. The information can be read out with a data logger.
Variations
If you want to measure both soil moisture, temperature, and salinity, the HydraProbe Pro is your best choice. For moisture and temperature only the HydraProbe Standard can be used.
The following variations in cable length are available:
14.28.11 HydraProbe SDI-12 Pro, 7.5 metre cable
14.28.12 HydraProbe SDI-12 Pro, 15 metre cable
14.28.13 HydraProbe SDI-12 Pro, 30 metre cable
Read-out unit
To get immediate readings of the current measurement conditions from your HydraProbe sensor, you can opt for the complete set with read-out unit. The handheld read-out unit reads data from HydraProbes and displays the volumetric moisture content as a percentage. It features a large display window in a robust weather resistant casing.
14.28.SB HydraProbe Pro with SDI-12 read-out unit and 7.5 metre cable
| HydraProbe SDI-12 Pro | |
|---|---|
| Measuring principle | coaxial impedance dielectric reflectometry |
| Length measuring pins | 57 mm |
| Communication protocol | SDI-12 Standard v. 1.2 |
| Cable | 3-wire: power, ground, data |
| Baud rate | 1200 |
| Addressing | Serial; allows multiple sensors to be connected to any SDI-12 data logger via a single cable |
| Power supply | 9-20 VDC |
| Power consumption | <1 mA idle / 10 mA active |
| Additional specifications | Please see the brochure for all specifications |
Prior to analysis in the lab, some soil samples will have to be treated in a certain way to ensure accurate measurements. Several quality instruments are available, both for the mixing of soilwater solutions and pulverisation of materials.

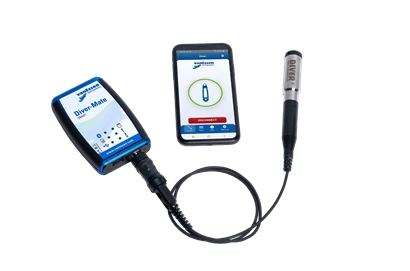

Diver-Mate reading unit for reading out Divers via a MDC cable (not included).
Equipped with Bluetooth and a 16 GB memory SD-card suitable for reading out thousands of Divers (full memory).
Comes complete with a signal quality control cable and USB-C cable for connection to a laptop. The built-in battery is rechargeable via USB-C.
Note: Diver, MDC cable and laptop not included.
While a Diver collects the data, you can’t read it out straight from the Diver. We have several read-out units available to help view the data collected by your dataloggers.

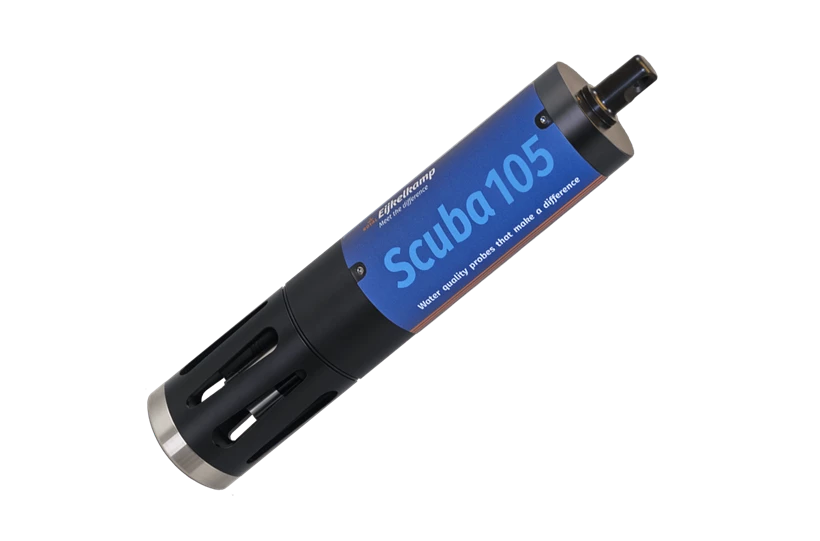

The Royal Eijkelkamp Scuba 105 water quality probe measures 105 mm in diameter and can hold up to 13 sensors – that’s more than any other multiparameter probe in the industry. It has a built-in central cleaning system for carefree longterm monitoring.
The HydraProbe SDI-12 Pro is a rugged soil moisture sensor for long term monitoring that measures moisture, temperature and salinity. It can measure soil moisture sensor in all soils, in the range from completely dry to fully saturated, with an accuracy of accuracy +/- 0.01 WFV.
The temperature range is -10°C to 60°C, with a measurement accuracy 0.3°C. The information can be read out with a data logger.
Variations
If you want to measure both soil moisture, temperature, and salinity, the HydraProbe Pro is your best choice. For moisture and temperature only the HydraProbe Standard can be used.
The following variations in cable length are available:
14.28.11 HydraProbe SDI-12 Pro, 7.5 metre cable
14.28.12 HydraProbe SDI-12 Pro, 15 metre cable
14.28.13 HydraProbe SDI-12 Pro, 30 metre cable
Read-out unit
To get immediate readings of the current measurement conditions from your HydraProbe sensor, you can opt for the complete set with read-out unit. The handheld read-out unit reads data from HydraProbes and displays the volumetric moisture content as a percentage. It features a large display window in a robust weather resistant casing.
14.28.SB HydraProbe Pro with SDI-12 read-out unit and 7.5 metre cable
| Scuba 105 | |
|---|---|
| Diameter | 105 mm |
| Length/ weight without battery pack | 483 mm / 2812 gr |
| Length/ weight with battery pack | 483 mm / 4536 gr |
| Number of sensors | Up to 13 |
| Battery pack | 6 C |
| Operating temperature | -50 to 50 °C |
| Depth rating | 200 m, max depth for ISE and TDG sensors is 15 meters |
| Communications | RS-232, SDI-12, or Modbus |
| Connection to mobile devices | USB or Bluetooth |
| Sample rate | 1 Hz |
| Data memory | 1,000,000 logged readings |
The Scuba water quality probes are suitable for various applications. They can be used for discrete sampling and profiling, or as self-powered loggers. Connect them to telemetry stations for continuous real-time monitoring and have your water quality data accessible directly via cloud-based software. The Scuba probes can communicate via RS-232, SDI-12 or Modbus.
The Scuba BGA is a floating, solar-powered sensor buoy designed to provide early warning of harmful algal blooms, turbidity and other water contaminants.
The Scuba BGA (for Blue-Green Algae) is designed to monitor water quality, specifically algae, temperature, and turbidity. Real-time insights in these parameters will help to take action in time and prevent larger algae problems. Custom alerts will notify you when levels have gotten too high.
Sensor technology
By continuously monitoring the water, the Scuba BGA eliminates the need for manual water sampling and spot checking. This device uses the fluorescence of the pigments in algae and cyanobacteria (blue-green algae) with this it detects the abundance of organism. Chlorophyll-a, present in all algae and cyanobacteria, is the most commonly used indicator of algal growth. Phycocyanin, typically present in freshwater cyanobacteria, is used as an indicator of blue-green algae. The Scuba BGA uses an excitation wavelength of 420 nm for chlorophyll-a and 575 nm for phycocyanin. The measured peak emission wavelengths are 670 nm and 642 nm, respectively.
Power and data transfer
Thanks to the integrated solar panel, the Scuba BGA is self-powered and can continue to operate for up to a year as long as the water does not freeze. Fully charged, it can function for 2-3 weeks without sunlight. The data collected by the Scuba BGA is sent to a web portal via 4G cellular tehnology. This system automatically switches between three carrier waves to optimise reception. It’s truly an all-in-one system complete with sensors, power supply, data monitoring trackers, and a powerful dashboard. The dashboard also tracks the GPS coordinates of your devices so you’ll always know where it is.
The buoy is suitable for both fresh and salt water and equipped with a built-in sensor wiper, to keep the sensor clean and functional.
Installation of the buoy is easy; simply place it in a waterway, connect it to an anchor (available separately) and it will automatically start collecting data.
The instrument measures the following parameters:
The following options are available for the Scuba BGA
Applications
The Scuba BGA is very suitable for water quality monitoring for
| Scuba BGA | |
|---|---|
| Weight | 3.6 kg | 7.9 lb |
| Diameter | 35 cm | 13.8 in |
| Height | 18 cm | 7.1 in |
| Operating temperature | -50 to 50 °C | -58 to 122 °F |
| Data transmission | Via GPRS (2G/3G/4G) |
| Power supply | Solar panel 4.3 watt |
| Sample rate | 1 Hz |
| Warranty | 2 years |
The presence of blue-green algae is dangerous, so good management is necessary to prevent problems or to identify them in time. For continuous monitoring of algae growth in surface water, there is the Scuba BGA (blue-green algae): a floating buoy powered by solar energy.
Your dedicated partner in providing high-quality laboratory and research equipment. With years of industry experience, we specialize in supplying cutting-edge laboratory instruments, research equipment, and essential lab tools to support scientific discovery, educational advancement, and innovation across various industries.
© 2025 | REIDIUS TECHNOLOGIES | All Rights reserved.
